T 865 Cams T 865 Specifications & Technical Data (2006—2010)

The Cams T 865 is a skid steer loader manufactured by Cams from 2006 to 2010. It has a weight of 3.4 tons and a transport length o…

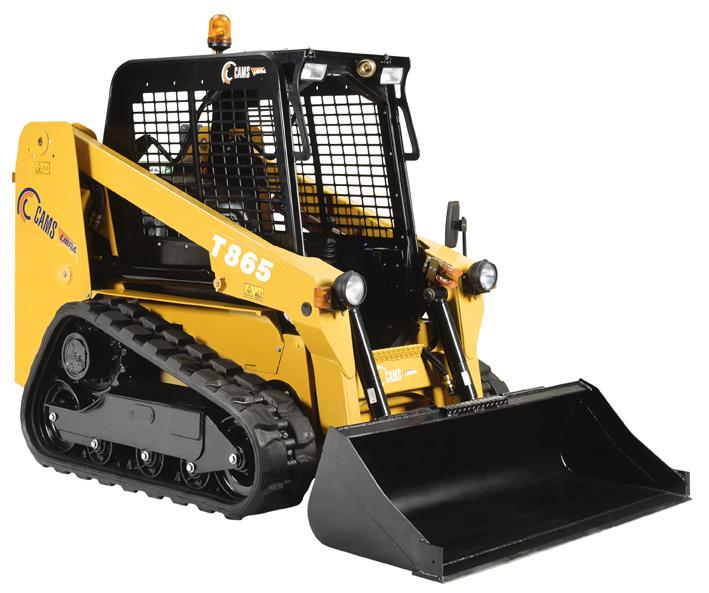

The Cams T 865 is a skid steer loader manufactured by Cams from 2006 to 2010. It has a weight of 3.4 tons and a transport length of 3.24 meters. The bucket capacity is 0.39 cubic meters, with a bucket width of 1.67 meters. The maximum discharge height is 2.28 meters, and it has a transport width of 1.665 meters and a transport height of 1.98 meters. The track width is 320 millimeters.

Skid Steer Loaders Cams T 865

Technical specs - T 865 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.4 t
Track width
320 mm
Bucket width
1.67 m
Bucket capacity
0.39 m³
Transport length
3.24 m
Transport width
1.665 m
Transport height
1.98 m
Travel speed
11.5 km/h
Max. discharge height
2.28 m
Model series
T
Engine manuf.
Kubota
Engine type
V2003T
Engine power
44 kW
Displacement
4 l

More technical details, like: rated operating capacity, standard tyres, driver protection, steering mode, lifting force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry...

More technical details, like: rated operating capacity, standard tyres, driver protection, steering mode, lifting force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, number of cylinders, aspiration, rated speed, engine output - gross, transmission type, drive method, track rollers, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, fuel tank, tipping load, operating capacity, speed - maximum, pump flow, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Cams T 865 FAQ

When was the Cams T 865 manufactured?

The Cams T 865 was manufactured from 2006 to 2010.

How much does the Cams T 865 skid steer loader weigh?

The Cams T 865 skid steer loader weighs 3.4 tons.

What are the transport dimensions of the Cams T 865 skid steer loader?

The Cams T 865 skid steer loader has a transport length of 3.24 meters, a transport width of 1.67 meters, and a transport height of 1.98 meters.

What is the travel speed of the Cams T 865 skid steer loader?

The Cams T 865 skid steer loader has a travel speed of 11.5 km/h.

What is the track width of the Cams T 865 skid steer loader?

The Cams T 865 skid steer loader has a track width of 320 mm.

What is the maximum discharge height of the Cams T 865?

The Cams T 865 has a maximum discharge height of 2.28 meters.

What are the specifications of the primary work tool bucket on the Cams T 865 skid steer loader?

The primary work tool bucket of the Cams T 865 has a capacity of 0.39 cubic meters and a width of 1.67 meters.

How much is a Cams T 865 Skid steer loader (2006u20132010) worth?

The residual value of the Cams T 865 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
