985 Cams 985 Specifications & Technical Data (2014—2024)

The Cams 985 is a skid steer loader manufactured by Cams since 2014. It has a weight of 3.15 tons and a transport length of 3.5 me…

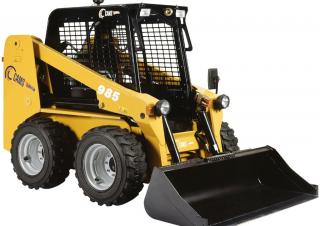

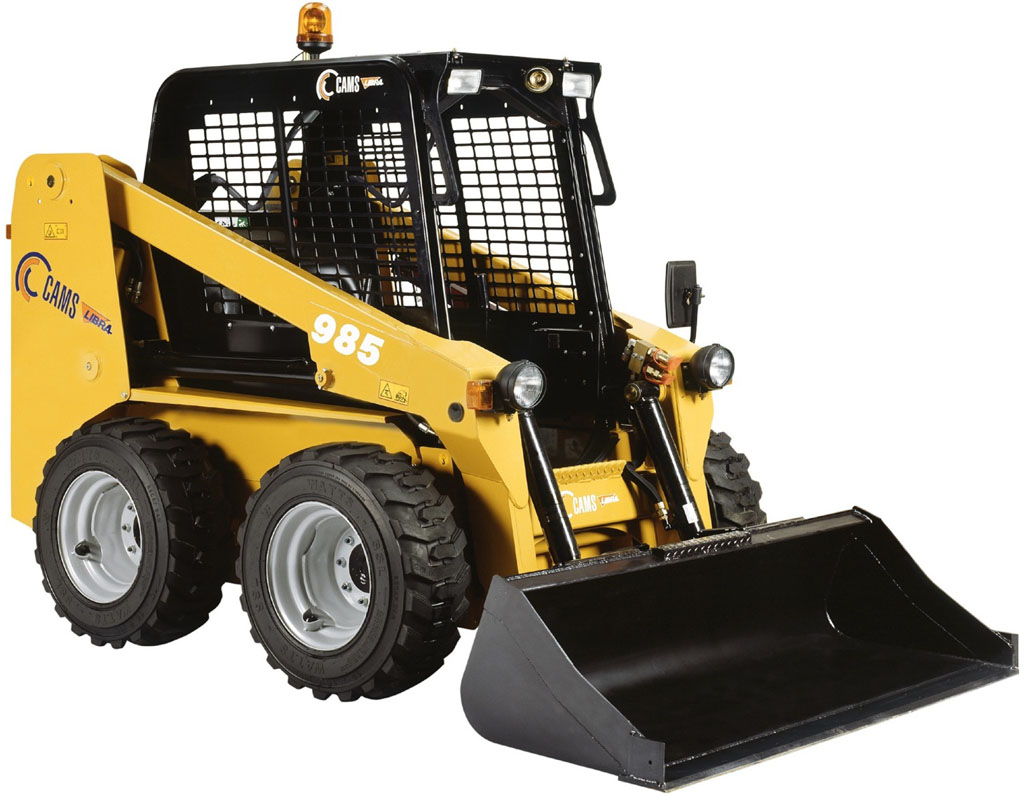

The Cams 985 is a skid steer loader manufactured by Cams since 2014. It has a weight of 3.15 tons and a transport length of 3.5 meters. The bucket capacity is 0.47 cubic meters, with a bucket width of 1.879 meters. The maximum discharge height is 3.073 meters, and it has a travel speed of 16 km/h. The transport width is 1.825 meters, and the transport height is 2.05 meters. The rated operating capacity is 908 kilograms. This construction machine also features a special equipment, a burglar proof system.

Skid Steer Loaders Cams 985

Technical specs - 985 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.15 t
Rated operating capacity
908 kg
Standard tyres
12-16.5
Bucket width
1.879 m
Bucket capacity
0.47 m³
Driver protection
KbR
Steering mode
AL
Transport length
3.5 m
Transport width
1.825 m
Transport height
2.05 m
Travel speed
16 km/h
Max. discharge height
3.073 m
Engine manuf.
Kubota
Engine type
V3307DI-T
Engine power
55.4 kW
Displacement
3.331 l
Revolutions at max torque
2500 rpm
No. of cylinders
4

More technical details, like: track width, lifting force, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, aspiration, rated speed...

More technical details, like: track width, lifting force, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, aspiration, rated speed, engine output - gross, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
Yes

Download datasheets (PDF)

Cams 985 FAQ

When was the Cams 985 skid steer loader manufactured?

The Cams 985 skid steer loader was manufactured from 2014 to 2024.

How much does the Cams 985 skid steer loader weigh?

The Cams 985 skid steer loader weighs 3.15 tons.

What are the transport dimensions of the Cams 985 skid steer loader?

The Cams 985 skid steer loader has a transport length of 3.5 meters, a transport width of 1.83 meters, and a transport height of 2.05 meters.

What is the travel speed of the Cams 985 skid steer loader?

The Cams 985 skid steer loader has a travel speed of 16 km/h.

What is the standard tyre size of the Cams 985 skid steer loader?

The Cams 985 skid steer loader has standard tyres sized 12-16.5.

What is the steering mode of the Cams 985 skid steer loader?

The Cams 985 skid steer loader has an all-wheel steering mode.

What is the material handling capacity of the Cams 985 skid steer loader?

The Cams 985 skid steer loader has a rated operating capacity of 908 kg and a maximum discharge height of 3.07 meters.

What are the bucket specifications of the Cams 985 skid steer loader?

The Cams 985 skid steer loader has a bucket capacity of 0.47 cubic meters and a bucket width of 1.88 meters.

What are the operator safety and support features of the Cams 985 skid steer loader?

The Cams 985 skid steer loader has driver protection in the form of a cabin with ROPS.
