875 Cams 875 Specifications & Technical Data (2024—2026)

Weight: 2.745t – Rated operating capacity: 680kg – Standard tyres: 10-16,5 – Bucket width: 1.727m – Driver protection: KbR – Steering mode: AL

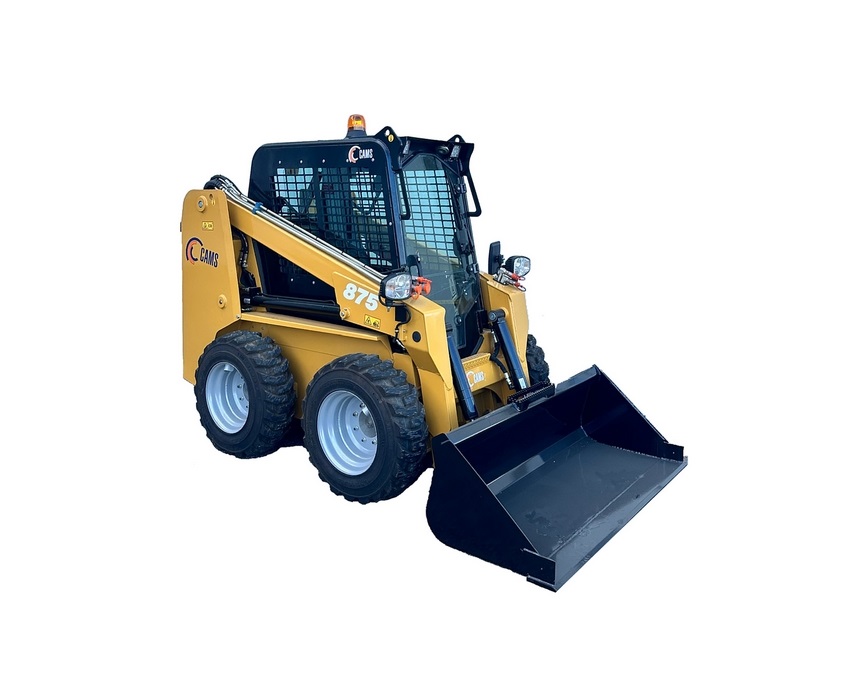

Skid Steer Loaders Cams 875

Technical specs - 875 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.745 t
Rated operating capacity
680 kg
Standard tyres
10-16,5
Bucket width
1.727 m
Driver protection
KbR
Steering mode
AL
Transport length
3.239 m
Transport width
1.635 m
Transport height
1.981 m
Travel speed
11.5 km/h
Max. discharge height
2.281 m
Engine manuf.
Doosan
Engine type
D24 Turbo
Engine power
55.4 kW
Displacement
2.392 l
Revolutions at max torque
2600 rpm
Emission level
V

More technical details, like: track width, bucket capacity, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Cams 875 FAQ

When was the Cams 875 manufactured?

The Cams 875 was first produced in 2024.

How much does the Cams 875 skid steer loader weigh?

The Cams 875 skid steer loader weighs 2.745 tons.

What are the transport dimensions of the Cams 875 skid steer loader?

The Cams 875 skid steer loader has a transport length of 3.239 meters, a transport width of 1.635 meters, and a transport height of 1.981 meters.

What is the travel speed of the Cams 875 skid steer loader?

The Cams 875 skid steer loader has a travel speed of 11.5 km/h.

What are the undercarriage specifications of the Cams 875 skid steer loader?

The Cams 875 skid steer loader is equipped with standard tyres sized 10-16,5.

What is the steering mode of the Cams 875 skid steer loader?

The Cams 875 skid steer loader has all-wheel steering.

What is the material handling capacity of the Cams 875 skid steer loader?

The Cams 875 skid steer loader has a rated operating capacity of 680 kg and a maximum discharge height of 2.281 meters.

What is the bucket width of the Cams 875 skid steer loader?

The bucket width of the Cams 875 skid steer loader is 1.727 meters.

What operator safety and support features does the Cams 875 skid steer loader have?

The Cams 875 skid steer loader features a cabin with ROPS for driver protection.
