635 Cams 635 Specifications & Technical Data (2004—2024)

The Cams 635 is a skid steer loader manufactured by Cams since 2004. It has a weight of 2 tons and a transport length of 2.91 mete…

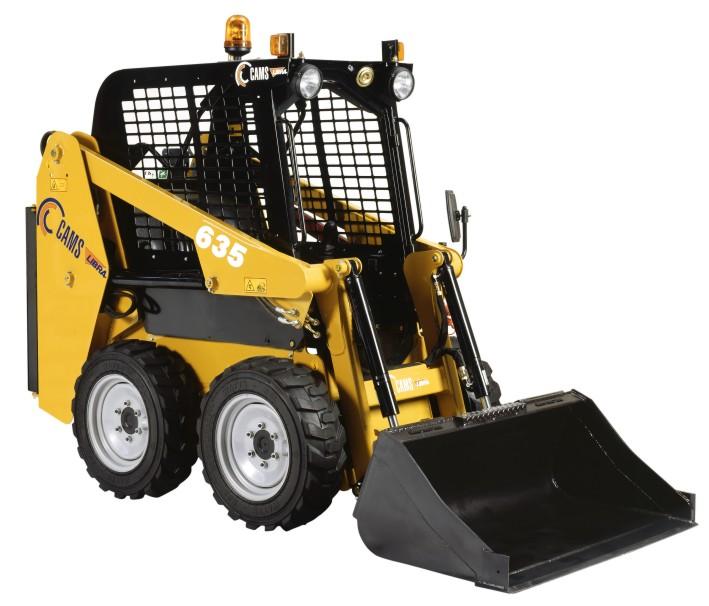

The Cams 635 is a skid steer loader manufactured by Cams since 2004. It has a weight of 2 tons and a transport length of 2.91 meters. The bucket capacity is 0.27 cubic meters, with a bucket width of 1.27 meters. The maximum discharge height is 1.95 meters. The transport width is 1.22 meters, and the transport height is 1.85 meters. The rated operating capacity is 550 kilograms. This construction machine also features a special equipment, which is a burglar proof system.

Skid Steer Loaders Cams 635

Technical specs - 635 Cams

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2 t
Rated operating capacity
550 kg
Standard tyres
27x8.5-15
Bucket width
1.27 m
Bucket capacity
0.27 m³
Driver protection
KbR
Steering mode
AL
Transport length
2.91 m
Transport width
1.22 m
Transport height
1.85 m
Travel speed
10.5 km/h
Max. discharge height
1.95 m
Engine manuf.
Kubota
Engine type
D1703E
Engine power
25.7 kW
Displacement
1.498 l
Revolutions at max torque
2800 rpm
No. of cylinders
3

More technical details, like: track width, lifting force, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
Yes

Download datasheets (PDF)

Cams 635 FAQ

When was the Cams 635 skid steer loader manufactured?

The Cams 635 skid steer loader was manufactured from 2004 to 2024.

How much does the Cams 635 skid steer loader weigh?

The Cams 635 skid steer loader weighs 2 tons.

What are the transport dimensions of the Cams 635 skid steer loader?

The Cams 635 skid steer loader has a transport length of 2.91 meters, a transport width of 1.22 meters, and a transport height of 1.85 meters.

What is the travel speed of the Cams 635 skid steer loader?

The Cams 635 skid steer loader has a travel speed of 10.5 km/h.

What is the standard tyre size of the Cams 635 skid steer loader?

The Cams 635 skid steer loader is equipped with standard tyres sized 27x8.5-15.

What is the steering mode of the Cams 635 skid steer loader?

The Cams 635 skid steer loader has an all-wheel steering mode.

What is the material handling capacity of the Cams 635 skid steer loader?

The Cams 635 skid steer loader has a rated operating capacity of 550 kg and a maximum discharge height of 1.95 meters.

What are the bucket specifications of the Cams 635 skid steer loader?

The Cams 635 skid steer loader has a bucket capacity of 0.27 cubic meters and a bucket width of 1.27 meters.

What operator safety and support features does the Cams 635 skid steer loader have?

The Cams 635 skid steer loader features a cabin with ROPS for driver protection.

How much is a Cams 635 Skid steer loader (2004u20132024) worth?

The residual value of the Cams 635 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
