T870 Bobcat T870 Specifications & Technical Data (2017—2026)

The Bobcat T870 is a skid steer loader manufactured since 2017. It has a weight of 5.329 tons and a transport length of 3.03 meter…

The Bobcat T870 is a skid steer loader manufactured since 2017. It has a weight of 5.329 tons and a transport length of 3.03 meters. The bucket width is 2.13 meters, and it can reach a maximum discharge height of 2.73 meters. With a travel speed of 10.5 km/h, it has a transport width of 2.1 meters and a transport height of 2.12 meters. The track width is 450 mm, and it has a rated operating capacity of 1726 kg.

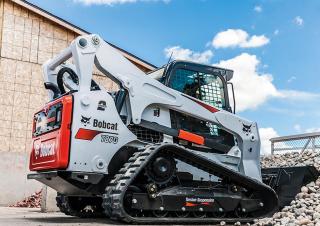

Skid Steer Loaders Bobcat T870
Skid Steer Loaders Bobcat T870
Skid Steer Loaders Bobcat T870
Skid Steer Loaders Bobcat T870
Skid Steer Loaders Bobcat T870
Skid Steer Loaders Bobcat T870
Skid Steer Loaders Bobcat T870
Skid Steer Loaders Bobcat T870
Skid Steer Loaders Bobcat T870
Skid Steer Loaders Bobcat T870

Visit Bobcat live at

Technical specs - T870 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.329 t
Rated operating capacity
1726 kg
Track width
450 mm
Bucket width
2.13 m
Driver protection
KbR
Transport length
3.03 m
Transport width
2.1 m
Transport height
2.12 m
Travel speed
10.5 km/h
Max. discharge height
2.73 m
Model series
T
Engine manuf.
Bobcat
Engine type
D34
Engine power
74.5 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
430 Nm
No. of cylinders
4
Emission level
IV

More technical details, like: standard tyres, bucket capacity, steering mode, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat T870 FAQ

When was the Bobcat T870 manufactured?

The Bobcat T870 was first produced in 2017.

How much does the Bobcat T870 skid steer loader weigh?

The Bobcat T870 skid steer loader weighs 5.33 tons.

What are the transport dimensions of the Bobcat T870 skid steer loader?

The Bobcat T870 has a transport length of 3.03 meters, a transport width of 2.1 meters, and a transport height of 2.12 meters.

What is the travel speed of the Bobcat T870 skid steer loader?

The Bobcat T870 has a travel speed of 10.5 km/h.

What is the track width of the Bobcat T870 skid steer loader?

The Bobcat T870 skid steer loader has a track width of 450 mm.

What is the material handling capacity of the Bobcat T870 skid steer loader?

The Bobcat T870 skid steer loader has a rated operating capacity of 1726 kg.

What is the bucket width of the Bobcat T870 skid steer loader?

The Bobcat T870 skid steer loader has a bucket width of 2.13 meters.

What operator safety and support features does the Bobcat T870 have?

The Bobcat T870 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Bobcat T870 Skid steer loader (2017u20132025) worth?

The residual value of the Bobcat T870 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
