T650 Bobcat T650 Specifications & Technical Data (2017—2021)

The Bobcat T650 is a skid steer loader manufactured by Bobcat from 2017 to 2021. It has a weight of 4.44 tons and a transport leng…

The Bobcat T650 is a skid steer loader manufactured by Bobcat from 2017 to 2021. It has a weight of 4.44 tons and a transport length of 3.47 meters. The bucket capacity is 1.13 cubic meters with a width of 1.88 meters. The maximum discharge height is 2.45 meters and it has a travel speed of 10.6 km/h. The transport width is 1.98 meters and the transport height is 2.06 meters. The track width is 450 mm and it has a rated operating capacity of 1242 kg.

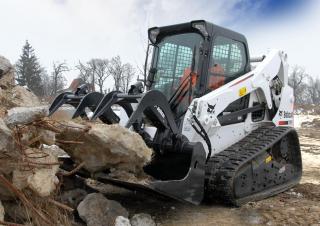

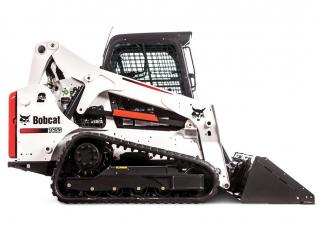

Skid Steer Loaders Bobcat T650
Skid Steer Loaders Bobcat T650
Skid Steer Loaders Bobcat T650
Skid Steer Loaders Bobcat T650
Skid Steer Loaders Bobcat T650
Skid Steer Loaders Bobcat T650

Visit Bobcat live at

Technical specs - T650 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.44 t
Rated operating capacity
1242 kg
Track width
450 mm
Bucket width
1.88 m
Bucket capacity
1.13 m³
Driver protection
KbR
Transport length
3.47 m
Transport width
1.98 m
Transport height
2.06 m
Travel speed
10.6 km/h
Max. discharge height
2.45 m
Model series
T
Engine manuf.
Bobcat
Engine type
D24
Engine power
56 kW
Displacement
2.392 l
Revolutions at max torque
1800 rpm
Max. torque
283.9 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: standard tyres, steering mode, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat T650 FAQ

When was the Bobcat T650 manufactured?

The Bobcat T650 was manufactured from 2017 to 2021.

How much does the Bobcat T650 weigh?

The Bobcat T650 weighs 4.44 tons.

What are the transport dimensions of the Bobcat T650 skid steer loader?

The Bobcat T650 has a transport length of 3.47 meters, a transport width of 1.98 meters, and a transport height of 2.06 meters.

What is the travel speed of the Bobcat T650 skid steer loader?

The Bobcat T650 has a travel speed of 10.6 km/h.

What is the track width of the Bobcat T650 skid steer loader?

The Bobcat T650 skid steer loader has a track width of 450 mm.

What is the material handling capacity of the Bobcat T650 skid steer loader?

The Bobcat T650 has a rated operating capacity of 1242 kg and a maximum discharge height of 2.45 meters.

What are the specifications of the primary work tool bucket on the Bobcat T650?

The Bobcat T650's primary work tool bucket has a capacity of 1.13 cubic meters and a width of 1.88 meters.

What operator safety and support features does the Bobcat T650 have?

The Bobcat T650 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Bobcat T650 Skid steer loader (2017u20132021) worth?

The residual value of the Bobcat T650 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
