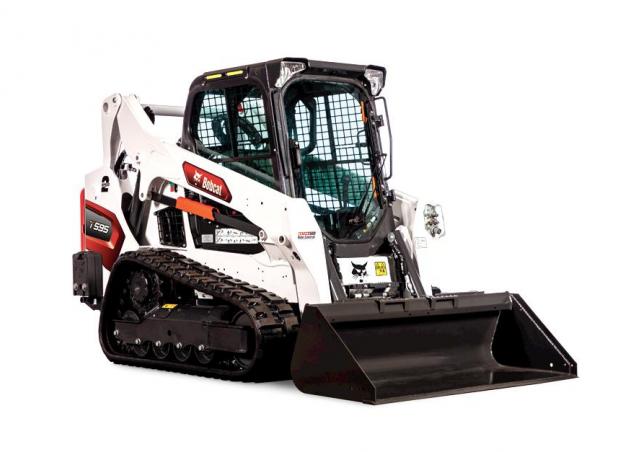

T595 Bobcat T595 Specifications & Technical Data (2016—2017)

The Bobcat T595 is a skid steer loader manufactured by Bobcat from 2016 to 2017. It has a weight of 3.65 tons and a transport leng…

The Bobcat T595 is a skid steer loader manufactured by Bobcat from 2016 to 2017. It has a weight of 3.65 tons and a transport length of 3.38 meters. The bucket width is 7 meters and it has a travel speed of 11.4 km/h. The transport width is 1.7 meters and the transport height is 3.02 meters. The track width is 320 mm. It has a rated operating capacity of 997 kg.

Skid Steer Loaders Bobcat T595

Visit Bobcat live at

Technical specs - T595 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.65 t
Rated operating capacity
997 kg
Track width
320 mm
Bucket width
7 m
Driver protection
KbR
Transport length
3.38 m
Transport width
1.7 m
Transport height
3.02 m
Travel speed
11.4 km/h
Model series
T
Engine manuf.
Kubota
Engine type
V2607DI-T3B
Engine power
49.2 kW
Displacement
2.6 l
Revolutions at max torque
1425 rpm

More technical details, like: standard tyres, bucket capacity, steering mode, max. discharge height, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, lift geometry...

More technical details, like: standard tyres, bucket capacity, steering mode, max. discharge height, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, lift geometry, access, telematics available, engine manufacturer, aspiration, engine output - gross, transmission type, drive method, track rollers, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, track length on ground, height to hinge pin, reach - max dump height, turning radius - bucket corner, fuel tank, tipping load, operating capacity, ground bearing pressure, speed - maximum, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Bobcat T595 FAQ

When was the Bobcat T595 manufactured?

The Bobcat T595 was manufactured from 2016 to 2017.

How much does the Bobcat T595 weigh?

The Bobcat T595 weighs 3.65 tons.

What are the transport dimensions of the Bobcat T595 skid steer loader?

The Bobcat T595 has a transport length of 3.38 meters, a transport width of 1.7 meters, and a transport height of 3.02 meters.

What is the travel speed of the Bobcat T595 skid steer loader?

The Bobcat T595 has a travel speed of 11.4 km/h.

What is the track width of the Bobcat T595 skid steer loader?

The Bobcat T595 skid steer loader has a track width of 320 mm.

What is the material handling capacity of the Bobcat T595?

The Bobcat T595 has a rated operating capacity of 997 kilograms.

What is the bucket width of the Bobcat T595 skid steer loader?

The Bobcat T595 skid steer loader has a bucket width of 7 meters.

What operator safety and support features does the Bobcat T595 have?

The Bobcat T595 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Bobcat T595 Skid steer loader (2016u20132017) worth?

The residual value of the Bobcat T595 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
