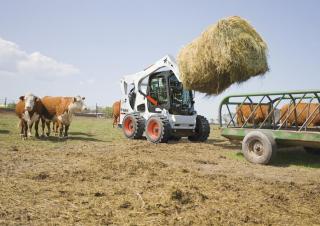

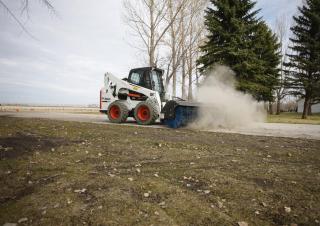

S770 Bobcat S770 Specifications & Technical Data (2017—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bobcat live at
Technical specs - S770 Bobcat
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.787 t
- Rated operating capacity
- 1569 kg
- Standard tyres
- 12x16.5 12–ply
- Bucket width
- 1.88 m
- Bucket capacity
- 0.93 m³
- Driver protection
- KbR
- Steering mode
- AL
- Transport length
- 2.903 m
- Transport width
- 1.83 m
- Transport height
- 2.065 m
- Travel speed
- 19.8 km/h
- Max. discharge height
- 2.65 m
- Model series
- S
- Engine manuf.
- Bobcat
- Engine type
- D34
- Engine power
- 68.7 kW
- Displacement
- 3.409 l
- Revolutions at max torque
- 2400 rpm
- Max. torque
- 355.3/1600 Nm
- No. of cylinders
- 4
- Emission level
- IV
More technical details, like: track width, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
