S510 Bobcat S510 Specifications & Technical Data (2013—2019)

The Bobcat S510 is a skid steer loader manufactured by Bobcat from 2013 to 2019. It has a weight of 2.69 tons and a transport leng…

The Bobcat S510 is a skid steer loader manufactured by Bobcat from 2013 to 2019. It has a weight of 2.69 tons and a transport length of 3.38 meters. The bucket capacity is 0.93 cubic meters with a width of 1.73 meters. The maximum discharge height is 2.2 meters and it has a travel speed of 17.3 km/h. The transport width and height are both 1.73 and 1.97 meters respectively. The rated operating capacity is 810 kilograms.

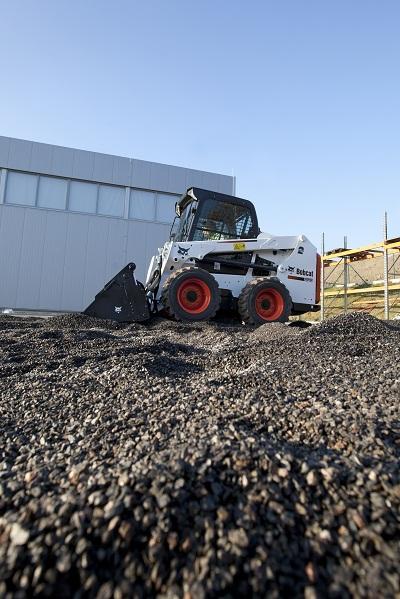

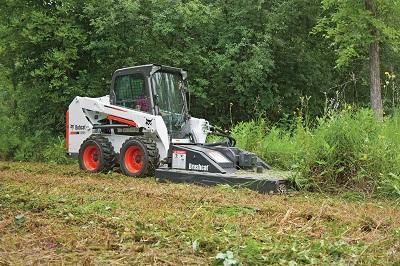

Skid Steer Loaders Bobcat S510
Skid Steer Loaders Bobcat S510
Skid Steer Loaders Bobcat S510
Skid Steer Loaders Bobcat S510
Skid Steer Loaders Bobcat S510
Skid Steer Loaders Bobcat S510

Visit Bobcat live at

Technical specs - S510 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.69 t
Rated operating capacity
810 kg
Standard tyres
10.00-16.5 10 PR
Bucket width
1.73 m
Bucket capacity
0.93 m³
Driver protection
KbR
Transport length
3.38 m
Transport width
1.73 m
Transport height
1.97 m
Travel speed
17.3 km/h
Max. discharge height
2.2 m
Model series
S
Engine manuf.
Kubota
Engine type
V2203-M-DI-E2B-BC-3
Engine power
36.4 kW
Displacement
2.196 l
Revolutions at max torque
1425 rpm
Max. torque
150 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: track width, steering mode, lifting force, dimension lxwxh, cylinder bore x stroke, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, security system available, engine manufacturer...

More technical details, like: track width, steering mode, lifting force, dimension lxwxh, cylinder bore x stroke, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, security system available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, hydraulic power, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat S510 FAQ

When was the Bobcat S510 manufactured?

The Bobcat S510 was manufactured from 2013 to 2019.

How much does the Bobcat S510 skid steer loader weigh?

The Bobcat S510 skid steer loader weighs 2.69 tons.

What are the transport dimensions of the Bobcat S510 skid steer loader?

The Bobcat S510 has a transport length of 3.38 meters, a transport width of 1.73 meters, and a transport height of 1.97 meters.

What is the travel speed of the Bobcat S510 skid steer loader?

The Bobcat S510 has a travel speed of 17.3 km/h.

What is the standard tyre size of the Bobcat S510 skid steer loader's undercarriage?

The Bobcat S510 skid steer loader has standard tyres sized 10.00-16.5 10 PR.

What is the material handling capacity of the Bobcat S510 skid steer loader?

The Bobcat S510 has a rated operating capacity of 810 kg and a maximum discharge height of 2.2 meters.

What are the specifications of the primary work tool on the Bobcat S510 skid steer loader?

The Bobcat S510 skid steer loader has a bucket with a capacity of 0.93 cubic meters and a width of 1.73 meters.

What operator safety and support features does the Bobcat S510 have?

The Bobcat S510 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Bobcat S510 Skid steer loader (2013u20132019) worth?

The residual value of the Bobcat S510 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
