A770 Bobcat A770 Specifications & Technical Data (2011—2017)

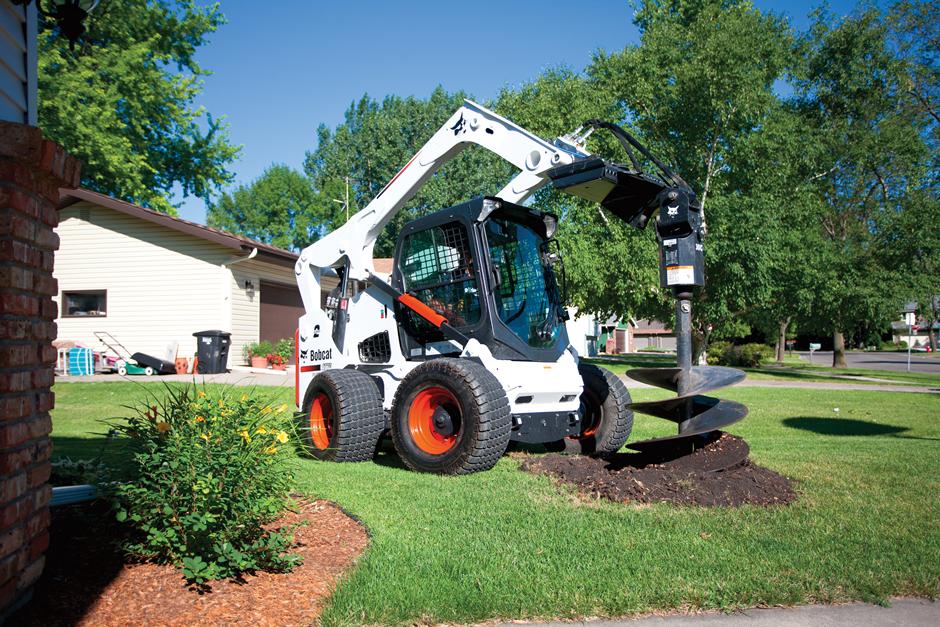

The Bobcat A770 is a skid steer loader manufactured by Bobcat from 2011 to 2017. It has a weight of 3.78 tons and a transport leng…

The Bobcat A770 is a skid steer loader manufactured by Bobcat from 2011 to 2017. It has a weight of 3.78 tons and a transport length of 3.63 meters. The bucket capacity is 1.4 cubic meters with a width of 2.032 meters. The maximum discharge height is 3.27 meters. The transport width is 1.88 meters and the transport height is 2.055 meters. It has a lifting force of 31.8 kilonewtons and a rated operating capacity of 1550 kilograms.

Visit Bobcat live at

A770

Years of manufacture: 2011—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - A770 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.78 t

Rated operating capacity: 1550 kg

Standard tyres: 12.00-16.5 12PR

Bucket width: 2.032 m

Bucket capacity: 1.4 m³

Driver protection: KbR

Steering mode: AL

Transport length: 3.63 m

Transport width: 1.88 m

Transport height: 2.055 m

Travel speed: 11.4 km/h

Max. discharge height: 3.27 m

Lifting force: 31.8 kN

Model series: A

Engine manuf.: Kubota

Engine type: V3300-DI-T

Engine power: 54 kW

Displacement: 3.769 l

Revolutions at max torque: 1600 rpm

More technical details, like: track width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, security system available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, pump type, hydraulic power, hydraulic power - option, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter: No
LPG motor: No
Burglar proof system: No

Download datasheets (PDF)

Bobcat A770 FAQ

When was the Bobcat A770 skid steer loader manufactured?

The Bobcat A770 skid steer loader was manufactured from 2011 to 2017.

How much does the Bobcat A770 weigh?

The Bobcat A770 weighs 3.78 tons.

What are the transport dimensions of the Bobcat A770 skid steer loader?

The Bobcat A770 has a transport length of 3.63 meters, a transport width of 1.88 meters, and a transport height of 2.06 meters.

What is the travel speed of the Bobcat A770 skid steer loader?

The Bobcat A770 has a travel speed of 11.4 km/h.

What are the undercarriage specifications of the Bobcat A770 skid steer loader?

The Bobcat A770 skid steer loader is equipped with standard tyres sized 12.00-16.5 12PR.

What is the steering mode of the Bobcat A770?

The Bobcat A770 has an all-wheel steering mode.

What is the lifting force of the Bobcat A770 skid steer loader?

The Bobcat A770 skid steer loader has a lifting force of 31.8 kN.

What is the material handling capacity of the Bobcat A770 skid steer loader?

The Bobcat A770 skid steer loader has a rated operating capacity of 1550 kg.

What are the bucket specifications of the Bobcat A770 skid steer loader?

The Bobcat A770 skid steer loader has a bucket capacity of 1.4 cubic meters and a bucket width of 2.03 meters.

What operator safety and support features does the Bobcat A770 have?

The Bobcat A770 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Bobcat A770 Skid steer loader (2011u20132017) worth?

The residual value of the Bobcat A770 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
