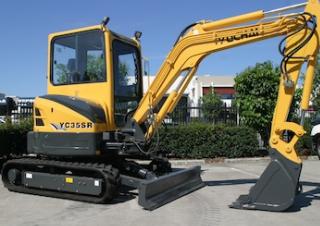

YC35SR Yuchai excavator specs & dimensions (2017 - 2026)

Yuchai YC35SR is a mini excavator manufactured since 2017, with a weight of 3.86 tons. It features a track width of 300 mm, a tran…

Yuchai YC35SR is a mini excavator manufactured since 2017, with a weight of 3.86 tons. It features a track width of 300 mm, a transport length of 4.65 meters, a transport width of 1.8 meters, and a transport height of 2.55 meters. The machine has a tear-out force of 25.7 kN and a dredging depth of 3.12 meters. The bucket width is 0.64 meters, with a bucket capacity of 0.12 cubic meters. It is equipped with a blade as special equipment.

Mini Excavators Yuchai YC35SR

Technical specs - YC35SR Yuchai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.86 t
Transport length
4.65 m
Transport width
1.8 m
Transport height
2.55 m
Bucket capacity
0.12 m³
Bucket width
0.64 m
Track width
300 mm
Driver protection
Kb
Dredging depth
3.12 m
Tear-out force
25.7 kN
Engine manuf.
Kubota
Engine type
V2403
Engine power
31.2 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, max. reach horizontal, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yuchai YC35SR FAQ

When was the Yuchai YC35SR manufactured?

The Yuchai YC35SR was first produced in 2017.

How much does the Yuchai YC35SR weigh?

The Yuchai YC35SR weighs 3.86 tons.

What are the transport dimensions of the Yuchai YC35SR mini excavator?

The Yuchai YC35SR has a transport length of 4.65 meters, a transport width of 1.8 meters, and a transport height of 2.55 meters.

What is the track width of the Yuchai YC35SR mini excavator's undercarriage?

The Yuchai YC35SR mini excavator has a track width of 300 mm.

What is the dredging depth of the Yuchai YC35SR mini excavator?

The Yuchai YC35SR mini excavator has a dredging depth of 3.12 meters.

What is the tear-out force of the Yuchai YC35SR mini excavator?

The Yuchai YC35SR mini excavator has a tear-out force of 25.7 kN.

What are the specifications of the bucket on the Yuchai YC35SR mini excavator?

The bucket of the Yuchai YC35SR has a capacity of 0.12 cubic meters and a width of 0.64 meters.

What operator safety and support features does the Yuchai YC35SR have?

The Yuchai YC35SR provides operator safety through a protective cabin.
