ViO38-7 Yanmar excavator specs & dimensions (2025 - 2026)

Weight: 3.585t – Transport length: 5.36m – Transport width: 1.74m – Transport height: 2.46m – Track width: 300mm – Driver protecti…

Weight: 3.585t – Transport length: 5.36m – Transport width: 1.74m – Transport height: 2.46m – Track width: 300mm – Driver protection: FD

Check out detailed specifications, information and technical data for Yanmar ViO38-7 excavator manufactured between 2025 - 2026. Get more in-depth insight with Yanmar ViO38-7 digger specifications. See information, like: Weight: 3.585t – Transport length: 5.36m – Transport width: 1.74m – Transport height: 2.46m – Track width: 300mm – Driver protection: FD and more.

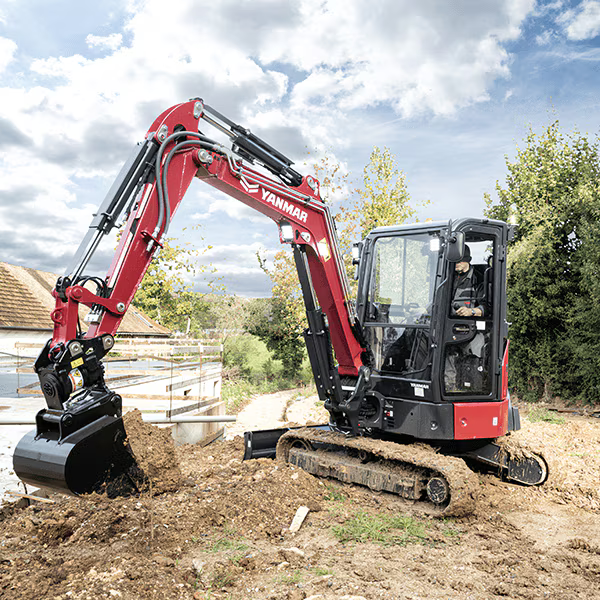

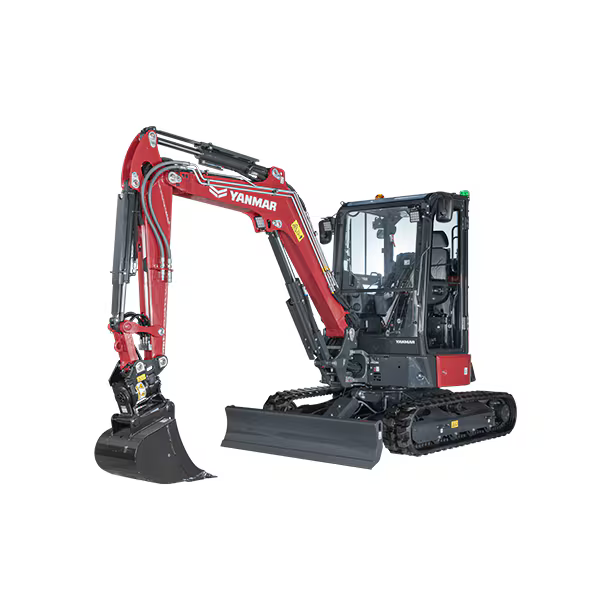

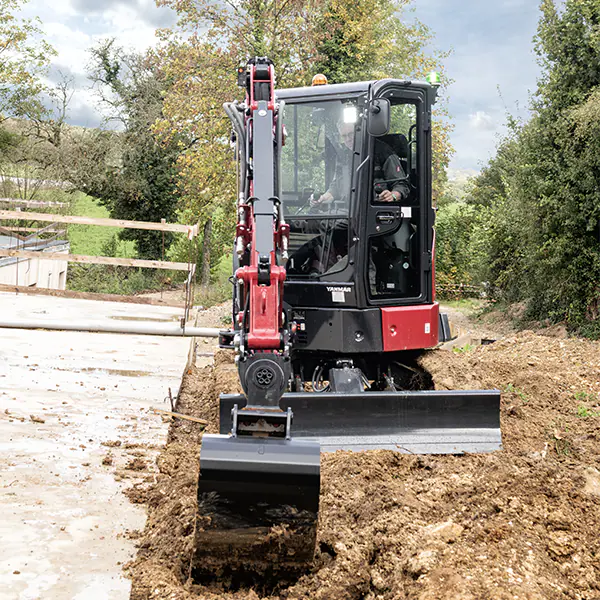

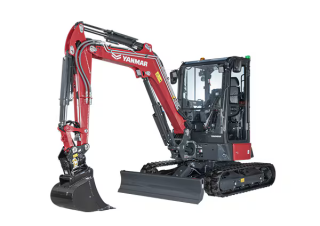

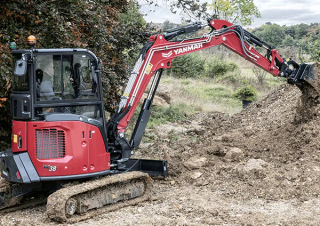

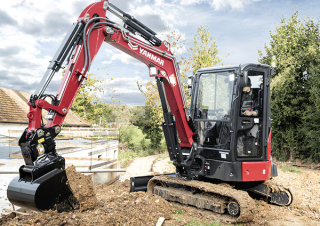

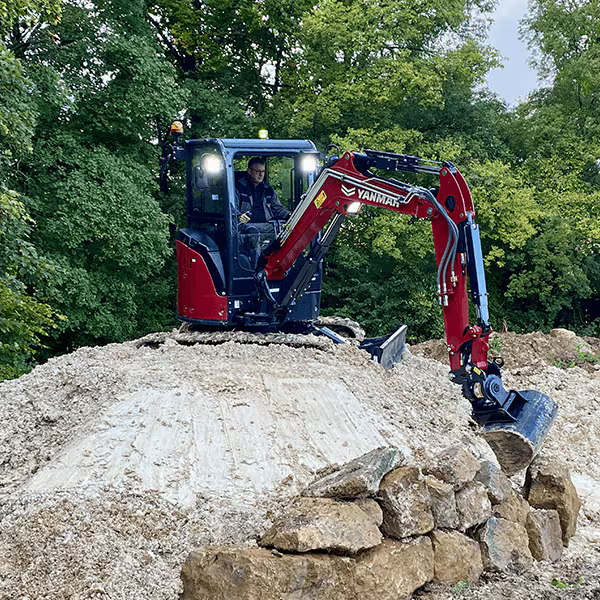

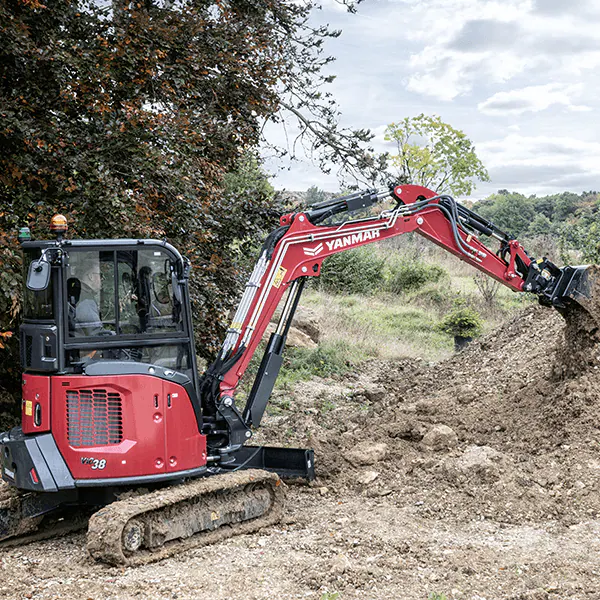

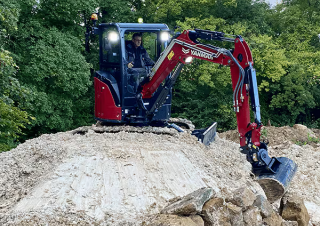

Mini Excavators Yanmar ViO38-7
Mini Excavators Yanmar ViO38-7
Mini Excavators Yanmar ViO38-7
Mini Excavators Yanmar ViO38-7
Mini Excavators Yanmar ViO38-7
Mini Excavators Yanmar ViO38-7
Mini Excavators Yanmar ViO38-7
Mini Excavators Yanmar ViO38-7
Mini Excavators Yanmar ViO38-7
Mini Excavators Yanmar ViO38-7

Technical specs - ViO38-7 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.585 t
Transport length
5.36 m
Transport width
1.74 m
Transport height
2.46 m
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
5.395 m
Dredging depth
3.375 m
Tear-out force
32.8 kN
Model series
ViO
Engine manuf.
Yanmar
Engine type
3TNV88-ESBV2
Engine power
18.9 kW
Displacement
1.642 l
Revolutions at max torque
2200 rpm
Max. torque
94,5/1320 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar ViO38-7 FAQ

When was the Yanmar ViO38-7 manufactured?

The Yanmar ViO38-7 was first produced in 2025.

How much does the Yanmar ViO38-7 weigh?

The Yanmar ViO38-7 weighs 3.585 tons.

What are the transport dimensions of the Yanmar ViO38-7 mini excavator?

The Yanmar ViO38-7 has a transport length of 5.36 meters, a transport width of 1.74 meters, and a transport height of 2.46 meters.

What is the track width of the Yanmar ViO38-7 mini excavator?

The Yanmar ViO38-7 mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Yanmar ViO38-7 mini excavator?

The Yanmar ViO38-7 mini excavator has a dredging depth of 3.375 meters and a maximum horizontal reach of 5.395 meters.

What is the tear-out force of the Yanmar ViO38-7 mini excavator?

The Yanmar ViO38-7 mini excavator has a tear-out force of 32.8 kN.

What operator safety features does the Yanmar ViO38-7 have?

The Yanmar ViO38-7 has a canopy for driver protection.

How much is a Yanmar ViO38-7 Mini excavator (2025u20132025) worth?

The residual value of the Yanmar ViO38-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Yanmar ViO38-7 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we check information since 40 years and based on this infromation, we can support sellers with pricing lists of used mini excavators, such as Yanmar ViO38-7.

Check what new and used models of mini excavators you can get in each price range:

Data provided by Lectura logo
