ViO33-6 Yanmar excavator specs & dimensions (2022 - 2025)

Weight: 3.275t – Transport length: 4.91m – Transport width: 1.55m – Transport height: 2.46m – Track width: 300mm – Driver protecti…

Weight: 3.275t – Transport length: 4.91m – Transport width: 1.55m – Transport height: 2.46m – Track width: 300mm – Driver protection: Kb

Check out detailed specifications, information and technical data for Yanmar ViO33-6 excavator manufactured between 2022 - 2025. Get more in-depth insight with Yanmar ViO33-6 digger specifications. See information, like: Weight: 3.275t – Transport length: 4.91m – Transport width: 1.55m – Transport height: 2.46m – Track width: 300mm – Driver protection: Kb and more.

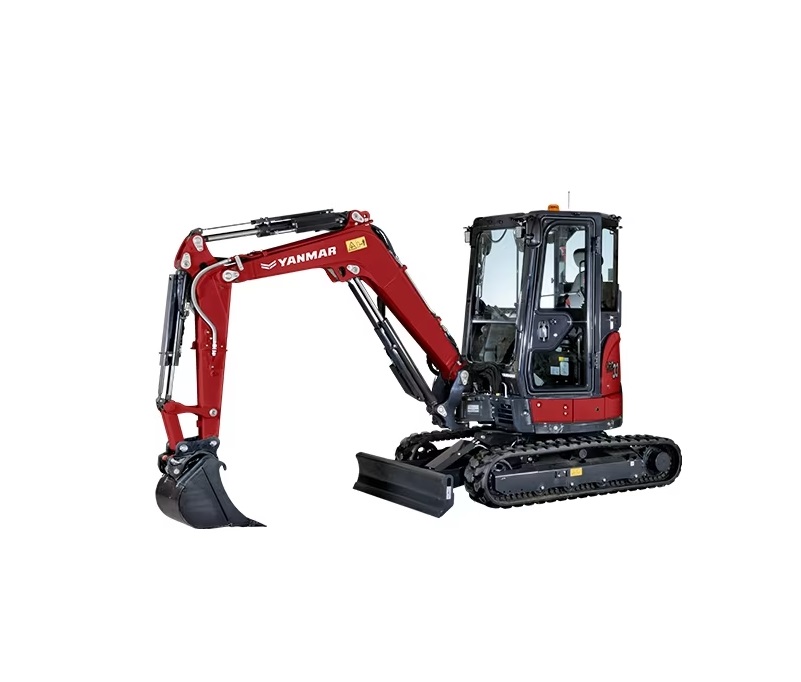

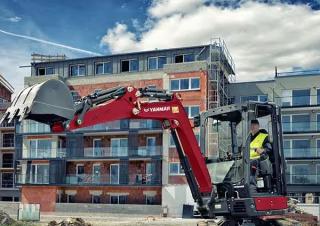

Mini Excavators Yanmar ViO33-6
Mini Excavators Yanmar ViO33-6
Mini Excavators Yanmar ViO33-6
Mini Excavators Yanmar ViO33-6

Technical specs - ViO33-6 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.275 t
Transport length
4.91 m
Transport width
1.55 m
Transport height
2.46 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.98 m
Dredging depth
3.19 m
Tear-out force
29.9 kN
Model series
ViO
Engine manuf.
Yanmar
Engine type
3TNV88-ESBV
Engine power
18.5 kW
Displacement
1.642 l
Revolutions at max torque
2200 rpm
Max. torque
94.5 Nm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar ViO33-6 FAQ

When was the Yanmar ViO 33-6 manufactured?

The Yanmar ViO 33-6 was first produced in 2024.

How much does the Yanmar ViO 33-6 mini excavator weigh?

The Yanmar ViO 33-6 mini excavator weighs 3.275 tons.

What are the transport dimensions of the Yanmar ViO 33-6 mini excavator?

The Yanmar ViO 33-6 has a transport length of 4.91 meters, a transport width of 1.55 meters, and a transport height of 2.46 meters.

What is the track width of the Yanmar ViO 33-6 mini excavator?

The Yanmar ViO 33-6 mini excavator has a track width of 300 mm.

What are the excavation specifications of the Yanmar ViO 33-6 mini excavator?

The Yanmar ViO 33-6 mini excavator has a dredging depth of 3.19 meters and a maximum horizontal reach of 4.98 meters.

What is the tear-out force of the Yanmar ViO 33-6 mini excavator?

The Yanmar ViO 33-6 mini excavator has a tear-out force of 29.9 kN. No power rating data is available for this model in the provided information.

What operator safety and support features does the Yanmar ViO 33-6 have?

The Yanmar ViO 33-6 has a cabin for driver protection.

How much is a Yanmar ViO 33-6 Mini excavator (2024u20132025) worth?

The residual value of the Yanmar ViO 33-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
