VIO 45 Yanmar excavator specs & dimensions (2001 - 2011)

Model rating
5,83 / 10

Yanmar VIO 45 is a mini excavator manufactured from 2001 to 2011, with a weight of 4.43 tons. It features a track width of 350 mm,…

Yanmar VIO 45 is a mini excavator manufactured from 2001 to 2011, with a weight of 4.43 tons. It features a track width of 350 mm, a transport length of 5.15 meters, a transport width of 1.97 meters, and a transport height of 2.62 meters. The bucket capacity is 0.135 cubic meters. Special equipment includes a blade and rubber tracks.

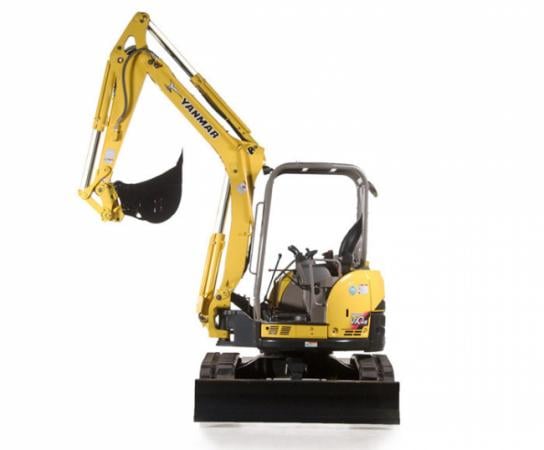

Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45
Mini Excavators Yanmar VIO 45

Visit Yanmar live at

Technical specs - VIO 45 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.43 t
Transport length
5.15 m
Transport width
1.97 m
Transport height
2.62 m
Bucket capacity
0.135 m³
Track width
350 mm
Driver protection
Kb
Max. Reach horizontal
3.72 m
Dredging depth
3.5 m
Model series
VIO
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
23 kW
Displacement
1.642 l
Revolutions at max torque
2500 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar VIO 45 FAQ

When was the Yanmar VIO 45 manufactured?

The Yanmar VIO 45 was manufactured from 2001 to 2011.

How much does the Yanmar VIO 45 weigh?

The Yanmar VIO 45 weighs 4.43 tons.

What are the transport dimensions of the Yanmar VIO 45 mini excavator?

The Yanmar VIO 45 has a transport length of 5.15 meters, a transport width of 1.97 meters, and a transport height of 2.62 meters.

What is the track width of the Yanmar VIO 45 mini excavator's undercarriage?

The Yanmar VIO 45 mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the Yanmar VIO 45 mini excavator?

The Yanmar VIO 45 mini excavator has a dredging depth of 3.5 meters and a maximum horizontal reach of 3.72 meters.

What is the bucket capacity of the Yanmar VIO 45 mini excavator?

The Yanmar VIO 45 mini excavator has a bucket capacity of 0.135 cubic meters.

What driver protection feature does the Yanmar VIO 45 have?

The Yanmar VIO 45 has a cabin for driver protection.

How much is a Yanmar VIO 45 Mini excavator (2001u20132011) worth?

The residual value of the Yanmar VIO 45 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Yanmar VIO 45 overview

Yanmar VIO 45 features overview

cumbersome The quick coupler change bucket quickly and easily without even getting your hands dirty. ITO s all switches run operation while you stay seated, except for installation and removal of the safety lock pin. You can also use attachments from other companies, there by reducing storage costs and saving space.
Bucket Removal
Place the bucket on the ground Pull the safety lock pin Turn the switch to RELEASE Raise your arm.
Bucket Attachment
the fixed hook Make the bucket level. Turn the switch to HOLD. Set the safety lock pin and fasten
Movable hook
The quick-coupler effortlessly changing bucket quickly and easily, without even getting your hands dirty.
Fixed hook
except for mounting and removing the safety lock pin. You can also use attachments from other companies, there by reducing stockpiling costs and saving space.
Bucket Removal
Place the bucket on the ground Pull the safety lock pin Turn the switch to RELEASE Raise the arm to disconnect.the fixed hook Make the bucket stand.Turn the switch into HOLD.

Hydraulics

ARM×Bucket×Swivel
Pump 1 +Pump 3 activate "BOOM" pump 2 activates "ARM" pump 3 activates „SWIVEL

Tyres / Tracks

Highly Balanced Structure
The Yanmar designed offset crawler keeps on the ground with a wide, firm grip.
No Bother at the Rear
Side-ditch digging up to the wall with nothing Sticking Out

Dimensions and weight

ModelVio45-5BVio55-5B
TypeCanopyCabinCanopyCabin
Operating weightRubber track lbs（kg）10275（4660）10562（4790）11532（5230）11819（5360）
Steel tracklbs（kg）10408（4720）10694（4850）11576（5250）11863（5380）
EngineTypeWater-cooled 4 cycle diesel
ModelYANMAR 4TNV88-BXBV
Outputhp（kW）/RPM39.5（29.5）/2400
PerformanceMax. digging force bucket/arm"lbs（kN）6722（29.9）/4995（22.2）7598（33.8）/5062（22.5）
Traveling speedMPH（km/h）2.8/1.4（4.6/2.3）2.7/1.4（4.4/2.3）
Swing speedRPM10.0
Boom swing angle (L/R)"degrees70/70
Ground contact pressureRubber trackPSI（kPa）4.19（28.9）4.31（29.7）4.10（28.3）4.22（29.1）
Steel trackPSI（kPa）3.76（25.9）3.86（26.6）4.18（28.8）4.28（29.5）
Hydraulic systemPump capacityGPM10.6+10.6+10.6+3.1
（L/min）40.3+40.3+40.3+11.7
Main relief set pressurePSI（MPa）3133（21.6）3553（24.5）
UndercarriageTrack typeRubber or Steel
Blade dimensionsWidth × heightft-in（mm）6'6""×1'4""（1970×400）"
Fuel tank capacityGals（L）16.9（64）

Tables

raulic P.T.O.Unnamed: 0Unnamed: 1Unnamed: 2Unnamed: 3Unnamed: 4Unnamed: 5
elVio45-5BVio55-5B
OutputPSI(MPa)GPM(L/min)PSI(MPa)GPM(L/min)
cification2400RPM1200RPM2400RPM 1200RPM
bined flowdouble actions"3133(21.6)19.7(74.6)9.8(37.3)3553(24.5)21.3(80.6) 10.6(40.3)
ndard equipment
BladeROPS / FOPS cabin or canopySeat belt(Please note that the standard
Boom swing functionWindshield washerTraveling levers and pedalsequipment may vary from this list.
Rubber or Steel tracks(cabin spec)Traveling alarmConsult your Yanmar dealer for
Hydraulic quick couplerDefroster (cabin spec)Built-in type boom lightconfirmation)
2way control pattern changeJoystick pilot controlsExterior canopy or cabin work light
Dimensionsunit:ft-in（mm）
Vio45-5BVio55-5B
A,"12'1""（3680）13'1""（3980）"
B,"12'8""（3850）13'8""（4160）"
C,"8'10""（2700）9'6""（2900）"
D,"19'1""（5820）20'4""（6200）"
E,"17'3""（5260）18'3""（5560）"
F,"8'7""（2620）8'7""（2620）"
G,"19'6""（5950）21'2""（6440）"
H,"12'10""（3910）14'5""（4400）"
I,"7'8""（2340）7'7""（2320）"
J,"8'7""（2620）8'7""（2620）"
K,"1'8""（500）1'8""（500）"
L,"6'5""（1950）6'6""（1990）"
M,"1'2""（350）1'4""（400）"
N,"1'2""（360）1'2""（360）"
O,"2""（40）2""（45）"
P,"2'7""（795）2'7""（795）"
Q,"2'2""（650）2'2""（650）"
R,"5""（130）5""（135）"
S,"R3'2""（R975）R3'3""（R995）"
ModelVio45-5BVio55-5B
Output SpecificationPSI（MPa）GPM（L/min）PSI（MPa）GPM（L/min）
2400RPM1200RPM2400RPM1200RPM
Conbined flowdouble actions"3133（21.6）19.7（74.6）9.8（37.3）3553（24.5）21.3（80.6）10.6（40.3）
