VIO 33 U Yanmar excavator specs & dimensions (2011 - 2015)

Model rating: 6,00 / 10

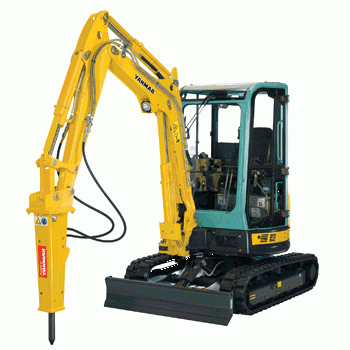

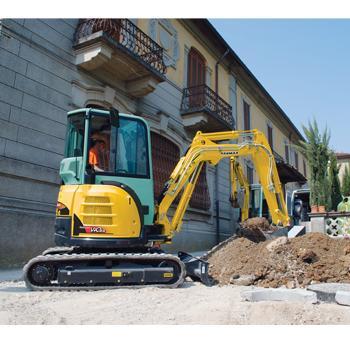

Yanmar VIO 33 U is a mini excavator manufactured from 2011 to 2015, with a weight of 3.27 tons. It features a track width of 300 m…

Yanmar VIO 33 U is a mini excavator manufactured from 2011 to 2015, with a weight of 3.27 tons. It features a track width of 300 mm, a transport length of 4.45 meters, a transport width of 1.55 meters, and a transport height of 2.5 meters. The excavator is equipped with a blade and rubber tracks.

VIO 33 U

Years of manufacture: 2011—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - VIO 33 U Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.27 t

Transport length: 4.45 m

Transport width: 1.55 m

Transport height: 2.5 m

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 3.44 m

Dredging depth: 3.01 m

Model series: VIO

Engine manuf.: Yanmar

Engine type: 3TNV82A

Engine power: 18 kW

Displacement: 1.3 l

Revolutions at max torque: 2400 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Yanmar VIO 33 U FAQ

When was the Yanmar VIO 33 U manufactured?

The Yanmar VIO 33 U was manufactured from 2011 to 2015.

How much does the Yanmar VIO 33 U weigh?

The Yanmar VIO 33 U weighs 3.27 tons.

What are the transport dimensions of the Yanmar VIO 33 U mini excavator?

The Yanmar VIO 33 U has a transport length of 4.45 meters, a transport width of 1.55 meters, and a transport height of 2.5 meters.

What is the track width of the Yanmar VIO 33 U mini excavator?

The Yanmar VIO 33 U mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Yanmar VIO 33 U mini excavator?

The Yanmar VIO 33 U has a dredging depth of 3.01 meters and a maximum horizontal reach of 3.44 meters.

What operator safety features does the Yanmar VIO 33 U have?

The Yanmar VIO 33 U has a cabin for driver protection.

How much is a Yanmar VIO 33 U Mini excavator (2011u20132015) worth?

The residual value of the Yanmar VIO 33 U depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Yanmar VIO 33 U overview

Yanmar VIO 33 U features overview

Yanmar, inventor and leader of the ZTS mini-excavators.
4th generation of Vio machines. genuine zero tail swing machine: the front part of upper frame does not exceed the width of the crawlers. The ability to work along a wall. Maximum safety and productivity for the operator. The combined use of a large counterweight and asymmetric crawler (VICTASE system) with an excellent mass distribution ensures great stability and one of the best lift strengths among the machines in this weight category. This decreases vibrations, noise and damage caused by search engines. Cab complying with safety standards: ROPS (Roll Over Protective Structure), FOPS 1 (Falling Object Protective Structure) and TOPS (Tip-Over Protective Structure). Battery isolator. Cylinder fully protected (Rod and Cylinder) through highly elastic steel plates resist possible shocks. Careful routing and protection of hydraulic pipes on the boom and right side of the machine. You can remove the step towards access to the sockets and change the implement pipe. Layout of the designed to withstand all kinds of shock absorbers as well as providing security against damper guards at the top end of the tooltip

Dimensions and weight

		ViO33U
3-cylinder Yanmar engine	Type	3TNV82-ANBV2A
Rated output (DIN 6270B)	18.1 kw/24.6 HP/2500 rpm
Displacement	1330 cm3
Max. torque	86.1 N.m./1500 rpm
Hydraulic circuit	System capacity	60 l
Max. pressure	210 bar
2 variable displacement piston pumps	2 x 37.5 l/mn
1 fixed displacement piston pump	21.5 l/mn
1 gear pump	12.4 l/mn
Performances	Travelling speed	2.7/4.5 km/h
Swing speed	10 rpm
Digging force (arm)	1755 kgf
Digging force (bucket)	3100 kgf
Grade ability	30°
Undercarriage	Ground pressure	0.300/0.310 kg/cm2
Shoe width	300 mm
Ground clearance	320 mm
Blade (width x height)	1550 x 320 mm
Miscellaneous	Fuel tank	39 l
Cooling system	5.5 l
Transport dimensions (L x w x h)	4448 x 1550 x 2500 mm
Noise level (2000/14/EC & 2005/88/EC)	81 dBA (LpA) 93 dBA (LwA)
Optional equipments	Special paint Standard	ditch cleaning and swivelling buckets Safety device for loading 4th circuit Hydraulic Hammer Hydraulic quick coupler"	Anti-start system and Anti-theft device 3rd circuit with proportional command Additional counterweight Radio

Tables

A	Maxi	3.5	3.0	2.5	2.0
B						pulg	= 10	Ry 1	- 10
3.0	-	-	420	*600	*530	*530	-	-	-	-
2.5	350	*620	430	*590	*550	*550	-	-	-	-
2.0	320	*630	435	*620	*620	*620	-	-	-	-
1.0	290	*670	380	*730	510	*820	640	*1000	945	*1400
0	290	*720	350	*800	450	*1000	585	*1250	790	*1830
-1.0	-	-	340	*780	460	*1020	530	*1200	870	*1700
-1.5	-	-	-	-	450	*830	525	*1100	820	*1550
-2.0	-	-	-	-	-	-	550	*810	790	*1250

PTO	Theoretical Data
Pressure	2500 rpm
	0 ~ 200 bar	59 ~ 34	5 l/mn"
	0 ~ 200 bar	59 ~ 34	5 l/mn"
