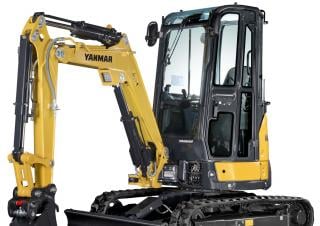

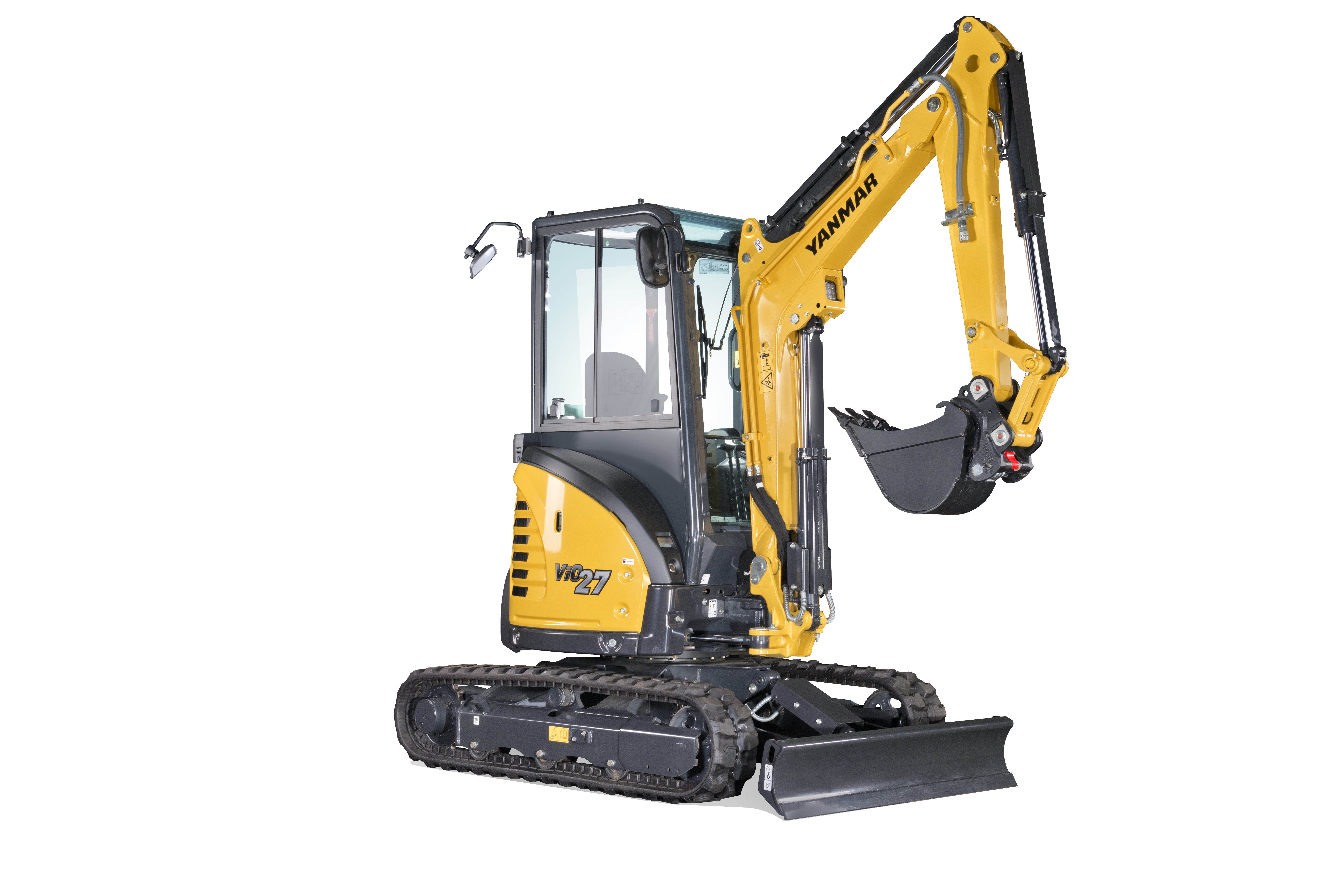

VIO 27-6 CR Yanmar excavator specs & dimensions (2017 - 2024)

BEST COMPONENTS
Designed in Japan with renowned components for top quality. Design and performance of the components made for long service life.
EASE OF MAINTENANCE
5 hoods or openings that allow easy access for component maintenance. Quick and simple daily checks or servicing. Upgraded operator station: enlarged leg room, universal design, new electronic instrumentation, improved ergonomics and greatly enhanced noise levels.
NO COMPROMISE ON PERFORMANCE
The vio27-6 offers exceptional performance for a machine of its class. Its 2940 mm digging depth and 23.1 kn (bucket) digging forces and 144 kn dig forces enable it to work quickly and efficiently, even in the most severe conditions.
ALL-AROUND VISIBILITY
The vio27-6 design ensures an ergonomic environment, excellent visibility and exceptional safety. The shape of the cab gives the operator optimal 360 visibility to improve job site safety and make working more efficient.The vio27-6 is equipped with two mirrors so that the operator can control the work area without changing from the seat.

NEW GENERATION YANMAR ENGINE
The latest generation of Yanmar TNV engines: electronically controlled 3-cylinder engine with direct injection to improve performance, fuel consumption and emission levels.
HIGH PERFORMANCE
Upgrading of Powerline components (engine, hydraulic pump, control valve): No compromise between power and compactness.
NEW GENERATION ELECTRONICALLY CONTROLLED YANMAR MOTOR
With a performance of 15, 8 kw at 2500 rpm, yanmar's 3tnv76-nbva1 engine is the result of our continuous efforts to achieve technological advances in fuel consumption and emissions. An improved fuel injection system reduces emissions and noise. + By default, an auto retarder system further decreases fuel consumption.
EASY ACCESS
Daily maintenance must be carried out easily. There is an easy-to-open engine hood and the right side cover is mounted on a hinge to open up easily, giving you access to all major elements: air filter, compressor, radiator, refueling pump, battery, fuel tank, hydraulic oil tank generator, engine oil dipstick, water separator, coolant level etc. A flat floor mat makes cleaning easier.

Vipps hydraulic system
The vio27-6 is equipped with a vipps hydraulic system which cumulates the flow of separate pumps to maintain the optimal combination in terms of speed, power, smoothness and balance so that all operations are able to perform smoothly while travelling.
VIPPS HYDRAULIC CIRCUIT (vio progressive 3 pump system)
The vio27-6 is equipped with a Vipps hydraulic system (Vio Progressive 3 Pump System). This hydraulic system features the use of 4 hydraulic pumps, 2 variable displacement pumps and 2 gear pumps, including one for joysticks) to deliver total flow up to 92.6 l/min. To be able to complete the system Yanmar uses a control valve based on the vippian principle which cumulates the flow of separate pumps to obtain an optimal combination in terms of speed, power, smoothness and balance.
PERFORMANCE
3tnv76-nbva1 yanmar diesel‐ Direct injection‐ Autoentschleunigsystem − vipps Hydraulic System (Vio progressive 3-pump system)• Proportional 3rd hydraulic circuit line to arm end – 1 LED light integrated into the boom.

COMPACTNESS
Yanmar, inventor of the vio concept, has an unmatched experience in developing Zero Tail Swing excavators. The vio27-6 is a genuine zero tail swing mini excavator that allows full rotation of the upper frame within the width of the crawlers for maximum safety.
Neither the counterweight, nor the front part of the upper frame project beyond the track width. With its front part Designed not to extend over, the vio27-6 has a very small turning radius.
+ Enhanced safety both of the operator and side Improved safety for the operator and lateral workers: critical on job sites. + Rear-view lockout point reduces to a minimum: again increases safety for employees around the machine.
COMFORT AND EASE OF USE
LCD interfacethe Ergonomic suspension seat with adjustment levers • Arm rests • Foot rests • Foldable travel pedals • Switch on the blade lever for speed change • Windshield with 2 fully retractable parts • Sliding double right side windows • Transparent upper front part • Wiper wash machine • Automatic ceiling light • 1 x 12V outlet• Storage boxes

SPACIOUS AND COMFORTABLE CABIN
With the operator's use at the heart of his design initiatives, Yanmar developed the universal design concept that gives you comfort for improved productivity. Combined to an increased leg room it enables improvement in operator comfort and safety. Operator controls and switches are ergonomically arranged for easy reach. Flat and spacious leg room 385 mm

SAFETY
The structure of the Vio27-6 cab has been upgraded to ROPS (Roll-Over Protective Structure) certification as well as FOPS (Falling Object Protective Structure) level,
ON THE MARKET
The vio27-6 benefits from a unique and complete protection of all its boom and arm cylinders. All cylinder pipes and sticks are protected by a spring steel plate, dramatically reducing the total cost of ownership of the machine.
LED LIGHTING: EFFICIENCY AND LOW CONSUMPTION
In order to be able to work safely, efficiently and with accuracy in the dark, The vio27-6 is standardly equipped with 1 guided light positioned in the inner part of the boom.
SAFETY AND DURABILITY
Handrails ‐ Seat lever − Seat belt‐ Evacuation hammer• Anchor points· 3 mirrors · Horn‘ Blade cylinder supply hose in two parts • Complete protection of cylinders (boom, arm and blade) ● Hoses protected by abrasion resistant sleeves- Lockable covers Steel crawlers ■ Long arm (+250 mm)
