VIO 26-6 PR Yanmar excavator specs & dimensions (2017 - 2021)

Yanmar VIO 26-6 PR is a mini excavator manufactured from 2017 to 2021, with a weight of 2.56 tons. It features a track width of 25…

Yanmar VIO 26-6 PR is a mini excavator manufactured from 2017 to 2021, with a weight of 2.56 tons. It features a track width of 250 mm, a transport length of 4.12 meters, a transport width of 1.5 meters, and a transport height of 2.53 meters. The machine has a tear-out force of 24.5 kN, a dredging depth of 2.49 meters, and a maximum horizontal reach of 4.34 meters. Special equipment includes a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

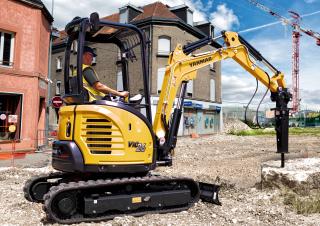

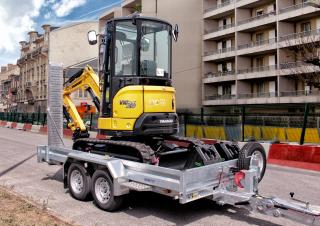

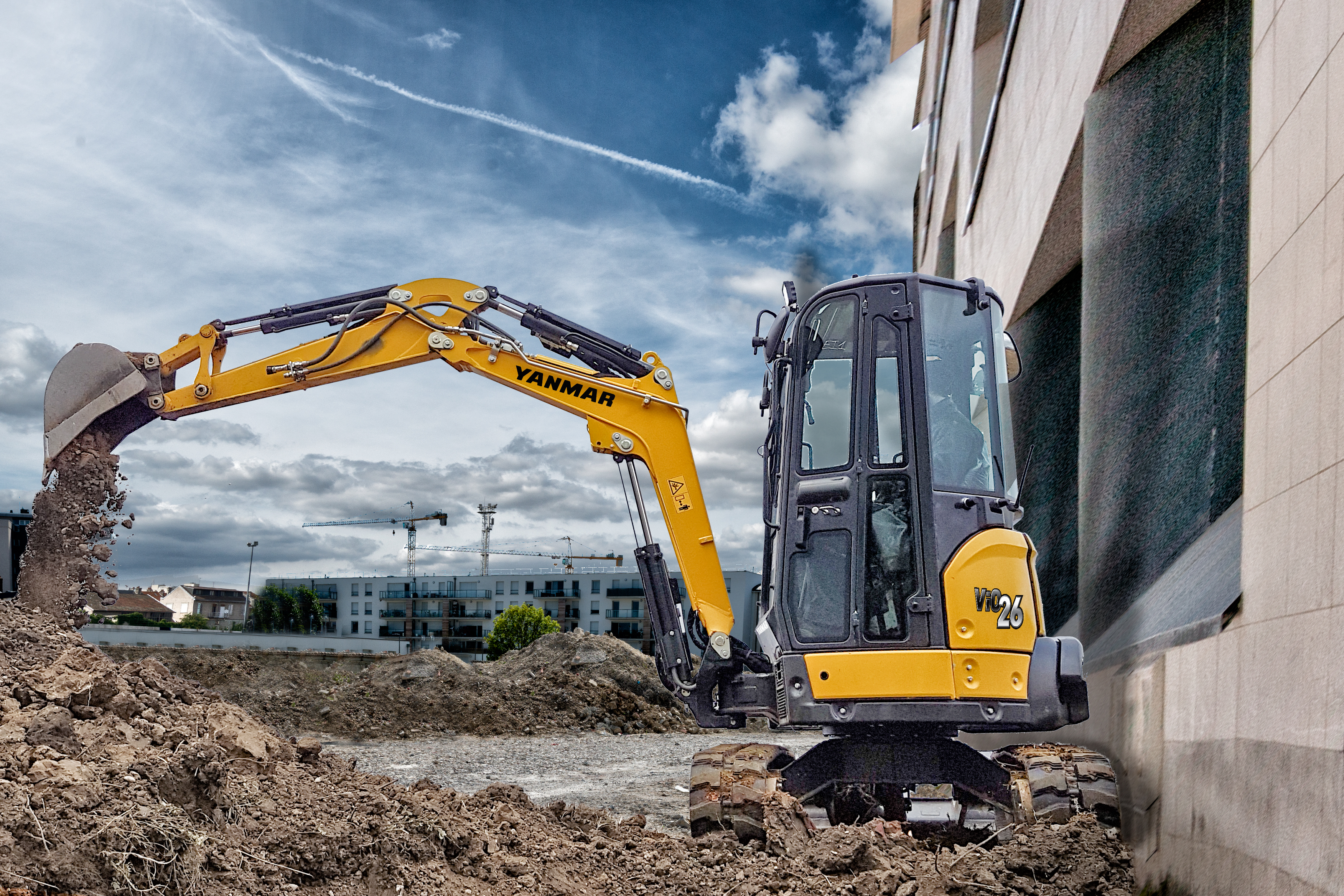

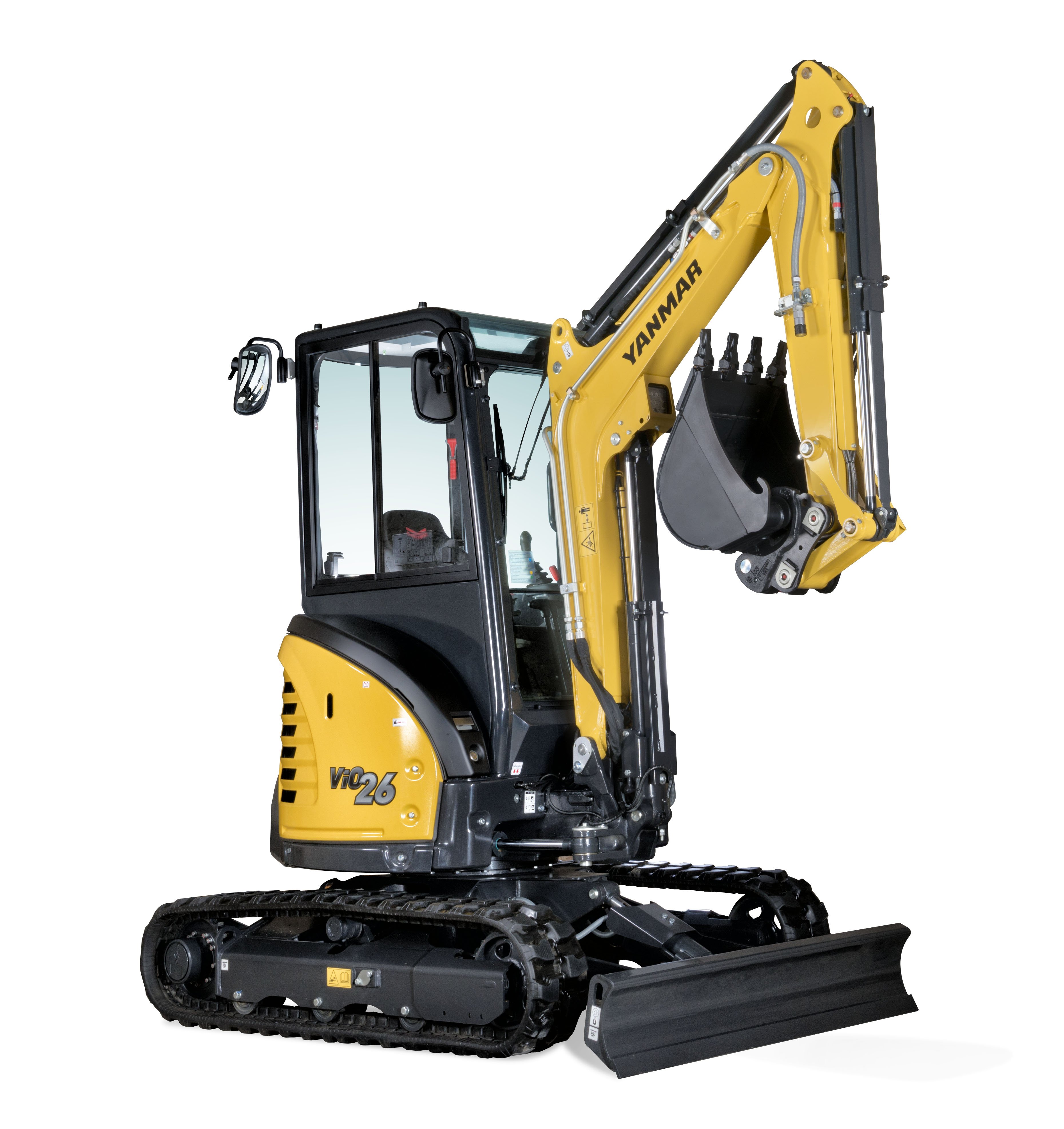

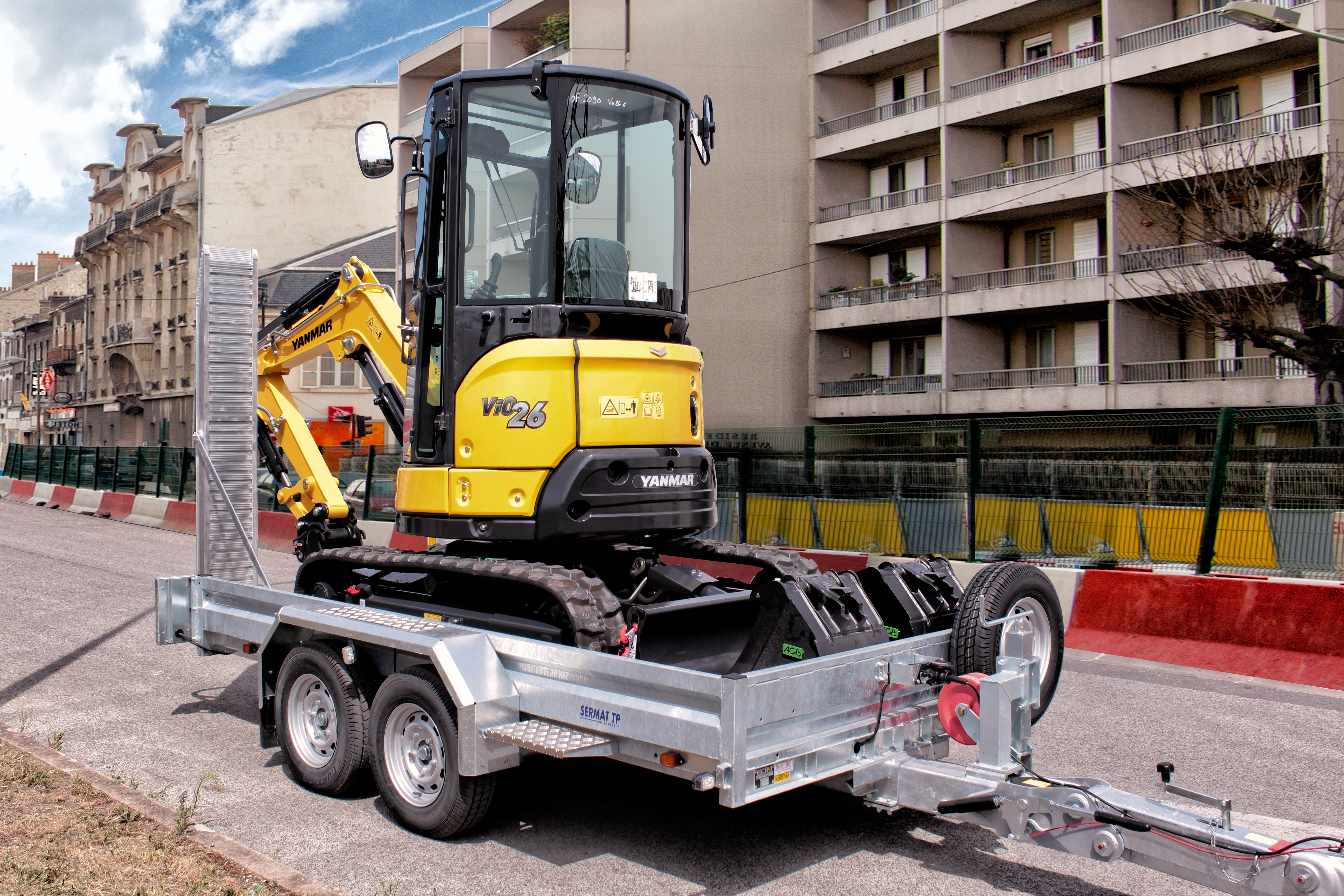

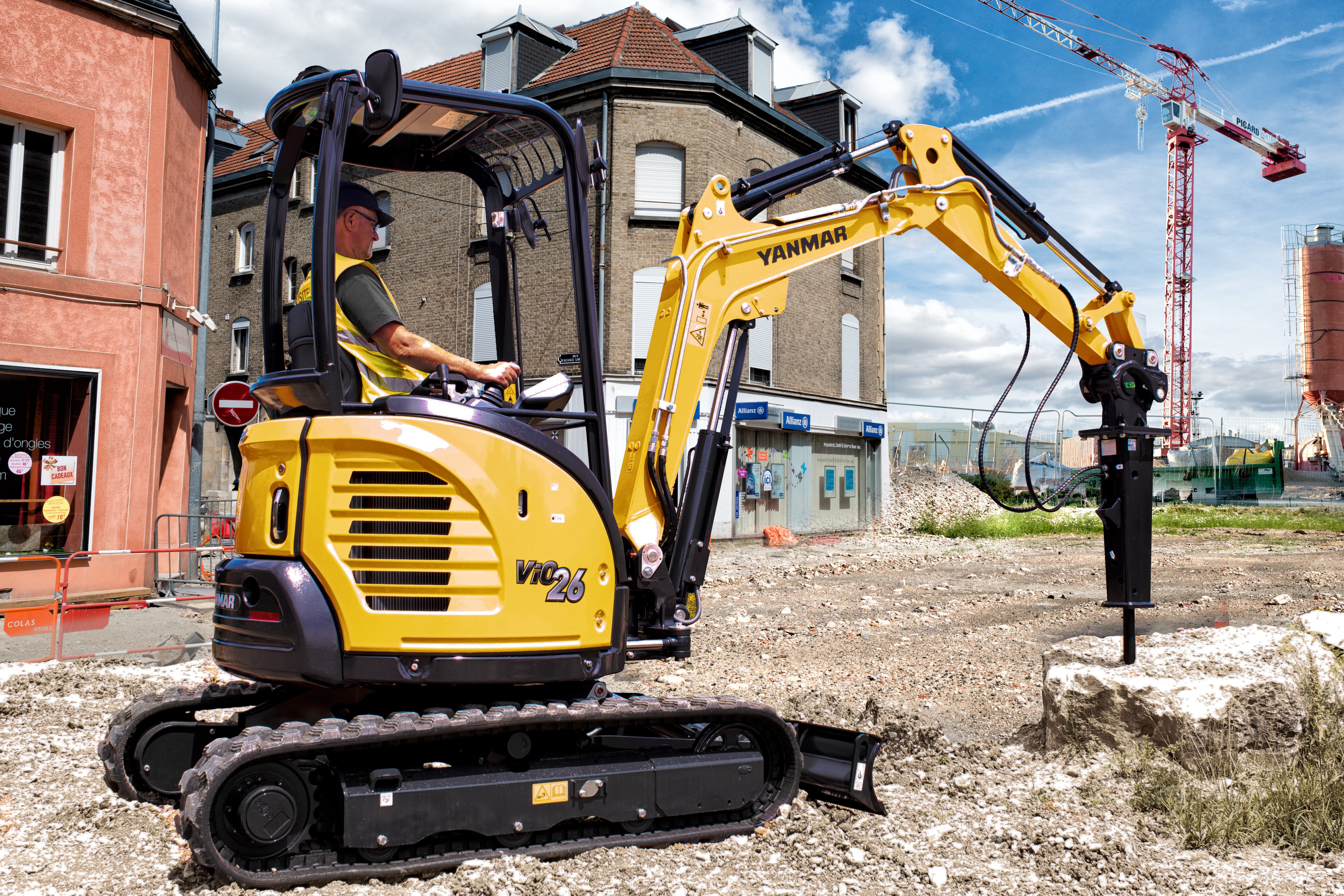

Mini Excavators Yanmar VIO 26-6 PR
Mini Excavators Yanmar VIO 26-6 PR
Mini Excavators Yanmar VIO 26-6 PR
Mini Excavators Yanmar VIO 26-6 PR
Mini Excavators Yanmar VIO 26-6 PR
Mini Excavators Yanmar VIO 26-6 PR
Mini Excavators Yanmar VIO 26-6 PR
Mini Excavators Yanmar VIO 26-6 PR
Mini Excavators Yanmar VIO 26-6 PR
Mini Excavators Yanmar VIO 26-6 PR

Technical specs - VIO 26-6 PR Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.56 t
Transport length
4.12 m
Transport width
1.5 m
Transport height
2.53 m
Track width
250 mm
Driver protection
FD
Max. Reach horizontal
4.34 m
Dredging depth
2.49 m
Tear-out force
24.5 kN
Model series
VIO
Engine manuf.
Yanmar
Engine type
3TNV76NBV
Engine power
15.2 kW
Displacement
1.115 l
Max. torque
69 Nm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Yanmar VIO 26-6 PR FAQ

When was the Yanmar VIO 26-6 PR manufactured?

The Yanmar VIO 26-6 PR was manufactured from 2017 to 2021.

How much does the Yanmar VIO 26-6 PR weigh?

The Yanmar VIO 26-6 PR weighs 2.56 tons.

What are the transport dimensions of the Yanmar VIO 26-6 PR mini excavator?

The Yanmar VIO 26-6 PR has a transport length of 4.12 meters, a transport width of 1.5 meters, and a transport height of 2.53 meters.

What is the track width of the Yanmar VIO 26-6 PR mini excavator?

The Yanmar VIO 26-6 PR mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Yanmar VIO 26-6 PR mini excavator?

The Yanmar VIO 26-6 PR mini excavator has a dredging depth of 2.49 meters and a maximum horizontal reach of 4.34 meters.

What power ratings are available for the Yanmar VIO 26-6 PR mini excavator?

There are no power ratings available for the Yanmar VIO 26-6 PR mini excavator in the provided data.

What operator protection feature does the Yanmar VIO 26-6 PR have?

The Yanmar VIO 26-6 PR has a canopy for driver protection.

How much is a Yanmar VIO 26-6 PR Mini excavator (2017u20132021) worth?

The residual value of the Yanmar VIO 26-6 PR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
