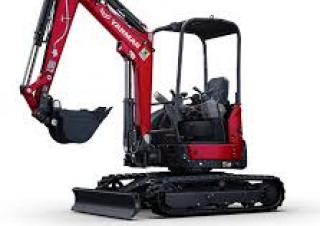

VIO 25 PR 4 Yanmar excavator specs & dimensions (2015 - 2017)

Yanmar VIO 25 PR 4 is a mini excavator manufactured from 2015 to 2017. It has a weight of 2.85 tons and a track width of 260 mm. T…

Yanmar VIO 25 PR 4 is a mini excavator manufactured from 2015 to 2017. It has a weight of 2.85 tons and a track width of 260 mm. The transport dimensions are 4.1 meters in length, 1.45 meters in width, and 2.53 meters in height. The dredging depth is 2.6 meters, and the maximum horizontal reach is 2.775 meters. This model is equipped with a blade and rubber tracks.

Mini Excavators Yanmar VIO 25 PR 4

Technical specs - VIO 25 PR 4 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.85 t
Transport length
4.1 m
Transport width
1.45 m
Transport height
2.53 m
Track width
260 mm
Driver protection
FD
Max. Reach horizontal
2.775 m
Dredging depth
2.6 m
Model series
VIO
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
15 kW
Displacement
1.115 l
Revolutions at max torque
2500 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Yanmar VIO 25 PR 4 FAQ

When was the Yanmar VIO 25 PR 4 manufactured?

The Yanmar VIO 25 PR 4 was manufactured from 2015 to 2017.

How much does the Yanmar VIO 25 PR 4 weigh?

The Yanmar VIO 25 PR 4 weighs 2.85 tons.

What are the transport dimensions of the Yanmar VIO 25 PR 4 mini excavator?

The Yanmar VIO 25 PR 4 has a transport length of 4.1 meters, a transport width of 1.45 meters, and a transport height of 2.53 meters.

What is the track width of the Yanmar VIO 25 PR 4 mini excavator?

The Yanmar VIO 25 PR 4 mini excavator has a track width of 260 mm.

What are the dredging depth and maximum horizontal reach of the Yanmar VIO 25 PR 4 mini excavator?

The Yanmar VIO 25 PR 4 mini excavator has a dredging depth of 2.6 meters and a maximum horizontal reach of 2.775 meters.

What operator safety and support features does the Yanmar VIO 25 PR 4 have?

The Yanmar VIO 25 PR 4 is equipped with a canopy for driver protection.

How much is a Yanmar VIO 25 PR 4 Mini excavator (2015u20132017) worth?

The residual value of the Yanmar VIO 25 PR 4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
