VIO 20 Yanmar excavator specs & dimensions (2007 - 2015)

Model rating
8,33 / 10

Yanmar VIO 20 is a mini excavator manufactured from 2007 to 2015, with a weight of 2.23 tons. It features a track width of 250 mm,…

Yanmar VIO 20 is a mini excavator manufactured from 2007 to 2015, with a weight of 2.23 tons. It features a track width of 250 mm, a transport length of 3.89 meters, a transport width of 1.38 meters, and a transport height of 2.46 meters. The dredging depth is 2.505 meters. Special equipment includes a blade and rubber track.

Mini Excavators Yanmar VIO 20
Mini Excavators Yanmar VIO 20
Mini Excavators Yanmar VIO 20
Mini Excavators Yanmar VIO 20
Mini Excavators Yanmar VIO 20
Mini Excavators Yanmar VIO 20
Mini Excavators Yanmar VIO 20
Mini Excavators Yanmar VIO 20
Mini Excavators Yanmar VIO 20
Mini Excavators Yanmar VIO 20

Technical specs - VIO 20 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.23 t
Transport length
3.89 m
Transport width
1.38 m
Transport height
2.46 m
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
2.74 m
Dredging depth
2.505 m
Model series
VIO
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
14.4 kW
Displacement
1.11 l
Max. torque
68.1 Nm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes

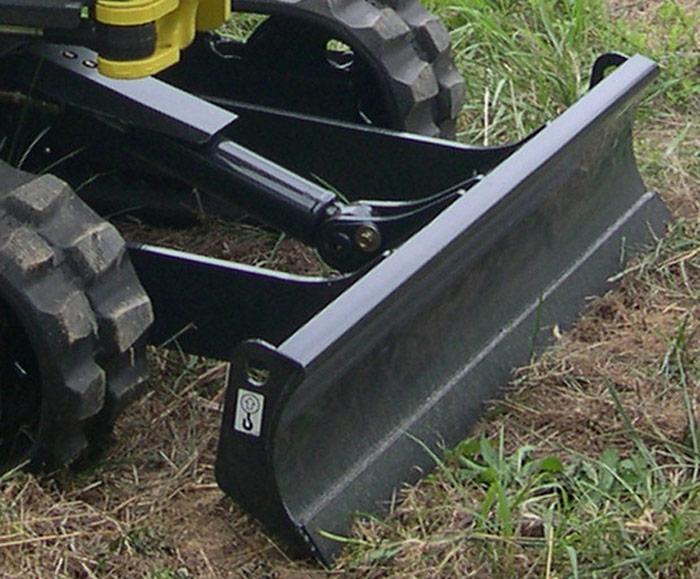

Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar VIO 20 FAQ

When was the Yanmar VIO 20 manufactured?

The Yanmar VIO 20 was manufactured from 2007 to 2015.

How much does the Yanmar VIO 20 weigh?

The Yanmar VIO 20 weighs 2.23 tons.

What are the transport dimensions of the Yanmar VIO 20 mini excavator?

The Yanmar VIO 20 has a transport length of 3.89 meters, a transport width of 1.38 meters, and a transport height of 2.46 meters.

What is the track width of the Yanmar VIO 20 mini excavator?

The Yanmar VIO 20 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Yanmar VIO 20 mini excavator?

The Yanmar VIO 20 mini excavator has a dredging depth of 2.505 meters and a maximum horizontal reach of 2.74 meters.

What operator safety feature does the Yanmar VIO 20 have?

The Yanmar VIO 20 has a cabin for driver protection.

How much is a Yanmar VIO 20 Mini excavator (2007u20132015) worth?

The residual value of the Yanmar VIO 20 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
