VIO 17 Univ Yanmar excavator specs & dimensions (2008 - 2015)

Model rating
3,00 / 10

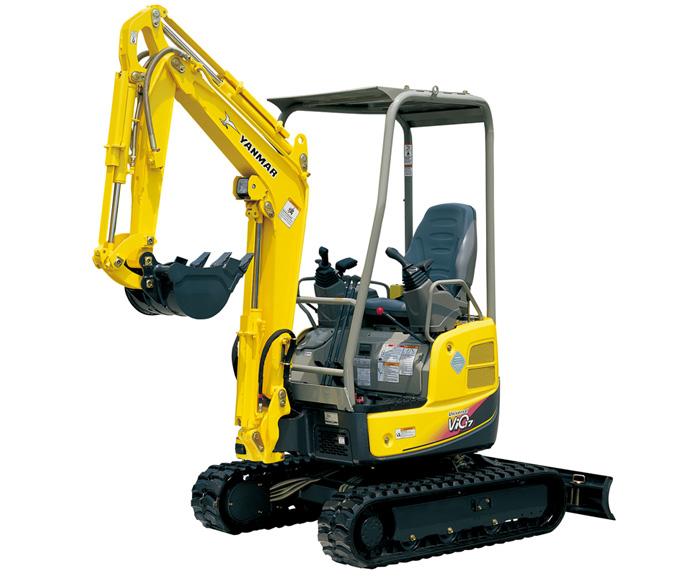

Yanmar VIO 17 Univ is a mini excavator manufactured from 2008 to 2015, with a weight of 1.74 tons. It features a track width of 23…

Yanmar VIO 17 Univ is a mini excavator manufactured from 2008 to 2015, with a weight of 1.74 tons. It features a track width of 230 mm, a transport length of 3.456 meters, a transport width of 0.95 meters, and a transport height of 2.29 meters. The excavator is equipped with a blade, rubber track, and track adjustment.

Mini Excavators Yanmar VIO 17 Univ
Mini Excavators Yanmar VIO 17 Univ
Mini Excavators Yanmar VIO 17 Univ
Mini Excavators Yanmar VIO 17 Univ
Mini Excavators Yanmar VIO 17 Univ
Mini Excavators Yanmar VIO 17 Univ
Mini Excavators Yanmar VIO 17 Univ
Mini Excavators Yanmar VIO 17 Univ
Mini Excavators Yanmar VIO 17 Univ
Mini Excavators Yanmar VIO 17 Univ

Technical specs - VIO 17 Univ Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.74 t
Transport length
3.456 m
Transport width
0.95 m
Transport height
2.29 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
2.63 m
Dredging depth
2.2 m
Model series
VIO
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
11.1 kW
Displacement
0.993 l
Max. torque
52.7 Nm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar VIO 17 Univ FAQ

When was the Yanmar VIO 17 Univ manufactured?

The Yanmar VIO 17 Univ was manufactured from 2008 to 2015.

How much does the Yanmar VIO 17 Univ weigh?

The Yanmar VIO 17 Univ weighs 1.74 tons.

What are the transport dimensions of the Yanmar VIO 17 Univ mini excavator?

The Yanmar VIO 17 Univ has transport dimensions of 3.46 meters in length, 0.95 meters in width, and 2.29 meters in height.

What is the track width of the Yanmar VIO 17 Univ mini excavator?

The Yanmar VIO 17 Univ mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Yanmar VIO 17 Univ mini excavator?

The Yanmar VIO 17 Univ mini excavator has a dredging depth of 2.2 meters and a maximum horizontal reach of 2.63 meters.

What operator safety and support features does the Yanmar VIO 17 Univ have?

The Yanmar VIO 17 Univ is equipped with a canopy for driver protection.

How much is a Yanmar VIO 17 Univ Mini excavator (2008u20132015) worth?

The residual value of the Yanmar VIO 17 Univ depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
3,00 / 10
Quotation mark

Yanmar VIO 17 Univ user from Norway

Easy to operate

Yanmar VIO 17 Univ overview

Engine / Driveline and transmission

Allows fueling in an easy posture.
The fill opening is located in front of the control lever on the right hand side. The mini excavator can easily be refuelled from a polyethylene fuel tank placed onto the driver's seat floor.

Hydraulics

Top-level Work Performance in This Class
The best matching of the engine hydraulic system provides extremely high power for this class, thus showing a high performance. L i f t i n g C a p a c i t y Bucket Digging Force
3 Hydraulic Pump System
Fulfilling the Comfortable Operating Performance with the equivalent level of its upper grades.

Tyres / Tracks

True Zero Tail Swing, No Bother at the Rear
Side-ditch digging up to the wall without sticking past the track.

Dimensions and weight

ModelVio17
TypeCanopy
Operating weightRubber tracklbs (kg)3836 (1740)
EngineType-Water-cooled 3 cycle diesel
Model-3TNV70-XBV
Outputhp (kW) / RPM13.5 (10.1) / 2200
PerformanceMax digging forcebucket / arm"lbs (kN)3417 (15.2) / 1918(8.5)
Traveling speedMPH (km / h)2.7/ 1.3 (4.3/2.1)
Swing speedRPM9.5
Boom swing angle (L / R)"degrees42 / 65
Ground contact pressure Hydraulic systemRubber trackPSI (kPa)4.1 (28.6)
Pump capacityGPM4.6+4.6+3.5+2.6
(L / min)17.6+17.6+13.2+11.2
Main relief set pressurePSI (MPa)2987 (20.6)
UndercarriageTrack type-Rubber
Blade dimensionsWidth x heightft-in (mm)4'2""/3'1""x9""(1280 / 950x235)"
Fuel tank capacityGals (L)5.3 (20)
LIFT POINT HEIGHT（r） LIFT RADIUS In.（mm） .（r） LIFT RADIUS. In.（mm）（r） LIFT RADIUS. In.（mm）
h:in（mm）RATED LIFT CAPACITY OVER END BLADE DOWN lbs（kg）RATED LIFT CAPACITY OVER END BLADE UP lbs（kg）RATED LIFT CAPACITY OVER SIDE BLADE UP lbs（kg）
MAX98.5（2500）78.7（2000）MINMAX98.5（2500）78.7（2000）MINMAX98.5（2500）78.7（2000）MIN
78.7 （2000）749（340）705（320）496（225）694（315）518（235）694（315）
59.1 （1500）771（350）815（370）* 936（425）451（205）672（305）925（420）473（215）815（370）936（425）
39.4 （1000）804（365）992（450）号 1311（595）1466（665）407（185）628（285）903（410）1157（525）440（200）650（295）959（435）1212（550）
19.7 （500）+ 826（375）1157（525）* 1631（740）2028（920）407（185）617（280）859（390）1036（470）440（200）650（295）914（415）1102（500）
Ground （0）859（390）1212（550）* 1686（765）* 2314（1050）418（190）584（265）804（365）1146（520）451（205）628（285）848（385）1091（495）
-19.7 （-500）903（410） *1201（545）1620（735）462（210）573（260）782（355）496（225）617（280）848（385）
-39.4 （-1000）925（420）1499（680）551（250）826（375）584（265）892（405）

Other features

All manuals are right there!
The space under the seat accommodates operating guides, journals and brochures with ease.

Safety

Broad Range of Sight for Safe and Comfortable Operation
The standard, light canopy features ROPS and FOPS to protect the operator in case of rollovers and falling objects. No wall hinders visibility. Work is safe and efficient.
Meets international protection standards to ensure safer work than ever before.
Easier & more comfortable operation! ROPS: Rollover Protection System FOPS: Falling-Object Protection System

Tables

Model Vio17
SpecificationsOutputPSI (Mpa)GPM (L / min)
2200RPM1250RPM
