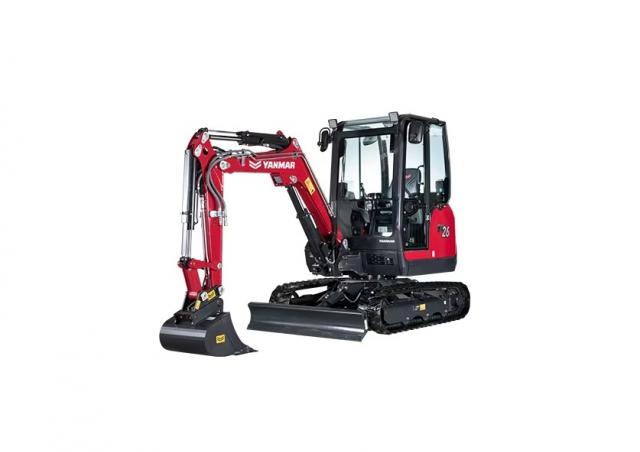

SV26 Yanmar excavator specs & dimensions (2024 - 2026)

Weight: 2.74t – Transport length: 4.47m – Transport width: 1.55m – Transport height: 2.44m – Track width: 250mm – Driver protectio…

Weight: 2.74t – Transport length: 4.47m – Transport width: 1.55m – Transport height: 2.44m – Track width: 250mm – Driver protection: Kb

Check out detailed specifications, information and technical data for Yanmar SV26 excavator manufactured between 2024 - 2026. Get more in-depth insight with Yanmar SV26 digger specifications. See information, like: Weight: 2.74t – Transport length: 4.47m – Transport width: 1.55m – Transport height: 2.44m – Track width: 250mm – Driver protection: Kb and more.

SV26

Years of manufacture: 2024—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - SV26 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.74 t

Transport length: 4.47 m

Transport width: 1.55 m

Transport height: 2.44 m

Track width: 250 mm

Driver protection: Kb

Max. Reach horizontal: 4.34 m

Dredging depth: 2.69 m

Tear-out force: 24.5 kN

Model series: SV

Engine manuf.: Yanmar

Engine type: 3TNV82A-BPBVA

Engine power: 17.6 kW

Displacement: 1.331 l

Revolutions at max torque: 2400 rpm

Max. torque: 85,5/1400 Nm

No. of cylinders: 3

Emission level: V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Yanmar SV26 FAQ

When was the Yanmar SV26 manufactured?

The Yanmar SV26 was first produced in 2024.

How much does the Yanmar SV26 mini excavator weigh?

The Yanmar SV26 mini excavator weighs 2.74 tons.

What are the transport dimensions of the Yanmar SV26 mini excavator?

The Yanmar SV26 has a transport length of 4.47 meters, a transport width of 1.55 meters, and a transport height of 2.44 meters.

What is the track width of the Yanmar SV26 mini excavator?

The Yanmar SV26 mini excavator has a track width of 250 mm.

What are the dredging depth and maximum horizontal reach of the Yanmar SV26 mini excavator?

The Yanmar SV26 mini excavator has a dredging depth of 2.69 meters and a maximum horizontal reach of 4.34 meters.

What is the tear-out force of the Yanmar SV26 mini excavator?

The Yanmar SV26 mini excavator has a tear-out force of 24.5 kN.

What operator safety features does the Yanmar SV26 have?

The Yanmar SV26 has a cabin for driver protection.
