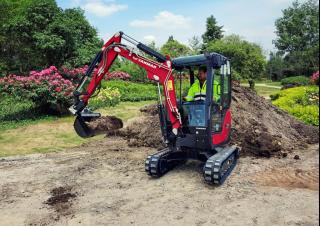

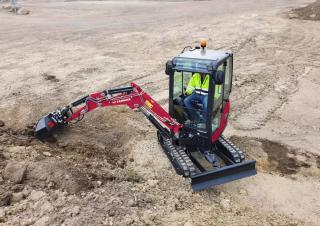

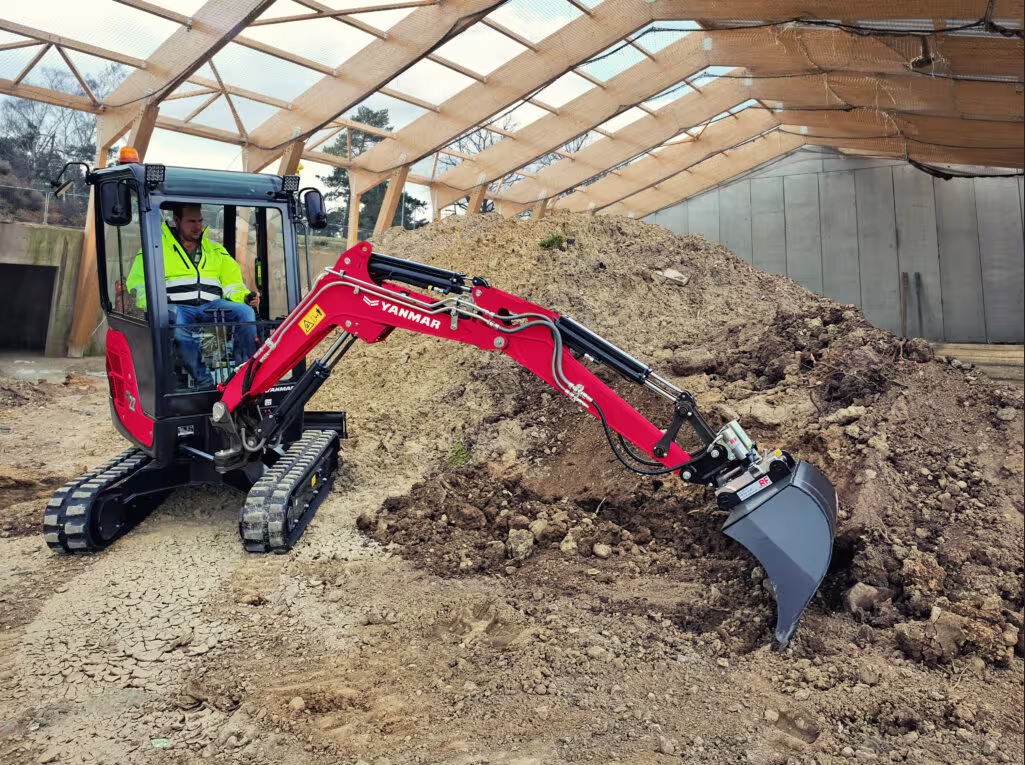

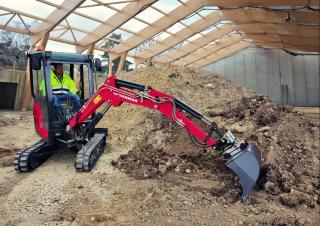

SV22 Yanmar excavator specs & dimensions (2022 - 2025)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - SV22 Yanmar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.26 t
- Transport length
- 4.09 m
- Transport width
- 1.38 m
- Transport height
- 2.36 m
- Track width
- 250 mm
- Driver protection
- Kb
- Max. Reach horizontal
- 4.13 m
- Dredging depth
- 2.65 m
- Tear-out force
- 19 kN
- Model series
- SV
- Engine manuf.
- Yanmar
- Engine type
- 3TNV76-SBVA2
- Engine power
- 13.4 kW
- Displacement
- 1.116 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 69/1600 Nm
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
