SV22 Yanmar excavator specs & dimensions (2022 - 2025)

Weight: 2.12t – Transport length: 4.09m – Transport width: 1.38m – Transport height: 2.32m – Track width: 250mm – Driver protectio…

Weight: 2.12t – Transport length: 4.09m – Transport width: 1.38m – Transport height: 2.32m – Track width: 250mm – Driver protection: FD

Check out detailed specifications, information and technical data for Yanmar SV22 excavator manufactured between 2022 - 2025. Get more in-depth insight with Yanmar SV22 digger specifications. See information, like: Weight: 2.12t – Transport length: 4.09m – Transport width: 1.38m – Transport height: 2.32m – Track width: 250mm – Driver protection: FD and more.

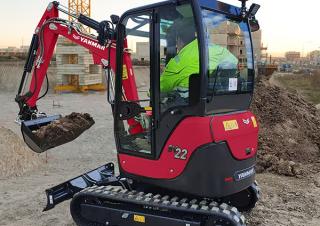

Mini Excavators Yanmar SV22

Technical specs - SV22 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.12 t
Transport length
4.09 m
Transport width
1.38 m
Transport height
2.32 m
Track width
250 mm
Driver protection
FD
Max. Reach horizontal
4.13 m
Dredging depth
2.65 m
Tear-out force
19 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
3TNV76-SBVA2
Engine power
13.4 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
Max. torque
69/1600 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV22 FAQ

When was the Yanmar SV22 manufactured?

The Yanmar SV22 was first produced in 2024.

How much does the Yanmar SV22 mini excavator weigh?

The Yanmar SV22 mini excavator weighs 2.12 tons.

What are the transport dimensions of the Yanmar SV22 mini excavator?

The Yanmar SV22 has a transport length of 4.09 meters, a transport width of 1.38 meters, and a transport height of 2.32 meters.

What is the track width of the Yanmar SV22 mini excavator?

The Yanmar SV22 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Yanmar SV22 mini excavator?

The Yanmar SV22 mini excavator has a dredging depth of 2.65 meters and a maximum horizontal reach of 4.13 meters.

What is the tear-out force of the Yanmar SV22 mini excavator?

The Yanmar SV22 mini excavator has a tear-out force of 19 kN.

What operator safety and support features does the Yanmar SV22 have?

The Yanmar SV22 is equipped with a canopy for driver protection.

How much is a Yanmar SV22 Mini excavator (2024u20132025) worth?

The residual value of the Yanmar SV22 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
