SV17 EX Yanmar excavator specs & dimensions (2006 - 2015)

Yanmar SV 17 EX is a mini excavator manufactured from 2006 to 2015, with a weight of 1.8 tons. It features a track width of 230 mm…

Yanmar SV 17 EX is a mini excavator manufactured from 2006 to 2015, with a weight of 1.8 tons. It features a track width of 230 mm, a transport length of 3.66 meters, a transport width of 0.98 meters, and a transport height of 2.26 meters. The excavator is equipped with a blade, rubber track, and track adjustment.

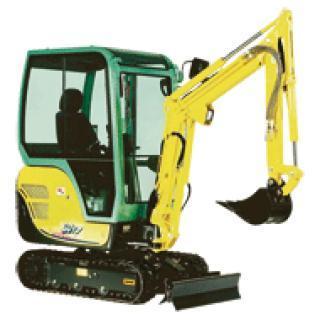

Mini Excavators Yanmar SV17 EX

Technical specs - SV17 EX Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Transport length
3.66 m
Transport width
0.98 m
Transport height
2.26 m
Track width
230 mm
Max. Reach horizontal
2.76 m
Dredging depth
2.4 m
Model series
SV
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
9.6 kW
Displacement
0.854 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV17 EX FAQ

When was the Yanmar SV17 EX manufactured?

The Yanmar SV17 EX was manufactured from 2006 to 2015.

How much does the Yanmar SV17 EX weigh?

The Yanmar SV17 EX weighs 1.8 tons.

What are the transport dimensions of the Yanmar SV17 EX mini excavator?

The Yanmar SV17 EX has a transport length of 3.66 meters, a transport width of 0.98 meters, and a transport height of 2.26 meters.

What is the track width of the Yanmar SV17 EX mini excavator?

The Yanmar SV17 EX mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Yanmar SV17 EX mini excavator?

The Yanmar SV17 EX mini excavator has a dredging depth of 2.4 meters and a maximum horizontal reach of 2.76 meters.
