SV08-1C Yanmar excavator specs & dimensions (2021 - 2026)

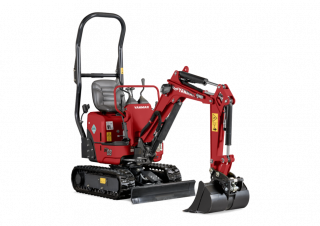

Yanmar SV08-1C is a mini excavator manufactured since 2021, with a weight of 1.035 tons. It features a track width of 180 mm, a tr…

Yanmar SV08-1C is a mini excavator manufactured since 2021, with a weight of 1.035 tons. It features a track width of 180 mm, a transport length of 2.6 meters, a transport width of 0.84 meters, and a transport height of 2.2 meters. The dredging depth is 1.46 meters, and the maximum horizontal reach is 2.73 meters.

SV08-1C

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - SV08-1C Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.035 t

Transport length: 2.6 m

Transport width: 0.84 m

Transport height: 2.2 m

Track width: 180 mm

Driver protection: Ü

Max. Reach horizontal: 2.73 m

Dredging depth: 1.57 m

Tear-out force: 10 kN

Model series: SV

Engine manuf.: N/A

Engine type: 402J-05 IG84555R

Engine power: 7.5 kW

Displacement: 0.507 l

Revolutions at max torque: 2400 rpm

Max. torque: 31,5/2000 Nm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Yanmar SV08-1C FAQ

When was the Yanmar SV08-1C manufactured?

The Yanmar SV08-1C was first produced in 2021.

How much does the Yanmar SV08-1C mini excavator weigh?

The Yanmar SV08-1C mini excavator weighs 1.04 tons.

What are the transport dimensions of the Yanmar SV08-1C mini excavator?

The Yanmar SV08-1C has a transport length of 2.6 meters, a transport width of 0.84 meters, and a transport height of 2.2 meters.

What is the track width of the Yanmar SV08-1C mini excavator's undercarriage?

The Yanmar SV08-1C mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Yanmar SV08-1C mini excavator?

The Yanmar SV08-1C has a dredging depth of 1.57 meters and a maximum horizontal reach of 2.73 meters.

What is the tear-out force of the Yanmar SV08-1C mini excavator?

The Yanmar SV08-1C mini excavator has a tear-out force of 10 kN.

What operator safety features does the Yanmar SV08-1C have?

The Yanmar SV08-1C is equipped with a roll-over bar for driver protection.

How much is a Yanmar SV08-1C Mini excavator (2021u20132025) worth?

The residual value of the Yanmar SV08-1C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Yanmar SV08-1C overview

Yanmar SV08-1C features overview

BEST COMPONENTS
Designed with components of high quality reputation, designed and built for machine performance and durability.
PERFORMANCE
The choice of high quality powerline components drives excellent performance. Exceptional productivity is achieved through the optimal combination of excavation forces and work cycles.
BEST COMPONENTS
All SV08-1C components are designed to optimize reliability, durability and performance in demanding applications with positive effects on TCO.

Engine / Driveline and transmission

The SV08-1C is equipped with a Perkins 402j-05 diesel engine ig84555r, delivering an output of 7.5 kw and a maximum torque of 31.5 Nm. This engine is very quiet and features excellent exhaust gas performances. The SV08 hydraulic system is driven by a double gear pump; it delivers 2 x 9.8 l/min under high working pressure of 185 sticks to increase the productivity and speed of the machine in the work process. Two-acting auxiliary hydraulic circuit (PTO1) for operating various accessories parts (swivelable ditch cleaning bucket...). Pedal lock for use with manual hydraulic tools.

Tyres / Tracks

With the undercarriage completely extended, the machine overhang is only 305 mm.
Minimal front swing radius, with boom swing, is 985 mm. Rear swing radius is only 725 mm.
SIMPLE FOLDING EXTENDABLE BLADE
Foldable blade extensions are firmly attached to the blade. In order to be able to quickly change the width of the blade, no tools are required. No danger for loss of blade extensions. Retracted undercarriage 680 mm - Best manoeuvrability Extended undercarriage 840 mm Increased stability

Dimensions and weight

Operating weight	1035 kg
Engine	402J-05 IG84555R
Tear-out force	5	9 kN"
Breakout force	10 kN

A	Overall length	2600 mm	H Overall blade width	680 - 840 mm*
B	Overall height	2200 mm	I Overall blade height	165 mm
C	Overall width	680 - 840 mm*	J Blade distance	820 mm
D	Length of track on ground	900 mm	K Max. blade height above the ground	160 mm
E	Undercarriage length	1220 mm	L Max. lowering blade depth	210 mm
F	Lane	500 - 660 mm*	M Minimum ground clearance	130 mm

N	Max. digging depth - Blade lifted	1460 mm	U Boom swinging base to left	45°
O	Max. digging depth - Blade lowered	1570 mm	V Boom swinging base to right	85°
P	Max. digging reach on ground	2730 mm	W Arm length	670 mm
Q	Max. digging reach	2830 mm	X Minimum front swing radius	1210 mm
R	Max vertical wall	1160 mm	Y Minimum front swing radius with boom swing	985 mm
S	Max. dumping height	1940 mm	Z Rear swing radius	725 mm

	Weight	Ground pressure
Operating weight (rubber crawlers)	1035 kg	0	28 kg/cm²"
Transport weight (rubber crawlers)	960 kg	0	26 kg/cm²"

Other features

ERGONOMY
Easy access to control levers and easy operation. Access to the operator seat is possible from either side of the machine.
DESIGN
Many easy-to-use features include the comfortable seat with retractable seat belt, delicate lever controls, a foot rest and uncomplicated lever arrangement. Separate pedals for the 3rd hydraulic circuit (PTO) and boom oscillation. Both pedals can be folded sideways to give the operator more footprint available. Complete monitor with safety alarm. Access to the operating range from both sides of the machine.
SAFETY
The SV08-1C is standard equipped with a ROPS guard frame, which can be folded back to facilitate travel. Hook on the boom for raising the machine only from one single spot. Safety levers to lock up the 4 main functions of the machine and safe in/off operating seat. Security bar in front of the machine's main control console.

Safety

RELIABILITY
The SV08-1C benefits from robust guards that improve its durability and Total Cost of Ownership: Centralized line flexible hoses for eliminating torsional problems. Flexible hoses protected by external covers. Hydraulic hoses are protected to the swing motors with steel jackets. Hydraulic hoses are routed under the cylinder in order to protect against accidental damage. Protection of boom and blade cylinder rods. Wide counterweight to protect the rear upper frame of the machine.

Tables

	Blade down		Blade up
A,Maxi,"2,0m	1,5m",Mini,A,Maxi,"2,0m	1,5m",Mini
B	N	W		N	W		N	W		N	W		B	N	W		N	W		N	W		N	W


2	0"	120	160	*220	-	-	-	-	-	-	-	-	-	2	0"	120	160	190	-	-	-	-	-	-	-	-	-
1	5"	90	120	*220	100	140	*220	160	220	*270	-	-	-	1	5"	90	130	150	100	140	190	160	200	*240	-	-	-
1	0"	80	110	*230	100	150	*260	160	200	*350	200	270	*490	1	0"	80	110	130	100	140	170	150	210	250	190	280	340
0	5"	80	110	*240	100	130	*300	150	200	*470	180	240	*590	0	5"	70	110	130	100	170	170	140	200	250	170	230	310
0	80	110	*240	100	130	*320	160	200	*480	180	250	*630	0	80	110	120	90	140	170	140	190	230	160	240	310
-0	5"	100	130	*260	100	130	*380	140	200	*430	-	-	-	-0	5"	90	130	160	90	130	170	140	200	250	-	-	-
-1	0"	170	*230	*230	-	-	-	-	-	-	-	-	-	-1	0"	150	*210	*230	-	-	-	-	-	-	-	-	-

Travel speed (Low/High)	1	8 km/h"
Rotation speed	8	4 rpm"
Tear-out force	5	9 kN"
Breakout force	10 kN
Grade ability	30°
Noise level (2000/14/CE & 2005/88/CE)	92 dBA

Fuel tank	9	7 l"
Coolant	2 l
Engine oil	1	7 l"
Hydraulic circuit	10	7 l"
Hydraulic tank	5	7 l"

Type	402J-05 IG84555R
Fuel	Diesel
Net power	7	5 kW / 10	1 HP / 2 400 rpm"
Gross power	7	7 kW / 2 400 rpm"
Displacement	507 cm3
Maximum torque	31	5 N.m. / 2 000 rpm"
Cooling	Liquid
Starter	12 V – 1	2 kW"
Battery	12 V – 30 Ah
Alternator	12 V – 14 A

Maximum pressure	185 bar
1 double gear pump	2 x 9	8 l/min"
