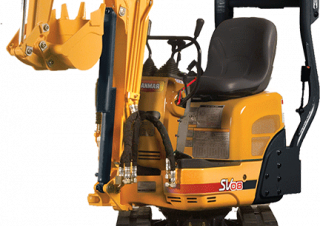

SV08-1B Yanmar excavator specs & dimensions (2019 - 2021)

Yanmar SV08-1B is a mini excavator manufactured from 2019 to 2021. It has a weight of 1.06 tons, a transport length of 2.6 meters,…

Yanmar SV08-1B is a mini excavator manufactured from 2019 to 2021. It has a weight of 1.06 tons, a transport length of 2.6 meters, a transport width of 0.68 meters, and a transport height of 2.2 meters. The machine features a tear-out force of 6.2 kN, a dredging depth of 1.4 meters, and a maximum horizontal reach of 2.7 meters. The bucket capacity is a minimum of 0.1 cubic meters.

Mini Excavators Yanmar SV08-1B

Technical specs - SV08-1B Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.06 t
Transport length
2.6 m
Transport width
0.68 m
Transport height
2.2 m
Bucket capacity min.
0.1 m³
Driver protection
FD
Max. Reach horizontal
2.7 m
Dredging depth
1.4 m
Tear-out force
6.2 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
2TE67L-BV4
Engine power
7.7 kW
Emission level
Tier 4

More technical details, like: bucket capacity, bucket capacity max., bucket width, track width, standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV08-1B FAQ

When was the Yanmar SV08-1B manufactured?

The Yanmar SV08-1B was manufactured from 2019 to 2021.

How much does the Yanmar SV08-1B weigh?

The Yanmar SV08-1B weighs 1.06 tons.

What are the transport dimensions of the Yanmar SV08-1B mini excavator?

The Yanmar SV08-1B has a transport length of 2.6 meters, a transport width of 0.68 meters, and a transport height of 2.2 meters.

What are the excavation specifications of the Yanmar SV08-1B mini excavator?

The Yanmar SV08-1B has a dredging depth of 1.4 meters and a maximum horizontal reach of 2.7 meters.

What is the tear-out force of the Yanmar SV08-1B mini excavator?

The Yanmar SV08-1B mini excavator has a tear-out force of 6.2 kN.

What is the minimum bucket capacity of the Yanmar SV08-1B mini excavator?

The minimum bucket capacity of the Yanmar SV08-1B mini excavator is 0.1 cubic meters.

What operator safety and support features does the Yanmar SV08-1B have?

The Yanmar SV08-1B is equipped with a canopy for driver protection.

How much is a Yanmar SV08-1B Mini excavator (2019u20132021) worth?

The residual value of the Yanmar SV08-1B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Yanmar SV08-1B overview

Hydraulics

SV08-1B
POWERFUL, EFFICIENT 10.3-HP TIER 4 FINALYANMAR DIESEL ENGINE ZWEI WEG CONTROL PATTERN CHANGE STANDARD AURXILIARY HYDRAULIKEN W/ PROPORTIONAL CONTROL VARIABLE UNDERCARRIAGE Improves STABILITY SOPERATOR PEACED, UNCOMPLICATED LEVER CONTROLS COMFORTABLE OPERATOR SITE PREPARED BOOMCYLINDER AND HYDRAULICAL STRUC

Dimensions and weight

LIFT POINTr:REACH in (mm)
HEIGHT h:in (mm)RATED LIFT CAPACITY OVER END BLADE DOWN lbs (kg)RATED LIFT CAPACITY OVER END BLADE UP lbs (kg)RATED LIFT CAPACITY OVER SIDE BLADE DOWN lbs (kg)
MAX6´7˝ (2000)4´11˝ (1500)MINMAX6´7˝ (2000)4´11˝ (1500)MINMAX6´7˝ (2000)4´11˝ (1500)MIN
6´7˝(2000)*485(220)419(190)353(160)
4´11˝(1500)*485(220)*485(220)*595(270)331(150)375(170)*529(240)265(120)331(150)441(200)
3´3˝(500)*507(230)*573(260)*772(350)*1080(490)287(130)375(170)617(280)838(380)243(110)309(140)507(230)662(300)
1´8˝(500)*529(240)*662(300)*1036(470)*1301(590)287(130)375(170)573(260)706(320)221(100)287(130)463(210)573(260)
Ground(0)*529(240)*706(320)*1058(480)*1389(630)309(140)375(170)573(260)750(340)243(110)287(130)463(210)595(270)
-1´8˝(-500)*573(260)*617(280)*948(430)375(170)353(160)595(270)287(130)287(130)463(210)
-3´3˝(-1000)*507(230)*507(230)*463(210)

Tables

EngineType -Water-cooled 2-cylinder diesel
Model-YANMAR 2TE67L-BV4
Output HP (kW)/rpm10.3 (7.7) / 2800
PerformanceMax Digging Force Bucket / Arm lbs (kN)"2360 (10.5) / 1390 (6.2)
Traveling SpeedMPH (km / h)1.2 (1.8)
Swing SpeedRPM8.4
Boom Swing Angle (L / R)"degrees45°/90°
Ground Contact Pressure (Rubber Track)PSI (kPa)4.15 (28.4)
Hydraulic SystemPump CapacityGPM (L / min)2.59 (9.7) x 2
Main Relief Set PressurePSI (MPa)2625 (18.1) x 2
Blade DimensionsWidth x heightft-in (mm)2´3˝/2´9˝ x 7˝ (680/840 x 180)
Fuel tank capacityGals (L)2.6(10)
ModelSV08-1B
OutputPSI (MPa)GPM (L / min)
Specification2400RPM
Combined Flow Double Actions"2625 (18.1)5.2 (19.6)
