SV 20 Yanmar excavator specs & dimensions (2009 - 2015)

Yanmar SV 20 is a mini excavator manufactured from 2009 to 2015, with a weight of 2.13 tons. It features a track width of 250 mm, …

Yanmar SV 20 is a mini excavator manufactured from 2009 to 2015, with a weight of 2.13 tons. It features a track width of 250 mm, a transport length of 3.78 meters, a transport width of 1.38 meters, and a transport height of 2.39 meters. The excavator is equipped with a blade and rubber tracks.

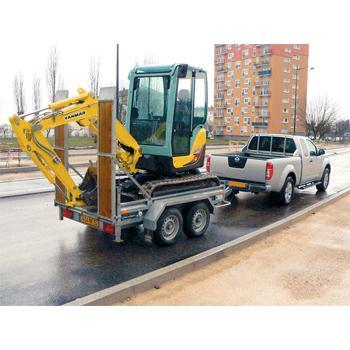

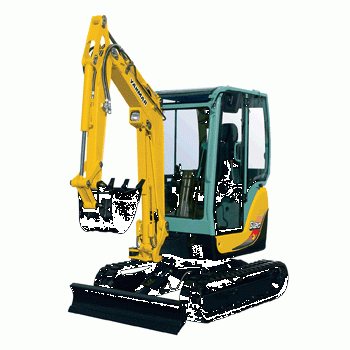

Mini Excavators Yanmar SV 20
Mini Excavators Yanmar SV 20
Mini Excavators Yanmar SV 20
Mini Excavators Yanmar SV 20

Technical specs - SV 20 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.13 t
Transport length
3.78 m
Transport width
1.38 m
Transport height
2.39 m
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
2.76 m
Dredging depth
2.48 m
Model series
SV
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13 kW
Displacement
1.115 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV 20 FAQ

When was the Yanmar SV 20 manufactured?

The Yanmar SV 20 was manufactured from 2009 to 2015.

How much does the Yanmar SV 20 mini excavator weigh?

The Yanmar SV 20 mini excavator weighs 2.13 tons.

What are the transport dimensions of the Yanmar SV 20 mini excavator?

The Yanmar SV 20 has a transport length of 3.78 meters, a transport width of 1.38 meters, and a transport height of 2.39 meters.

What is the track width of the Yanmar SV 20 mini excavator?

The Yanmar SV 20 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Yanmar SV 20 mini excavator?

The Yanmar SV 20 mini excavator has a dredging depth of 2.48 meters and a maximum horizontal reach of 2.76 meters.

What operator safety and support features does the Yanmar SV 20 have?

The Yanmar SV 20 provides operator safety with a protective cabin.
