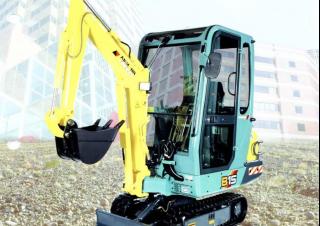

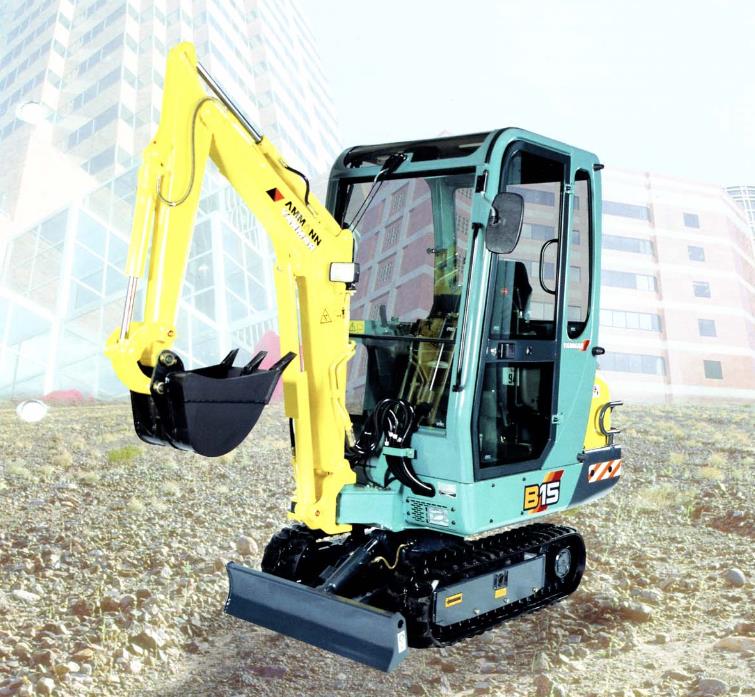

B 15-3 Yanmar excavator specs & dimensions (2001 - 2006)

Model rating
7,57 / 10

Yanmar B 15-3 is a mini excavator manufactured from 2001 to 2006, with a weight of 1.5 t. It features a track width of 200 mm and …

Yanmar B 15-3 is a mini excavator manufactured from 2001 to 2006, with a weight of 1.5 t. It features a track width of 200 mm and a transport width of 1 m. The maximum bucket capacity is 0.039 m³. Special equipment includes a blade and rubber track.

Mini Excavators Yanmar B 15-3

Technical specs - B 15-3 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.5 t
Transport width
1 m
Bucket capacity max.
0.039 m³
Track width
200 mm
Driver protection
FD
Dredging depth
2.1 m
Model series
B
Engine manuf.
Yanmar
Engine type
3TNE68
Engine power
10 kW
Revolutions at max torque
2300 rpm

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket width, standard tyres, max. reach horizontal, tear-out force, dimension lxwxh, displacement, max. torque, no. of cylinders...

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket width, standard tyres, max. reach horizontal, tear-out force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar B 15-3 FAQ

When was the Yanmar B 15-3 manufactured?

The Yanmar B 15-3 was manufactured from 2001 to 2006.

How much does the Yanmar B 15-3 mini excavator weigh?

The Yanmar B 15-3 mini excavator weighs 1.5 tons.

What is the transport width of the Yanmar B 15-3 mini excavator?

The transport width of the Yanmar B 15-3 mini excavator is 1 meter.

What is the track width of the Yanmar B 15-3 mini excavator's undercarriage?

The Yanmar B 15-3 mini excavator has a track width of 200 mm.

What is the dredging depth of the Yanmar B 15-3 mini excavator?

The Yanmar B 15-3 mini excavator has a dredging depth of 2.1 meters.

What is the maximum bucket capacity of the Yanmar B 15-3 mini excavator?

The maximum bucket capacity of the Yanmar B 15-3 mini excavator is 0.04 cubic meters.

What operator safety and support features does the Yanmar B 15-3 have?

The Yanmar B 15-3 is equipped with a canopy for driver protection.

How much is a Yanmar B 15-3 Mini excavator (2001u20132006) worth?

The residual value of the Yanmar B 15-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
