EZ36 Wacker Neuson excavator specs & dimensions (2022 - 2026)

Wacker Neuson EZ36 is a mini excavator manufactured since 2022. It has a weight of 3.8 tons and a track width of 300 mm. The trans…

Wacker Neuson EZ36 is a mini excavator manufactured since 2022. It has a weight of 3.8 tons and a track width of 300 mm. The transport dimensions are 5.5 meters in length, 1.75 meters in width, and 2.49 meters in height. The machine features a tear-out force of 21.1 kN, a dredging depth of 3.497 meters, and a maximum horizontal reach of 5.743 meters. Special equipment includes a blade and rubber tracks.

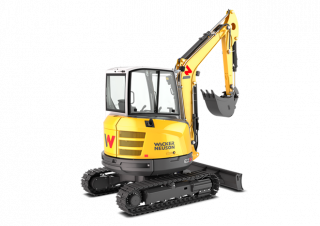

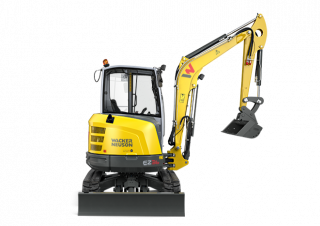

Mini Excavators Wacker Neuson EZ36
Mini Excavators Wacker Neuson EZ36
Mini Excavators Wacker Neuson EZ36
Mini Excavators Wacker Neuson EZ36
Mini Excavators Wacker Neuson EZ36
Mini Excavators Wacker Neuson EZ36

Visit Wacker Neuson live at

Technical specs - EZ36 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.8 t
Transport length
5.5 m
Transport width
1.75 m
Transport height
2.49 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
5.743 m
Dredging depth
3.497 m
Tear-out force
21.1 kN
Model series
EZ
Engine manuf.
Yanmar
Engine type
3TNV88F-EPWN
Engine power
18.2 kW
Displacement
1.642 l
Revolutions at max torque
2500 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson EZ36 FAQ

When was the Wacker Neuson EZ36 manufactured?

The Wacker Neuson EZ36 was first produced in 2022.

How much does the Wacker Neuson EZ36 weigh?

The Wacker Neuson EZ36 weighs 3.8 tons.

What are the transport dimensions of the Wacker Neuson EZ36 mini excavator?

The Wacker Neuson EZ36 has a transport length of 5.5 meters, a transport width of 1.75 meters, and a transport height of 2.49 meters.

What is the track width of the Wacker Neuson EZ36's undercarriage?

The Wacker Neuson EZ36 has a track width of 300 mm.

What are the excavation performance specifications of the Wacker Neuson EZ36?

The Wacker Neuson EZ36 has a dredging depth of 3.497 meters and a maximum horizontal reach of 5.743 meters.

What is the tear-out force of the Wacker Neuson EZ36?

The Wacker Neuson EZ36 has a tear-out force of 21.1 kN.

What operator safety features does the Wacker Neuson EZ36 have?

The Wacker Neuson EZ36 has a cabin for driver protection.

How much is a Wacker Neuson EZ36 Mini excavator (2022u20132025) worth?

The residual value of the Wacker Neuson EZ36 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
