ET42 Wacker Neuson excavator specs & dimensions (2021 - 2026)

Wacker Neuson ET42 is a mini excavator manufactured since 2021, with a weight of 3.963 tons. It features a track width of 350 mm, …

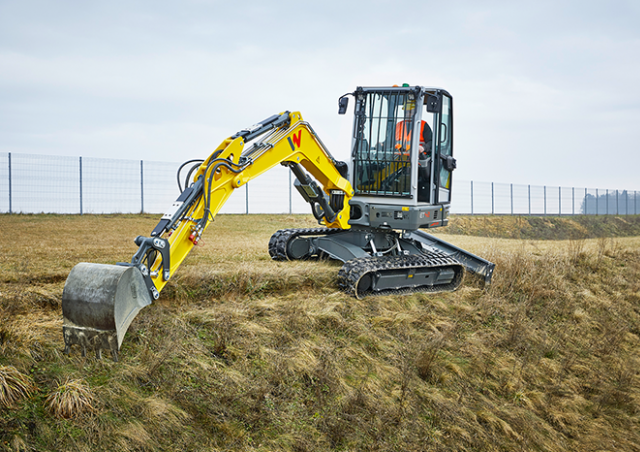

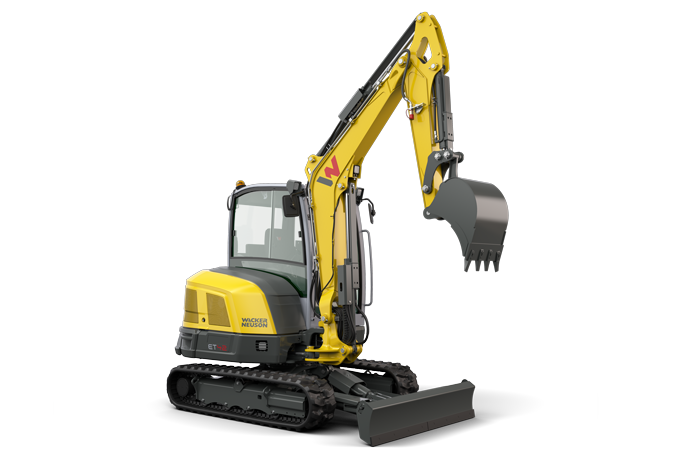

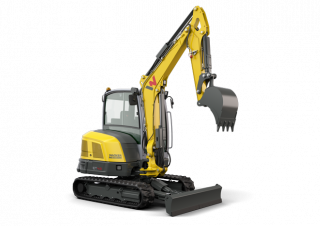

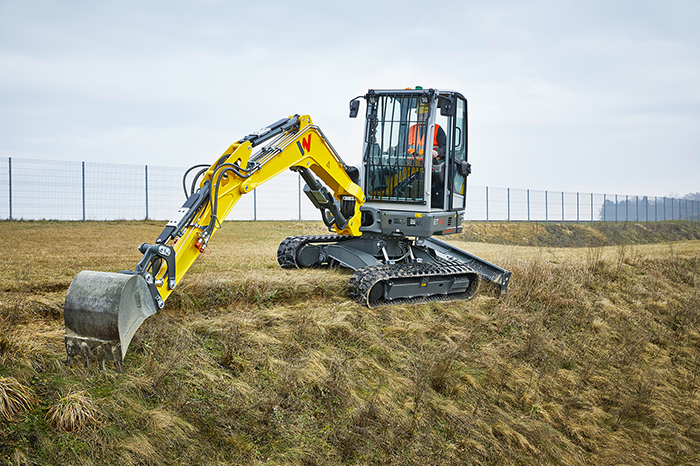

Wacker Neuson ET42 is a mini excavator manufactured since 2021, with a weight of 3.963 tons. It features a track width of 350 mm, a transport length of 5.146 meters, a transport width of 1.75 meters, and a transport height of 2.494 meters. The machine has a tear-out force of 20.8 kN and a dredging depth of 3.544 meters. It comes with a bucket capacity of 1.8 cubic meters and includes special equipment such as a blade and rubber track.

Visit Wacker Neuson live at

ET42

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - ET42 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.963 t

Transport length: 5.146 m

Transport width: 1.75 m

Transport height: 2.494 m

Bucket capacity: 1.8 m³

Track width: 350 mm

Driver protection: Kb

Dredging depth: 3.544 m

Tear-out force: 20.8 kN

Model series: ET

Engine manuf.: Perkins

Engine type: 403J-E17T

Engine power: 32.5 kW

Displacement: 1.662 l

Revolutions at max torque: 2000 rpm

No. of cylinders: 3

Emission level: V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Wacker Neuson ET42 FAQ

When was the Wacker Neuson ET42 manufactured?

The Wacker Neuson ET42 was first produced in 2021.

How much does the Wacker Neuson ET42 weigh?

The Wacker Neuson ET42 weighs 3.96 tons.

What are the transport dimensions of the Wacker Neuson ET42 mini excavator?

The Wacker Neuson ET42 has a transport length of 5.15 meters, a transport width of 1.75 meters, and a transport height of 2.49 meters.

What is the track width of the Wacker Neuson ET42's undercarriage?

The Wacker Neuson ET42 has a track width of 350 mm.

What is the dredging depth of the Wacker Neuson ET42 mini excavator?

The Wacker Neuson ET42 mini excavator has a dredging depth of 3.544 meters.

What is the tear-out force of the Wacker Neuson ET42 mini excavator?

The Wacker Neuson ET42 mini excavator has a tear-out force of 20.8 kN.

What is the bucket capacity of the Wacker Neuson ET42 mini excavator?

The Wacker Neuson ET42 has a bucket capacity of 1.8 cubic meters.

What operator safety features does the Wacker Neuson ET42 have?

The Wacker Neuson ET42 has a cabin for driver protection.

How much is a Wacker Neuson ET42 Mini excavator (2021u20132025) worth?

The residual value of the Wacker Neuson ET42 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson ET42 overview

Dimensions and weight

Engine / Motor manufacturer	Deutz
Engine / Motor type	TCD 4.1 S5
Cylinder	4
Engine performance	115 kW
at rpm maximum	2	300 rpm"
Displacement	4	038 cm³"
Coolant type	Water/charge air
Exhaust after treatment	DOC + DPF + SCR
Emission standards stage	Stage V
Electrical system
Operating voltage	12 V
Battery	185 Ah
Alternator	120 A
Weights
Operating weight	11	250 kg"
Tipping load with bucket - machine straight	7	739 kg"
Tipping load with bucket - machine at angle	6	674 kg"
Tipping load with pallet fork - machine straight	6	851 kg"
Tipping load with pallet fork - machine at angle	5	946 kg"
Vehicle data
Bucket capacity Standard bucket	1.8 m³
Traction drive	Hydrostatic via universal joint shaft
Axles	PA1900
Drivers cab	Cab
Speed (optional)	0-20 (40) km/h
Speed Level	3
Standard tires	500 / 70 R24 Michelin BIBLOAD ET40
Hydraulic system
Driving hydraulics - operating pressure	480 bar
Operating hydraulics - operating pressure	250 bar
Operating hydraulics - discharge capacity	180 l/min
Filling capacities
Fuel tank capacity	140 l
Hydraulic oil tank	125 l
Sound level
Average sound power level LwA	100.7 dB(A)
Guaranteed sound power level LwA	102 dB(A)
Specified sound pressure level LpA	70 dB(A)

A	Overall length	6	500 mm"
B	Overall length without bucket	5	610 mm"
C	Bucket pivot point to axle center	1	200 mm"
D	Wheelbase	2	660 mm"
E	Rear overhang	1	520 mm"
F	Height With cab	3	060 mm"
H	Seat height	1	940 mm"
J	Total operating height	4	870 mm"
K	Stroke height max. - bucket pivot point	3	820 mm"
L	Overhead loading height	3	550 mm"
M	Dump height max.	2	840 mm"
N	Range With M	970 mm
O	Scraping depth	126 mm
P	Overall width	2	390 mm"
Q	Track width	1	820 mm"
S	Ground clearance	500 mm
T	Radius maximum	5	380 mm"
U	Radius at outer edge	4	900 mm"
V	Inside turning radius	2	450 mm"
W	Articulation angle	40 °

Tables

X	Bucket rollback at max. stroke height	56 °
Y	Dump angle maximum	45 °
Z	Bucket rollback at ground level	45 °
