EC35C Volvo excavator specs & dimensions (2007 - 2016)

Model rating
7,50 / 10

Volvo EC35C is a mini excavator manufactured from 2007 to 2016, with a weight of 3.54 tons. It features a track width of 300 mm, a…

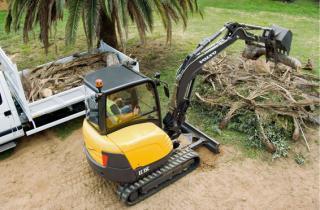

Volvo EC35C is a mini excavator manufactured from 2007 to 2016, with a weight of 3.54 tons. It features a track width of 300 mm, a transport length of 4.75 meters, a transport width of 1.62 meters, and a transport height of 2.46 meters. The bucket width is 0.5 meters, with a bucket capacity ranging from 0.05 m³ to 0.175 m³. Special equipment includes a blade and rubber tracks.

Mini Excavators Volvo EC35C
Mini Excavators Volvo EC35C
Mini Excavators Volvo EC35C
Mini Excavators Volvo EC35C

Visit Volvo live at

Technical specs - EC35C Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.54 t
Transport length
4.75 m
Transport width
1.62 m
Transport height
2.46 m
Bucket capacity min.
0.050 m³
Bucket capacity max.
0.175 m³
Bucket width
0.5 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
5.47 m
Dredging depth
3.7 m
Tear-out force
30.9 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D 2.2 D
Engine power
27.1 kW
Displacement
2.2 l
Revolutions at max torque
1400 rpm

More technical details, like: bucket capacity, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC35C FAQ

When was the Volvo EC35C manufactured?

The Volvo EC35C was manufactured from 2007 to 2016.

How much does the Volvo EC35C weigh?

The Volvo EC35C weighs 3.54 tons.

What are the transport dimensions of the Volvo EC35C mini excavator?

The Volvo EC35C mini excavator has a transport length of 4.75 meters, a transport width of 1.62 meters, and a transport height of 2.46 meters.

What is the track width of the Volvo EC35C mini excavator?

The Volvo EC35C mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Volvo EC35C mini excavator?

The Volvo EC35C mini excavator has a dredging depth of 3.7 meters and a maximum horizontal reach of 5.47 meters.

What is the tear-out force of the Volvo EC35C mini excavator?

The Volvo EC35C mini excavator has a tear-out force of 30.9 kN.

What are the bucket specifications of the Volvo EC35C mini excavator?

The Volvo EC35C mini excavator has a bucket width of 0.5 meters, with a bucket capacity ranging from 0.05 to 0.18 cubic meters.

What operator safety features does the Volvo EC35C have?

The Volvo EC35C has a cabin for driver protection.

How much is a Volvo EC35C Mini excavator (2007u20132016) worth?

The residual value of the Volvo EC35C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
