TC 19 Z Terex excavator specs & dimensions (2011 - 2016)

Terex TC 19 Z is a mini excavator manufactured from 2011 to 2016. It has a weight of 1.93 tons and a track width of 230 mm. The tr…

Terex TC 19 Z is a mini excavator manufactured from 2011 to 2016. It has a weight of 1.93 tons and a track width of 230 mm. The transport dimensions are 2.37 m in length, 0.99 m in width, and 2.36 m in height. The machine features a tear-out force of 11.7 kN, a dredging depth of 2.3 m, and a maximum horizontal reach of 3.8 m. The bucket width is 0.4 m with a capacity of 0.044 m³. Special equipment includes a blade, quick hitch mechanism, rubber track, and track adjustment.

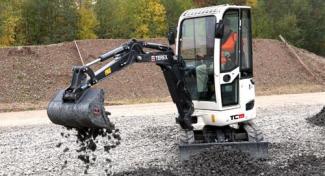

Mini Excavators Terex TC 19 Z
Mini Excavators Terex TC 19 Z
Mini Excavators Terex TC 19 Z
Mini Excavators Terex TC 19 Z
Mini Excavators Terex TC 19 Z
Mini Excavators Terex TC 19 Z

Technical specs - TC 19 Z Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.93 t
Transport length
2.37 m
Transport width
0.99 m
Transport height
2.36 m
Bucket capacity
0.044 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.8 m
Dredging depth
2.3 m
Tear-out force
11.7 kN
Model series
TC

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Terex TC 19 Z FAQ

When was the Terex TC 19 Z manufactured?

The Terex TC 19 Z was manufactured from 2011 to 2016.

How much does the Terex TC 19 Z mini excavator weigh?

The Terex TC 19 Z mini excavator weighs 1.93 tons.

What are the transport dimensions of the Terex TC 19 Z mini excavator?

The Terex TC 19 Z has a transport length of 2.37 meters, a transport width of 0.99 meters, and a transport height of 2.36 meters.

What is the track width of the Terex TC 19 Z mini excavator?

The Terex TC 19 Z mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Terex TC 19 Z mini excavator?

The Terex TC 19 Z mini excavator has a dredging depth of 2.3 meters and a maximum horizontal reach of 3.8 meters.

What are the power ratings of the Terex TC 19 Z mini excavator?

There are no power rating data available for the Terex TC 19 Z mini excavator in the provided information.

What are the specifications of the primary work tool bucket on the Terex TC 19 Z?

The primary work tool bucket of the Terex TC 19 Z has a capacity of 0.044 cubic meters and a width of 0.4 meters.

What operator safety and support features does the Terex TC 19 Z have?

The Terex TC 19 Z is equipped with a canopy for driver protection.

How much is a Terex TC 19 Z Mini excavator (2011u20132016) worth?

The residual value of the Terex TC 19 Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Terex TC 19 Z overview

Hydraulics

Hydraulic hammer Quick change adapter for hydraulic hammer Other work attachments available on request Yellow beacon

Dimensions and weight

Width (outside edge of crawler chains)990 / 1300 mm
Width of rubber crawlers230 mm
Total length (sprocket - idler)1158 mm
Total length (undercarriage)1562 mm
Transport weight (with canopy)1750 kg
Transport weight (with cab)1820 kg
Operating weight (with canopy) acc. to ISO 60161811 kg
Operating weight (with cab) acc. to ISO 60161926 kg
Total length (travel position)2371 (2401*) mm
Total length (trailer transport position)3300 mm
Total height (travel position)2357 mm
Total width990 - 1300 mm
Uppercarriage tailswing650 mm
Uppercarriage frontswing1640 (1670*) mm
Working envelope 180° / 360°2340 / 3375 (2355 / 3410*) mm
Ground clearance190 mm
Bucket digging force (ISO 6015)15200 N"
Stick digging force (ISO 6015)11730 N"
Ground pressure (rubber crawlers)0.28 daN/cm2
Displacement854 cm3
Power rating acc. to ISO 9249 at 2260 rpm11.2 kW (15 HP)
Cooling systemWater
ELECTRICAL SYSTEM
Operating voltage12 V
Battery12 V / 65 Ah
Generator12 V / 35 A
TRANSMISSION
Two-stage hydrostatic travel drive with axial piston variable displacement enclosed.motor and reduction gear fully"
Travel speed forward and reverse"0-2.2/4.2 kph
Gradeabilitymax. 60%
Drawbar pull1470 daN
UNDERCARRIAGE
Maintenance-free crawler-type undercarriage. Idler suspension with hydraulic crawler track tensioning. Mechanically retractable/extendable undercarriage provided as standard.

Tables

Width x height990 (1300) x 240 mm
Dozer cut below ground290 mm
Dozer lift above ground260 mm
Slope angle30°
Hydraulic system (incl. 20 l tank)30 l
Cooling system4 l
Engine oil2.8 l
Hydrostatic drive also acts as wear-resistant brake. Internally toothed ring gear."
Swing speed0-12 rpm
