SE36SR Shantui excavator specs & dimensions (2023 - 2026)

Weight: 3.8t – Transport length: 4.88m – Transport width: 1.74m – Transport height: 2.55m – Bucket capacity: 0.12m³ – Bucket width…

Weight: 3.8t – Transport length: 4.88m – Transport width: 1.74m – Transport height: 2.55m – Bucket capacity: 0.12m³ – Bucket width: 0.65m

Check out detailed specifications, information and technical data for Shantui SE36SR excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE36SR digger specifications. See information, like: Weight: 3.8t – Transport length: 4.88m – Transport width: 1.74m – Transport height: 2.55m – Bucket capacity: 0.12m³ – Bucket width: 0.65m and more.

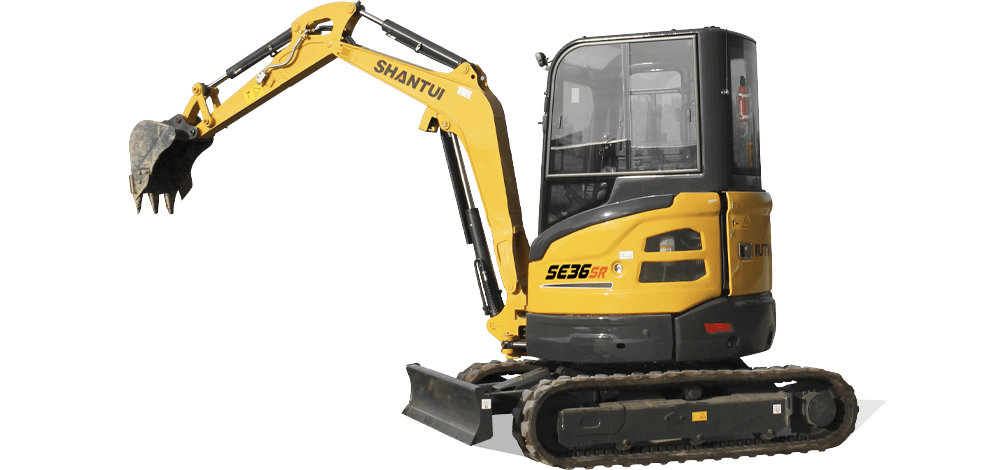

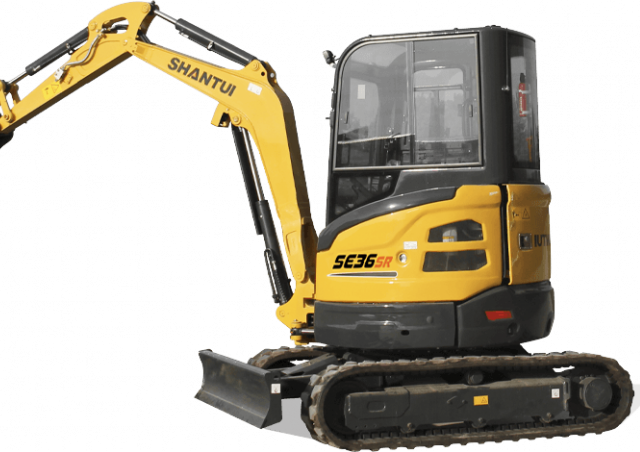

Mini Excavators Shantui SE36SR

Technical specs - SE36SR Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.8 t
Transport length
4.88 m
Transport width
1.74 m
Transport height
2.55 m
Bucket capacity
0.12 m³
Bucket width
0.65 m
Track width
300 mm
Max. Reach horizontal
5.345 m
Dredging depth
3.075 m
Tear-out force
30.4 kN
Engine manuf.
Yanmar
Engine type
3TNV88F
Engine power
18.2 kW
Displacement
1.642 l
No. of cylinders
3
Emission level
Tier 4 / Stage V

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE36SR FAQ

When was the Shantui SE36SR manufactured?

The Shantui SE36SR was first produced in 2023.

How much does the Shantui SE36SR mini excavator weigh?

The Shantui SE36SR mini excavator weighs 3.8 tons.

What are the transport dimensions of the Shantui SE36SR mini excavator?

The Shantui SE36SR has a transport length of 4.88 meters, a transport width of 1.74 meters, and a transport height of 2.55 meters.

What are the excavation specifications of the Shantui SE36SR mini excavator?

The Shantui SE36SR mini excavator has a dredging depth of 3.075 meters and a maximum horizontal reach of 4.91 meters.

What is the bucket capacity of the Shantui SE36SR mini excavator?

The Shantui SE36SR mini excavator has a bucket capacity of 0.12 cubic meters.
