REX10 RHINO excavator specs & dimensions (2017 - 2026)

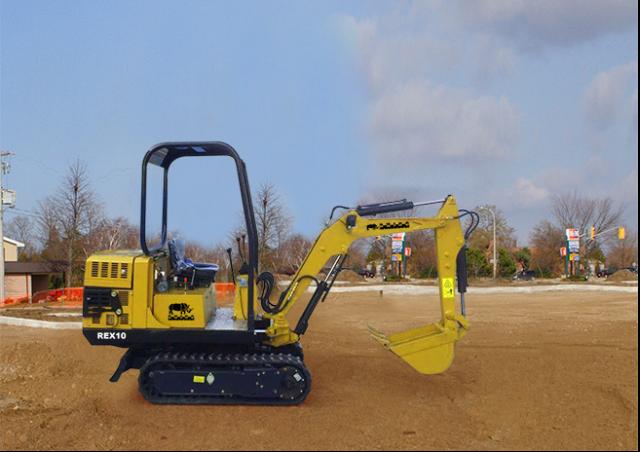

RHINO REX10 is a Mini Excavator manufactured since 2017, with a weight of 0.8 t and a track width of 230 mm. It has a transport le…

RHINO REX10 is a Mini Excavator manufactured since 2017, with a weight of 0.8 t and a track width of 230 mm. It has a transport length of 3.63 m, a transport width of 0.99 m, and a transport height of 2.15 m. The excavator features a tear-out force of 10.5 kN, a dredging depth of 1.88 m, and a maximum horizontal reach of 3.42 m. The bucket capacity ranges from 0.04 m³ to 0.07 m³. It is equipped with a rubber track.

REX10

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - REX10 RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.8 t

Transport length: 3.63 m

Transport width: 0.99 m

Transport height: 2.15 m

Bucket capacity min.: 0.04 m³

Bucket capacity max.: 0.07 m³

Track width: 230 mm

Driver protection: FD

Max. Reach horizontal: 3.42 m

Dredging depth: 1.88 m

Tear-out force: 10.5 kN

Model series: REX

Engine manuf.: Yanmar

Engine type: N/A

Engine power: 13.6 kW

Emission level: Tier 2

More technical details, like: bucket capacity, bucket width, standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

REX10 RHINO Specification for Europe (EN)

RHINO REX10 FAQ

When was the RHINO REX10 manufactured?

The RHINO REX10 was first produced in 2017.

How much does the RHINO REX10 mini excavator weigh?

The RHINO REX10 mini excavator weighs 0.8 tons.

What are the transport dimensions of the RHINO REX10 mini excavator?

The RHINO REX10 mini excavator has a transport length of 3.63 meters, a transport width of 0.99 meters, and a transport height of 2.15 meters.

What is the track width of the RHINO REX10 mini excavator?

The RHINO REX10 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the RHINO REX10 mini excavator?

The RHINO REX10 mini excavator has a dredging depth of 1.88 meters and a maximum horizontal reach of 3.42 meters.

What is the tear-out force of the RHINO REX10 mini excavator?

The RHINO REX10 mini excavator has a tear-out force of 10.5 kN.

What are the bucket capacity specifications of the RHINO REX10 mini excavator?

The RHINO REX10 mini excavator has a bucket capacity ranging from 0.04 to 0.07 cubic meters.

What operator safety and support features does the RHINO REX10 have?

The RHINO REX10 is equipped with a canopy for driver protection.

How much is a RHINO REX10 Mini excavator (2017u20132025) worth?

The residual value of the RHINO REX10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

RHINO REX10 overview

Hydraulics

OPTIONEN Rhino Excavators can come with different options such as: Tier2, Tier3, Tier4 Engine, Close cab, Rock bucket, digging bucket, thumb cutter and more depending on work requirements. ATTACHMENTS Rhino Excavators are standard supplied with the hydraulic line for attachments. rhino hydraulic hammer match: 254SK hydraulic hammer Trencher Augers u.v.m...

Dimensions and weight

DIMENSIONS
A. Total Length mm (ft)	3	630 (11)"
B. Total Height mm (ft)	2	150 (7)"
C. Overall width mm (ft)	990 (3.2)
D. Track width mm (in)	230 (9)
E. Platform radius of turn mm (ft)	1	180 (3.9)"
F. Track Length mm (ft)	1	405 (4.6)"
G. Tread mm (ft)	1	045 (3.4)"
H. Height above ground mm (ft)	205 (4)
I. End total Height of boom mm (ft)	1	105 (3.6)"
J. Wide Platform outside mm (ft)	1	020 (3.3)"
K. Hood Height mm (ft)	1	170 (3.8)"
L. Platform height above ground mm (in)	460 (18)

OPERATING RANGE
A. Maximum digging height mm (ft)	2	920 (9.5)"
B. Maximum unloading height mm (ft)	2	010 (6.6)"
C. Maximum digging depth mm (ft)	1	880 (6.2)"
D. Maximum reach mm (ft)	3	500 (11.5)"
D1. Maximum digging reach at ground level mm (ft)	3	420 (11.2)"
E. Maximum digging height radius mm (ft)	2	410 (7.9)"
F. Minimum turning radius mm (ft)	1	530 (5.1)"
G. Maximum depth of the bucket dozer mm (ft)	170 (0.6)
H. Maximum lift height dozer mm (ft)	205 (0.7)
WEIGHT

Tables

Emissions (optional)	Tier 2 (Tier 3	Tier 4)"
Rated engine speed rpm	2	200"
Bucket capacity m3 (cu.Yd)	0.07-0.04m3 (0.5 - 0.9)
Hydraulic system presure Mpa (psi)	16 (2	321)"
Dosing pumps L/min (gpm)	34 (9)
Maximum digging force kN (lb)	10.5 (2	360)"
Gradeability	30º
Ground pressure Kpa (psi)	27.5 (4.0)
Walking speed km/h (mph)	2 (1.2)
Maximum traction kN (lb)	11.5 (2	585)"
Platform rotation speed rpm	10rpm
