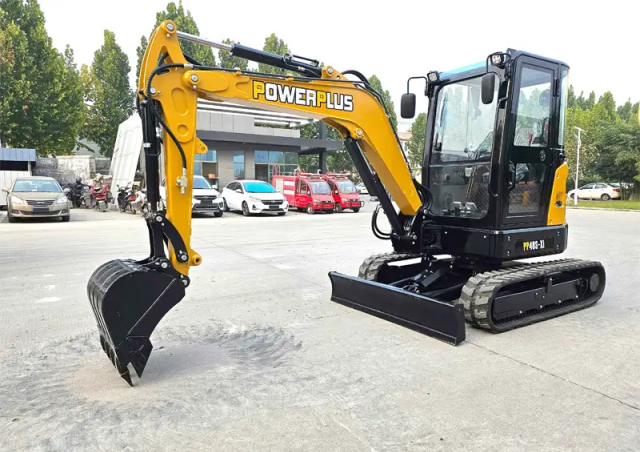

PP40S-XI PowerPlus excavator specs & dimensions (2026 - 2026)

Weight: 3.8t – Transport length: 4.915m – Transport width: 1.72m – Transport height: 2.525m – Bucket capacity: 0.12m³ – Track widt…

Weight: 3.8t – Transport length: 4.915m – Transport width: 1.72m – Transport height: 2.525m – Bucket capacity: 0.12m³ – Track width: 300mm

Check out detailed specifications, information and technical data for PowerPlus PP40S-XI excavator manufactured between 2026 - 2026. Get more in-depth insight with PowerPlus PP40S-XI digger specifications. See information, like: Weight: 3.8t – Transport length: 4.915m – Transport width: 1.72m – Transport height: 2.525m – Bucket capacity: 0.12m³ – Track width: 300mm and more.

Technical specs - PP40S-XI PowerPlus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.8 t
Transport length
4.915 m
Transport width
1.72 m
Transport height
2.525 m
Bucket capacity
0.12 m³
Track width
300 mm
Max. Reach horizontal
5.48 m
Dredging depth
3.208 m
Tear-out force
30.4 kN
Model series
PP
Engine manuf.
Kubota
Engine type
D1703
Engine power
18.6 kW
Revolutions at max torque
2200 rpm
Emission level
Euro V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
