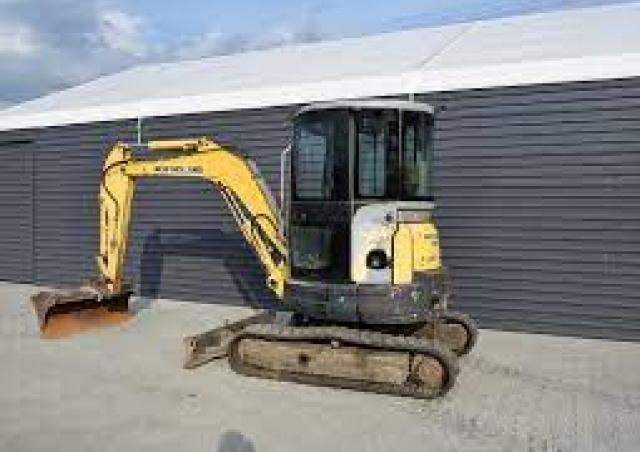

E35.2SR New Holland excavator specs & dimensions (2006 - 2012)

New Holland E35.2SR is a mini excavator manufactured from 2006 to 2012, with a weight of 3.7 tons. It features a track width of 30…

New Holland E35.2SR is a mini excavator manufactured from 2006 to 2012, with a weight of 3.7 tons. It features a track width of 300 mm, a transport length of 4.71 meters, a transport width of 1.7 meters, and a transport height of 2.57 meters. The machine has a tear-out force of 17 kN and supports bucket capacities ranging from 0.05 m³ to 0.12 m³. Special equipment includes a blade and rubber tracks.

Mini Excavators New Holland E35.2SR

Technical specs - E35.2SR New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.7 t
Transport length
4.71 m
Transport width
1.7 m
Transport height
2.57 m
Bucket capacity min.
0.05 m³
Bucket capacity max.
0.12 m³
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.18 m
Dredging depth
3.35 m
Tear-out force
17 kN
Model series
E
Engine manuf.
Yanmar
Engine type
3TNV88PYB
Engine power
22 kW
Displacement
1.65 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity, bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E35.2SR FAQ

When was the New Holland E35.2SR manufactured?

The New Holland E35.2SR was manufactured from 2006 to 2012.

How much does the New Holland E35.2SR weigh?

The New Holland E35.2SR weighs 3.7 tons.

What are the transport dimensions of the New Holland E35.2SR mini excavator?

The New Holland E35.2SR has a transport length of 4.71 meters, a transport width of 1.7 meters, and a transport height of 2.57 meters.

What is the track width of the New Holland E35.2SR mini excavator?

The New Holland E35.2SR mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the New Holland E35.2SR mini excavator?

The New Holland E35.2SR mini excavator has a dredging depth of 3.35 meters and a maximum horizontal reach of 4.18 meters.

What is the tear-out force of the New Holland E35.2SR mini excavator?

The New Holland E35.2SR mini excavator has a tear-out force of 17 kN.

What are the bucket capacity specifications of the New Holland E35.2SR mini excavator?

The New Holland E35.2SR mini excavator has a bucket capacity ranging from 0.05 to 0.12 cubic meters.

What operator safety and support features does the New Holland E35.2SR have?

The New Holland E35.2SR is equipped with a canopy for driver protection.
