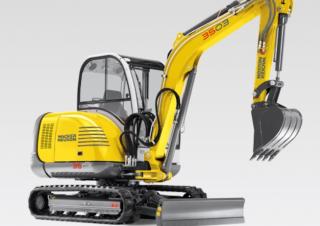

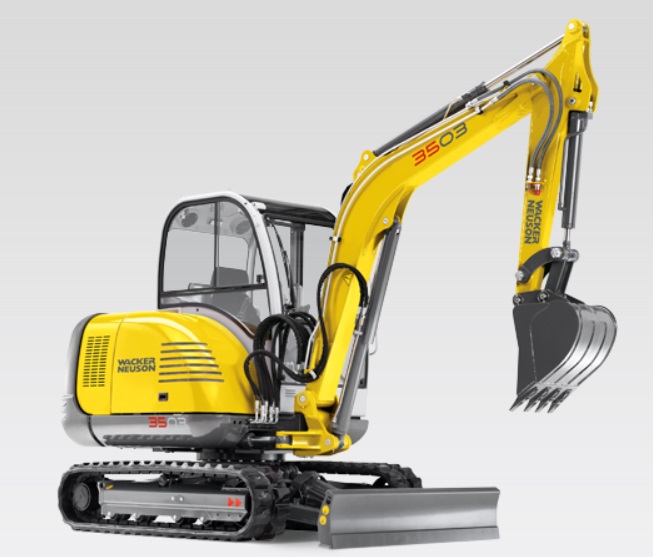

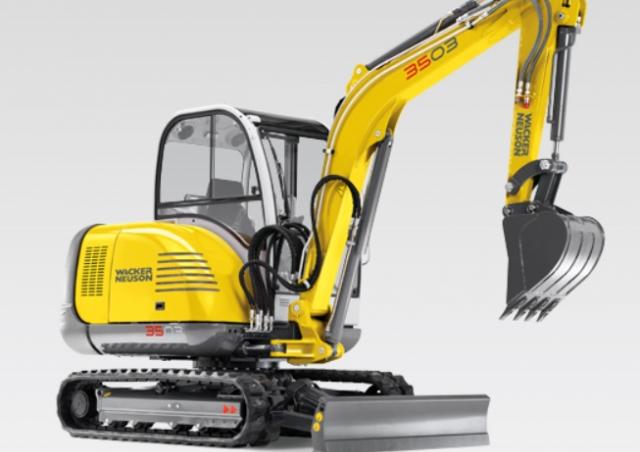

3503 Neuson excavator specs & dimensions (2002 - 2004)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - 3503 Neuson
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.5 t
- Transport length
- 5.17 m
- Transport width
- 1.62 m
- Transport height
- 2.51 m
- Bucket capacity
- 0.088 m³
- Track width
- 300 mm
- Driver protection
- Kb
- Dredging depth
- 3.92 m
- Tear-out force
- 20.6 kN
- Engine manuf.
- Yanmar
- Engine type
- 4TNE88
- Engine power
- 36 kW
More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
