ME3703 Mustang excavator specs & dimensions (2009 - 2025)

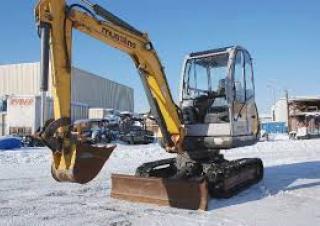

Mustang ME3703 is a mini excavator manufactured since 2009, with a weight of 3.726 tons. It features a track width of 305 mm, a tr…

Mustang ME3703 is a mini excavator manufactured since 2009, with a weight of 3.726 tons. It features a track width of 305 mm, a transport length of 4.026 meters, a transport width of 1.619 meters, and a transport height of 2.521 meters. The machine has a dredging depth of 3.124 meters and a maximum horizontal reach of 5.546 meters. The bucket width is 1.621 meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Mustang ME3703

Technical specs - ME3703 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.726 t
Transport length
4.026 m
Transport width
1.619 m
Transport height
2.521 m
Bucket width
1.621 m
Track width
305 mm
Driver protection
Ü
Max. Reach horizontal
5.546 m
Dredging depth
3.124 m
Tear-out force
29.2 kN
Engine manuf.
Yanmar
Engine type
4TNV88-BWNS
Engine power
23.7 kW
Displacement
2196 l
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mustang ME3703 FAQ

When was the Mustang ME3703 manufactured?

The Mustang ME3703 was first produced in 2009.

How much does the Mustang ME3703 mini excavator weigh?

The Mustang ME3703 mini excavator weighs 3.73 tons.

What are the transport dimensions of the Mustang ME3703 mini excavator?

The Mustang ME3703 has a transport length of 4.03 meters, a transport width of 1.62 meters, and a transport height of 2.52 meters.

What is the track width of the Mustang ME3703 mini excavator?

The Mustang ME3703 mini excavator has a track width of 305 mm.

What are the dredging depth and maximum horizontal reach of the Mustang ME3703 mini excavator?

The Mustang ME3703 mini excavator has a dredging depth of 3.124 meters and a maximum horizontal reach of 5.546 meters.

What is the tear-out force of the Mustang ME3703 mini excavator?

The Mustang ME3703 mini excavator has a tear-out force of 29.2 kN.

What is the bucket width of the Mustang ME3703 mini excavator?

The bucket width of the Mustang ME3703 mini excavator is 1.621 meters.

What operator safety feature does the Mustang ME3703 have?

The Mustang ME3703 is equipped with a roll-over bar for driver protection.

How much is a Mustang ME3703 Mini excavator (2009u20132025) worth?

The residual value of the Mustang ME3703 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Mustang ME3703 overview

Environment

Extra-large operator station with ergonomic
controls, an adjustable high back seat and underarm rests on each joystick provide a comfortable working environment for long days. For more information about Mustang equipment, visit our literature hotline or visit our website:

Tyres / Tracks

Less material built-up results from sloped
Undercarriage frame and heavy-duty reinforced counterweight protects the totality of machine components.
