M38U Messersi excavator specs & dimensions (2021 - 2026)

Messersi M38U is a Mini Excavator manufactured since 2021, with a weight of 3.6 tons. It features a track width of 300 mm, a trans…

Messersi M38U is a Mini Excavator manufactured since 2021, with a weight of 3.6 tons. It features a track width of 300 mm, a transport length of 4.51 meters, a transport width of 1.74 meters, and a transport height of 2.5 meters. The machine has a tear-out force of 31 kN, a dredging depth of 3.329 meters, and a maximum horizontal reach of 5.484 meters. The bucket width is 0.45 meters with a capacity of 0.064 cubic meters. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

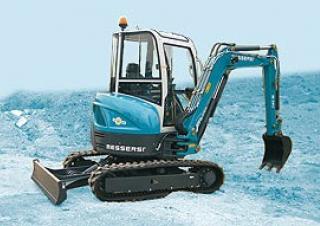

Mini Excavators Messersi M38U

Technical specs - M38U Messersi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.6 t
Transport length
4.51 m
Transport width
1.74 m
Transport height
2.5 m
Bucket capacity
0.064 m³
Bucket width
0.45 m
Track width
300 mm
Max. Reach horizontal
5.484 m
Dredging depth
3.329 m
Tear-out force
31 kN
Model series
M
Engine manuf.
Kubota
Engine type
D1703M
Engine power
27.4 kW
Displacement
1.647 l
Revolutions at max torque
2800 rpm
No. of cylinders
3
Emission level
Stage V

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Messersi M38U FAQ

When was the Messersi M38U manufactured?

The Messersi M38U was first produced in 2021.

How much does the Messersi M38U weigh?

The Messersi M38U weighs 3.6 tons.

What are the transport dimensions of the Messersi M38U mini excavator?

The Messersi M38U has a transport length of 4.51 meters, a transport width of 1.74 meters, and a transport height of 2.5 meters.

What is the track width of the Messersi M38U mini excavator?

The Messersi M38U mini excavator has a track width of 300 mm.

What is the excavation performance of the Messersi M38U mini excavator?

The Messersi M38U mini excavator has a dredging depth of 3.329 meters and a maximum horizontal reach of 5.484 meters.

What is the tear-out force of the Messersi M38U mini excavator?

The Messersi M38U mini excavator has a tear-out force of 31 kN. No power rating data is provided in the source.

What are the bucket specifications of the Messersi M38U mini excavator?

The Messersi M38U mini excavator has a bucket capacity of 0.064 cubic meters and a bucket width of 0.45 meters.

How much is a Messersi M38U Mini excavator (2021u20132025) worth?

The residual value of the Messersi M38U depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Messersi M38U overview

Dimensions and weight

TECHNICAL DATAM-28UM-38U
HYDRAULIC SYSTEM
Hydrostatic transmission with orbital - motors and planetary reduction gears with negative brakes. Travelling counter-balance valves. - N.2 variable displacement piston pumps + -
gear pumpLt/min32.5 x 2 + 26.535.4 x 2 + 28.9
Total delivery -Lt/min91.5100
Auxiliary hydraulic flow for P.T.O. -Lt/min5964.5
Max working pressure -bar250/230250/230
Slew speed -g/min9.010.0
(with piston motors and negative brake)
Boom arm bucket and slew actuated -"
by servo-controlled joysticks.
- Proportional servo-controlled the joy-sticks for the boom swing single and double effect P.T.O. control track and dozer blade; Heat exchanger for oil cooling. -rollers on and the Levers to
UNDERCARRIAGE
Box section steel frame - Track type and width -mmrubber300
Track bearing rollers - Track tensioning -N°4+4 low / 1+1 up grease
Dozer blade -mm300 x 1620310 x 1760
PERFORMANCES
Shipping weight with canopy -Kg27503350
Operating weight with canopy -Kg .28503450
Shipping weight with cab -Kg29003500
Operating weight with cab -Kg30503600
Break out force -daN26203100
Digging force -daN17251950
Travel speed -Km/h2.4/4.32.2/4.3
Max gradient capability -more than %100100
Specific ground pressure -Kg/cm²0.280.328

Tables

ENGINE
Make and model -Kubota D1703M
Max power at 2800 rpm (DIN 6271) -HP/Kw37.2 / 27.4
M-28U Rated power at 2200 rpm -HP/Kw34 / 25
M-38U Rated power at 2400 rpm -HP/Kw36 / 26.5
Cylinders -N°3
Displacement -cm 31647
Cooling -water
Battery -N°1 - 12 V - 80 Ah
REFUELLING
Fuel tank capacity -lt35
Hydraulic oil tank capacity -lt56
