9035EZTS Liugong excavator specs & dimensions (2020 - 2026)

Weight: 3.86t – Transport length: 4.81m – Transport width: 1.7m – Transport height: 2.5m – Bucket capacity: 0.11m³ – Track width: …

Weight: 3.86t – Transport length: 4.81m – Transport width: 1.7m – Transport height: 2.5m – Bucket capacity: 0.11m³ – Track width: 300mm

Check out detailed specifications, information and technical data for Liugong 9035EZTS excavator manufactured between 2020 - 2026. Get more in-depth insight with Liugong 9035EZTS digger specifications. See information, like: Weight: 3.86t – Transport length: 4.81m – Transport width: 1.7m – Transport height: 2.5m – Bucket capacity: 0.11m³ – Track width: 300mm and more.

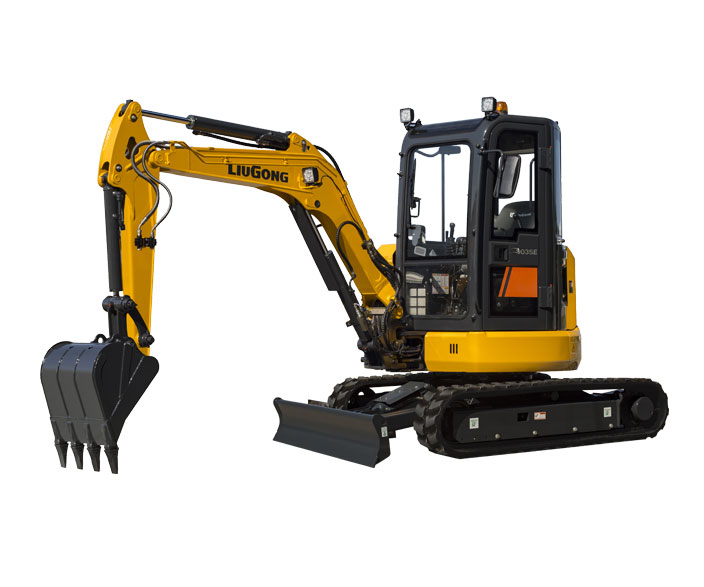

Mini Excavators Liugong 9035EZTS

Visit Liugong live at

Technical specs - 9035EZTS Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.86 t
Transport length
4.81 m
Transport width
1.7 m
Transport height
2.5 m
Bucket capacity
0.11 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
5.27 m
Dredging depth
3.085 m
Model series
E
Engine manuf.
Yanmar
Engine type
3TNV88F-ESLY
Engine power
17.3 kW
Displacement
1.64 l
Revolutions at max torque
1320 rpm
Max. torque
94.2 Nm
No. of cylinders
3
Emission level
EPA Tier 4 Final / Stage IV

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
