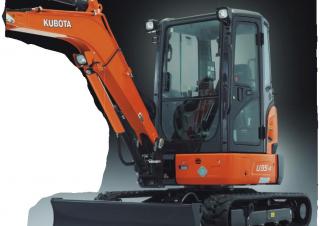

    Kubota U35-4 excavator specs (2019 - 2022)

    Rate this machine now!

    Check out detailed specifications, information and technical data for Kubota U35-4 excavator manufactured between 2019 - 2022. Get... Read more

    Check out detailed specifications, information and technical data for Kubota U35-4 excavator manufactured between 2019 - 2022. Get more in-depth insight with Kubota U35-4 digger specifications. See information, like: Weight: 3.69t – Transport length: 4.75m – Transport width: 1.7m – Transport height: 2.47m – Track width: 300mm – Driver protection: FD and more.

    Technical specs - U35-4 Kubota

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 3.69 t
    • Transport length 4.75 m
    • Transport width 1.7 m
    • Transport height 2.47 m
    • Track width 300 mm
    • Driver protection FD
    • Max. Reach horizontal 5.17 m
    • Dredging depth 2.97 m
    • Tear-out force 35 kN
    • Engine manuf. Kubota
    • Engine type D1703M-DI-E4
    • Engine power 18.5 kW
    • Displacement 1.65 l
    • Emission level Tier 4 Final
    • Bucket capacity ###
    • Bucket capacity min. ###
    • Bucket capacity max. ###
    • Bucket width ###
    • Standard tyres ###
    • Dimension lxwxh ###
    • Revolutions at max torque ###
    • Max. torque ###
    • No. of cylinders ###
    • Cylinder bore x stroke ###

    Basic model with standard bucket

    Special equipment

    • Track adjustment
    • Rubber track
    • Blade
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
