E36ZS John Deere Construction excavator specs & dimensions (2022 - 2026)

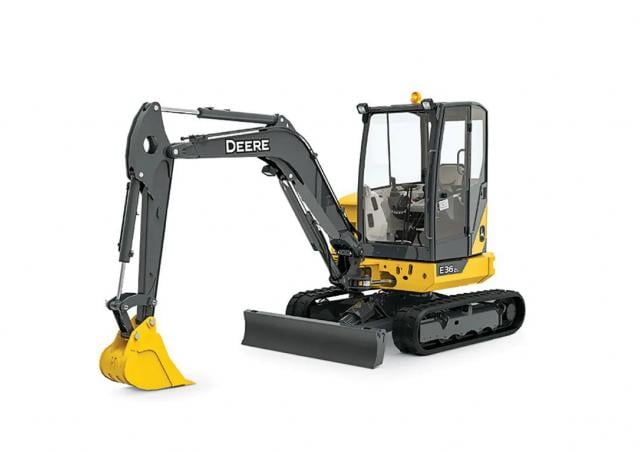

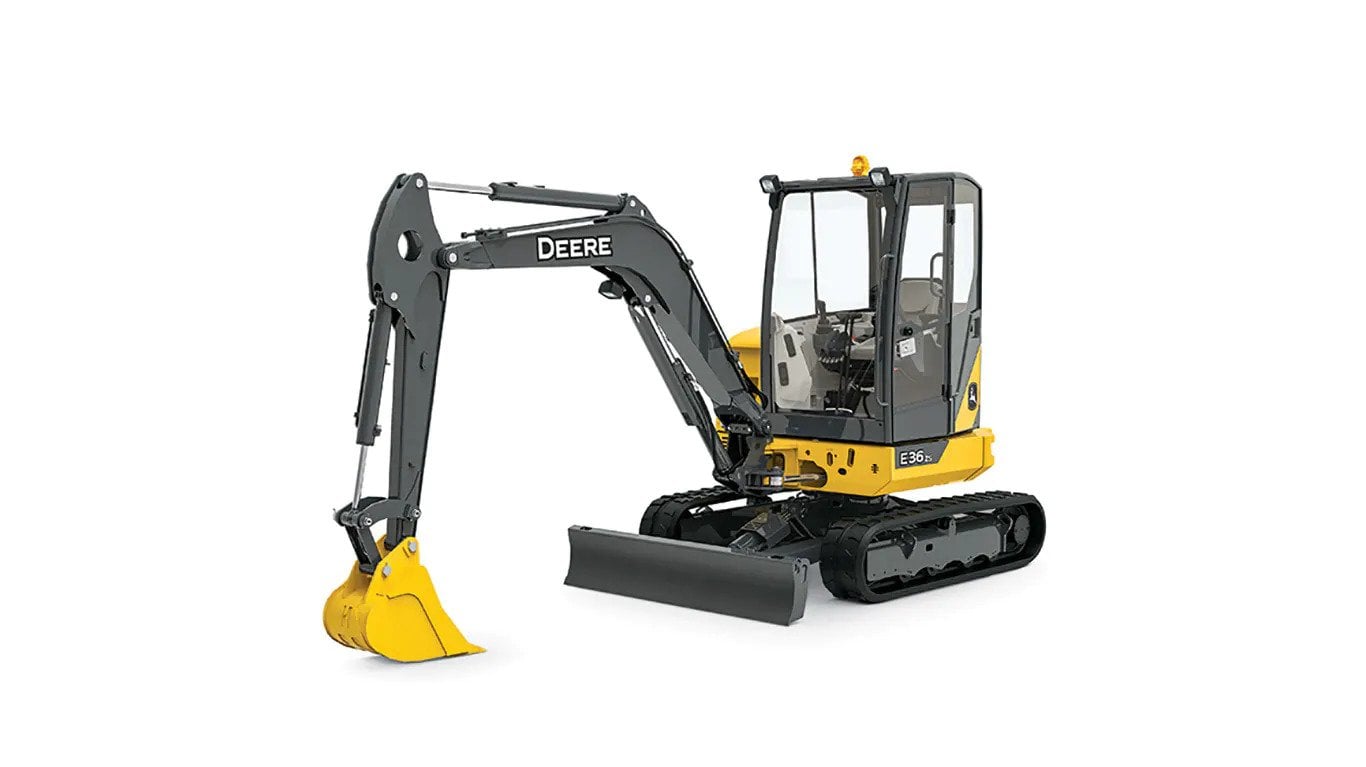

John Deere Construction E36ZS is a mini excavator manufactured since 2022. It has a weight of 3.718 tons and a track width of 300 …

John Deere Construction E36ZS is a mini excavator manufactured since 2022. It has a weight of 3.718 tons and a track width of 300 mm. The transport dimensions are 5.503 meters in length, 1.75 meters in width, and 2.491 meters in height. The machine features a tear-out force of 35 kN, a dredging depth of 3.24 meters, and a maximum horizontal reach of 5.506 meters. The bucket width is 0.5 meters. Special equipment includes air conditioning, a blade, rubber tracks, and track adjustment.

Mini Excavators John Deere Construction E36ZS

Technical specs - E36ZS John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.718 t
Transport length
5.503 m
Transport width
1.75 m
Transport height
2.491 m
Bucket width
0.5 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
5.506 m
Dredging depth
3.24 m
Tear-out force
35 kN
Model series
ZS
Engine manuf.
Yanmar
Engine type
3TNV88-BPWN
Engine power
22.2 kW
Displacement
1.642 l
Revolutions at max torque
1440 rpm
Max. torque
106.6 Nm
No. of cylinders
3
Emission level
EU Stage IIIA

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction E36ZS FAQ

When was the John Deere Construction E36ZS manufactured?

The John Deere Construction E36ZS was first produced in 2022.

How much does the John Deere Construction E36ZS weigh?

The John Deere Construction E36ZS weighs 3.72 tons.

What are the transport dimensions of the John Deere Construction E36ZS mini excavator?

The John Deere Construction E36ZS has a transport length of 5.5 meters, a transport width of 1.75 meters, and a transport height of 2.49 meters.

What is the track width of the John Deere Construction E36ZS mini excavator?

The John Deere Construction E36ZS mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the John Deere Construction E36ZS mini excavator?

The John Deere Construction E36ZS mini excavator has a dredging depth of 3.24 meters and a maximum horizontal reach of 5.506 meters.

What is the tear-out force of the John Deere Construction E36ZS mini excavator?

The John Deere Construction E36ZS mini excavator has a tear-out force of 35 kN.

What is the bucket width of the John Deere Construction E36ZS mini excavator?

The bucket width of the John Deere Construction E36ZS mini excavator is 0.5 meters.

What operator safety and support features does the John Deere Construction E36ZS have?

The John Deere Construction E36ZS has a cabin for driver protection.

How much is a John Deere Construction E36ZS Mini excavator (2022u20132025) worth?

The residual value of the John Deere Construction E36ZS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
