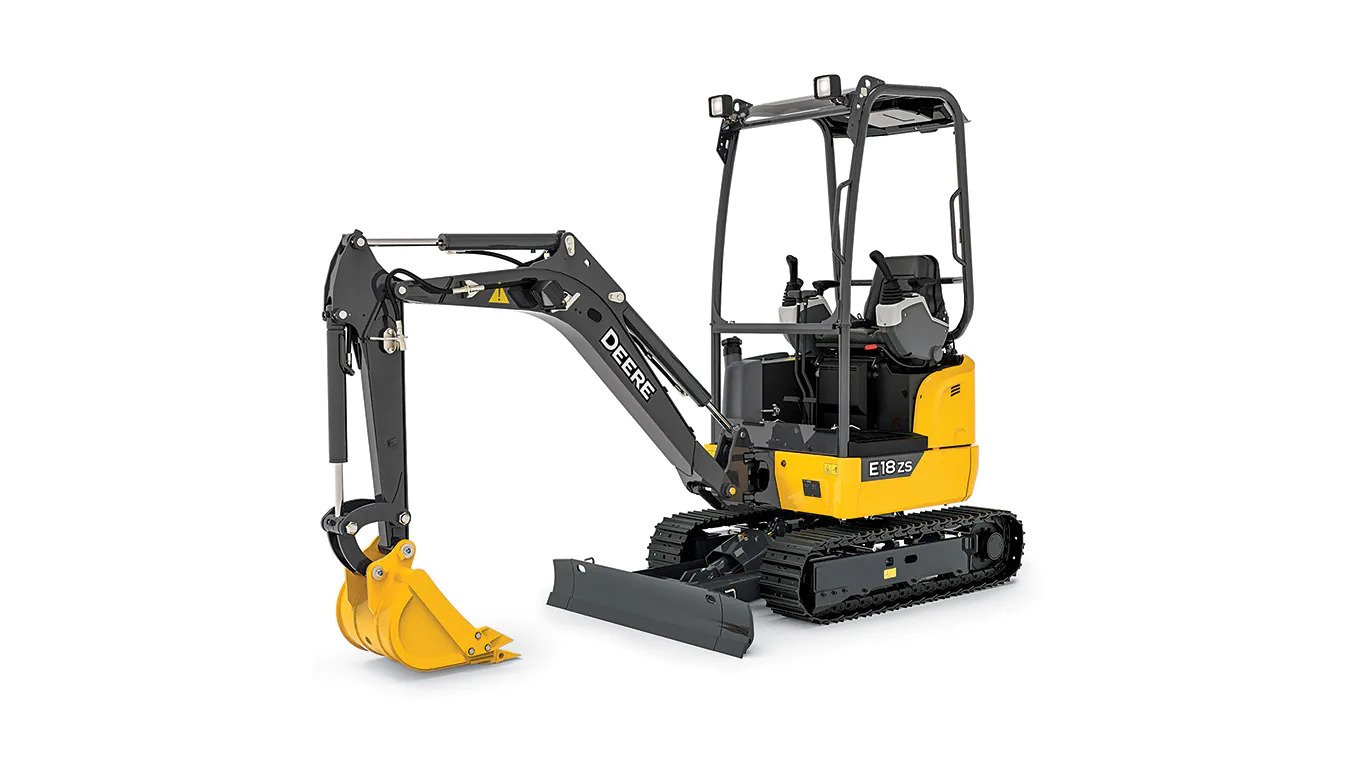

E18ZS John Deere Construction excavator specs & dimensions (2022 - 2026)

John Deere Construction E18ZS is a mini excavator manufactured since 2022. It has a weight of 1.836 tons and a track width of 230 …

John Deere Construction E18ZS is a mini excavator manufactured since 2022. It has a weight of 1.836 tons and a track width of 230 mm. The transport dimensions are 3.584 meters in length, 0.98 meters in width, and 2.362 meters in height. The machine features a tear-out force of 18.7 kN, a dredging depth of 2.32 meters, and a maximum horizontal reach of 3.899 meters. The bucket width is 0.42 meters with a capacity of 0.05 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators John Deere Construction E18ZS

Technical specs - E18ZS John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.836 t
Transport length
3.584 m
Transport width
0.98 m
Transport height
2.362 m
Bucket capacity
0.05 m³
Bucket capacity max.
0.05 m³
Bucket width
0.42 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.899 m
Dredging depth
2.32 m
Tear-out force
18.7 kN
Model series
ZS
Engine manuf.
Yanmar
Engine type
3TNV76-SNSE 12
Engine power
13.8 kW
Displacement
1.116 l
Revolutions at max torque
1600 rpm
Max. torque
65.8 Nm
No. of cylinders
3
Emission level
EU Stage IIIA

More technical details, like: bucket capacity min., standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction E18ZS FAQ

When was the John Deere Construction E18ZS manufactured?

The John Deere Construction E18ZS was first produced in 2022.

How much does the John Deere Construction E18ZS weigh?

The John Deere Construction E18ZS weighs 1.84 tons.

What are the transport dimensions of the John Deere Construction E18ZS mini excavator?

The John Deere Construction E18ZS has transport dimensions of 3.58 meters in length, 0.98 meters in width, and 2.36 meters in height.

What is the track width of the John Deere Construction E18ZS mini excavator?

The John Deere Construction E18ZS mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the John Deere Construction E18ZS mini excavator?

The John Deere Construction E18ZS mini excavator has a dredging depth of 2.32 meters and a maximum horizontal reach of 3.899 meters.

What is the tear-out force of the John Deere Construction E18ZS mini excavator?

The John Deere Construction E18ZS mini excavator has a tear-out force of 18.7 kN.

What are the bucket specifications of the John Deere Construction E18ZS mini excavator?

The John Deere Construction E18ZS mini excavator has a bucket capacity of 0.05 cubic meters, a maximum bucket capacity of 0.05 cubic meters, and a bucket width of 0.42 meters.

What operator safety features does the John Deere Construction E18ZS have?

The John Deere Construction E18ZS has a canopy for driver protection.
