35N-3 IHI excavator specs & dimensions (2012 - 2016)

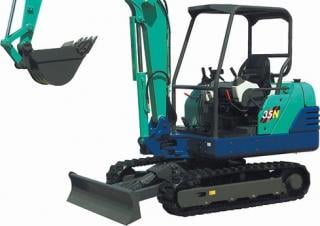

IHI 35N-3 is a mini excavator manufactured from 2012 to 2016, with a weight of 3.619 tons. It has a transport length of 4 meters, …

IHI 35N-3 is a mini excavator manufactured from 2012 to 2016, with a weight of 3.619 tons. It has a transport length of 4 meters, a transport width of 1 meter, and a transport height of 2 meters. The machine features a tear-out force of 34 kN and is equipped with a blade.

Mini Excavators IHI 35N-3

Technical specs - 35N-3 IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.62 t
Transport length
4 m
Transport width
1 m
Transport height
2 m
Bucket capacity
0.11 m³
Bucket width
0.61 m
Driver protection
Kb
Max. Reach horizontal
5.08 m
Dredging depth
3.15 m
Tear-out force
34 kN
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
19.9 kW
Emission level
Tier IV/Stage IIIA

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

IHI 35N-3 FAQ

When was the IHI 35N-3 manufactured?

The IHI 35N-3 was manufactured from 2012 to 2016.

How much does the IHI 35N-3 mini excavator weigh?

The IHI 35N-3 mini excavator weighs 3.62 tons.

What are the transport dimensions of the IHI 35N-3 mini excavator?

The IHI 35N-3 has a transport length of 4 meters, a transport width of 1 meter, and a transport height of 2 meters.

What is the excavation performance of the IHI 35N-3 mini excavator?

The IHI 35N-3 mini excavator has a dredging depth of 3.15 meters and a maximum horizontal reach of 5.08 meters.

What is the tear-out force of the IHI 35N-3 mini excavator?

The IHI 35N-3 mini excavator has a tear-out force of 34 kN.

What are the specifications of the primary work tool bucket on the IHI 35N-3 mini excavator?

The primary work tool bucket of the IHI 35N-3 has a capacity of 0.11 cubic meters and a width of 0.61 meters.

What operator safety features does the IHI 35N-3 have?

The IHI 35N-3 has a cabin for driver protection.

How much is a IHI 35N-3 Mini excavator (2012u20132016) worth?

The residual value of the IHI 35N-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

IHI 35N-3 overview

Dimensions and weight

Cabin
A Max. digging radius16’8”
B Max. digging depth10’4”
C Max. digging height16’2”
D Max. dumping height11’
E Max. vertical digging depth8’
F Min. front turning radius6’4”
At right boom swing5’

Tables

ModelYANMAR 3TNV88
Rated output26.7 hp/2300 rpm
Fuel tank capacity13 gal
TypeBoom offset with hydraulic cylinder
Swing angle (L/R)50° / 90°
