R35Z-9A Hyundai excavator specs & dimensions (2021 - 2026)

Auto shift down system
When working under heavy load or when climbing the machine, travel motor speed shifts automatically to first gear. This increases tractive effort and the travel motor switches back into fast gear automatically after reducing loads. 5000 (hr) 2000 (hr) 1000 (hr) 250 (hr) 9 Model 7 Model 8 Model 9 Model

Walk-around Productivity & Efficiency
Powerful & fuel efficient Yanmar engine, Advanced hydraulic system, Variable swing boom, Engine Automaticidling System, Angle dozer blade.
Engine
The Yanmar 3TNV88F engine represents the most compact multi-cylinder fluid cooled industrial diesel engine while ensuring compliance with Stage V strict European emission regulations without additional aftertreatment tools. This powerful engine provides improved reliability and simplified maintenance. The semi-flat valve cover and Mo52 coated pistons additionally reduce noise levels and vibration.
Auto-idle function
The auto-idle feature, which comes standard on the R35Z-9A, improves fuel efficiency by automatically reducing engine rpm when the operator does not use the control levers.
Monitor
The R35Z-9A monitoring system supplies the operator with machine status information, including: engine oil pressure light, battery charge lamp, engine coolant temperature and a fuel gauge.
Fuel filters
Hyundai fuel filters provide the right level of filtration to keep your engine clean. They are designed to meet and exceed the requirements of the engine manufacturer for water separation and dirt filtration; thus, life-longness of your engine is extended.

Serviceability & Durability
Easy access to components, wide open engine hood, central lubrication system, centralized grease points, counterweight back throws, Long Life Shims, bushings and hydraulic oil.
Advanced hydraulic system
To achieve optimum precision, the hydraulic system provides the operator with super fine touch and easy controllability.
Long-life components
The R35Z-9A is expanded with a range of components extending service intervals, minimizing operating costs and reducing machine downtime. These include bushings for extended greasing intervals (250 hours), polymer shims for improved wear resistance and reduced noise, extended-life hydraulic filters (1000 hours), durable hydraulic oil (5000 hours), more efficient cooling systems and integrated pre

Zero tail swing

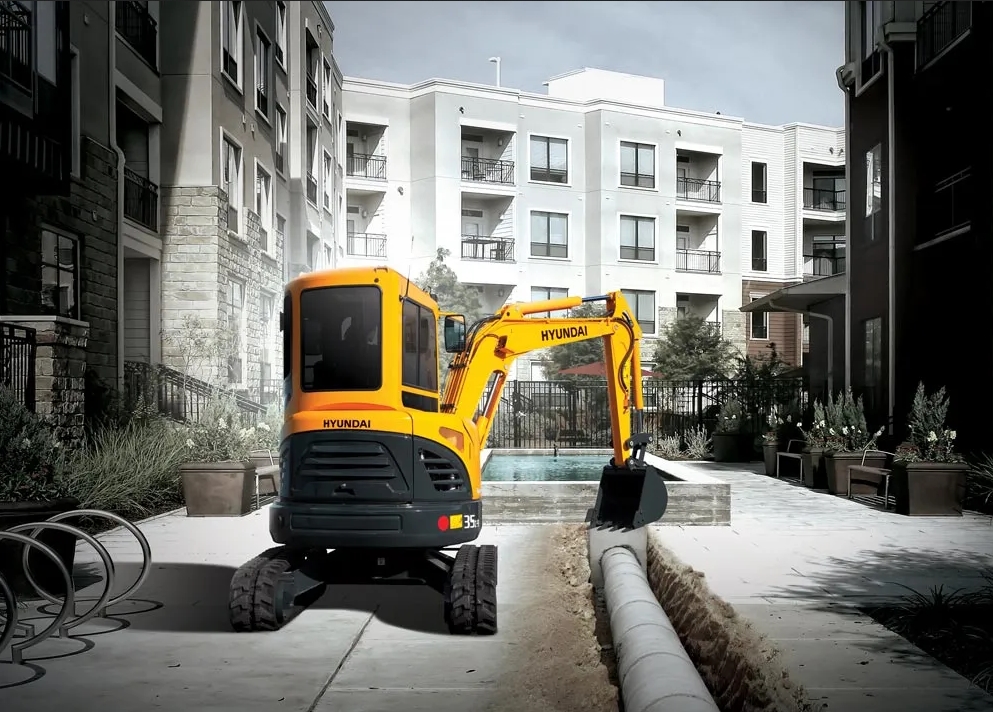

The short tail swing radius of the R35Z-9A offers easy and efficient operation in any limited work environment.

Selector valve for single or double acting pipe
The double-acting pipe on the front of the fuel tank ensures easy access and control. Lever direction: vertical single-acting piping (broke break); horizontal two-acting piping (clamshell)
Undercarriage parts
Hyundai track components deliver exceptional travel performances. Materials used comply with stringent quality control measures to ensure the highest level of reliability.

Operator comfort
Spacious cab with 360 view, Adjustable suspension seat, color display, Adjustable wrist rests, Ergonomic joystick handling, audio system with USB and MP3 radio, Practical storage compartments, heating and air conditioning, canopy window, sliding folding front windshield, easily accessible tiltable arm console.
Sliding front window
To improve ventilation and visibility (canopy type only), a sliding folding window is opened easily and stored safely in an open position.
Pedals
All pedals are hinged for additional floor areas. Foot rest, attachment pedal, left and right travel pedals as well as the boom swing pedal are arranged for convenient access.
Proportional Control Switch for better
speed control (OPTION), Enlarge the Operation Convenience In a 9A Series cab, you can easily adjust the seat and wrist rest settings to your preferred operating condition. The left and right control levers are ergonomically located for convenient access. A safety lock system is designed to prevent exiting the cabin while hydraulic controls are alive.
Storage compartments
Two cup holders are integrated into the right console for large and small storage of drinks. An additional storage box with key lock is accessible under the operator
Tiltable left-side console
A left-hand side control console tilted upwards ensures easier entry and exit from the cab.
Excellent visibility
The cab has been designed for more space, a wider field of vision and operator comfort. Special attention was paid to creating a clear, open and convenient interior with ample view on the machine environment and job at hand. Each element is precisely balanced to place the operator in perfect position so that he can work safely and safely.
Air cleaner
The easy-to-change plastic air cleaner allows faster, more comfortable maintenance and servicing.
Easy access
All R35Z-9A doors, covers and hoods have been built for complete open access, making regular service and maintenance easy and convenient.
Hyundai warranties
Our warranties are designed to give you the coverage you need to build your business with confidence and peace of mind.

Safety
Rugged structure, ROPS/TOPS/FOPS cabin, 360 view from cab, extra counterweight for increased stability, safety valves on arm, boom and blade cylinders, anti-theft device.
Cabin structure
The cab structure is strong, stable and certified to the safety standards ISO 12117-2 ROPS (Roll-Over Protective Structures), ISO 12117 TOPS (Tip-Over Protective Structures) and ISO 10262 FOPS (Falling Object Protective Structures) providing greater security and improved visibility. Structural integrity has been tested with the aid of FEM (Finite Elements Method) analysis and long term durability checks.
Cylinder protection
Additional protection is provided by standard steel plate covers on boom and dozer blade cylinders. They protect the cylinder rod and housing from damage caused by obstacles or falling debris. Protective plates extend component life, reducing maintenance costs.
