H36CR Hanix excavator specs & dimensions (2019 - 2026)

Hanix H36CR is a mini excavator manufactured since 2019, with a weight of 3.62 tons. It features a track width of 300 mm, a transp…

Hanix H36CR is a mini excavator manufactured since 2019, with a weight of 3.62 tons. It features a track width of 300 mm, a transport length of 4.685 meters, a transport width of 1.7 meters, and a transport height of 2.47 meters. The machine has a tear-out force of 30.1 kN, a dredging depth of 3.13 meters, and a maximum horizontal reach of 5.1 meters. The bucket width is 0.59 meters with a capacity of 0.11 cubic meters. Special equipment includes air conditioning and a blade.

H36CR

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - H36CR Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.62 t

Transport length: 4.685 m

Transport width: 1.7 m

Transport height: 2.47 m

Bucket capacity: 0.11 m³

Bucket width: 0.59 m

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 5.1 m

Dredging depth: 3.13 m

Tear-out force: 30.1 kN

Model series: H

Engine manuf.: Mitsubishi

Engine type: S3L2

Engine power: 19.9 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Hanix H36CR FAQ

When was the Hanix H36CR manufactured?

The Hanix H36CR was first produced in 2019.

How much does the Hanix H36CR weigh?

The Hanix H36CR weighs 3.62 tons.

What are the transport dimensions of the Hanix H36CR mini excavator?

The Hanix H36CR has a transport length of 4.69 meters, a transport width of 1.7 meters, and a transport height of 2.47 meters.

What is the track width of the Hanix H36CR mini excavator?

The Hanix H36CR mini excavator has a track width of 300 mm.

What are the excavation specifications of the Hanix H36CR mini excavator?

The Hanix H36CR mini excavator has a dredging depth of 3.13 meters and a maximum horizontal reach of 5.1 meters.

What is the tear-out force of the Hanix H36CR mini excavator?

The Hanix H36CR mini excavator has a tear-out force of 30.1 kN.

What are the bucket specifications of the Hanix H36CR mini excavator?

The Hanix H36CR mini excavator has a bucket capacity of 0.11 cubic meters and a bucket width of 0.59 meters.

What operator protection features does the Hanix H36CR have?

The Hanix H36CR has a cabin for driver protection.

How much is a Hanix H36CR Mini excavator (2019u20132025) worth?

The residual value of the Hanix H36CR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hanix H36CR overview

Hanix H36DR features overview

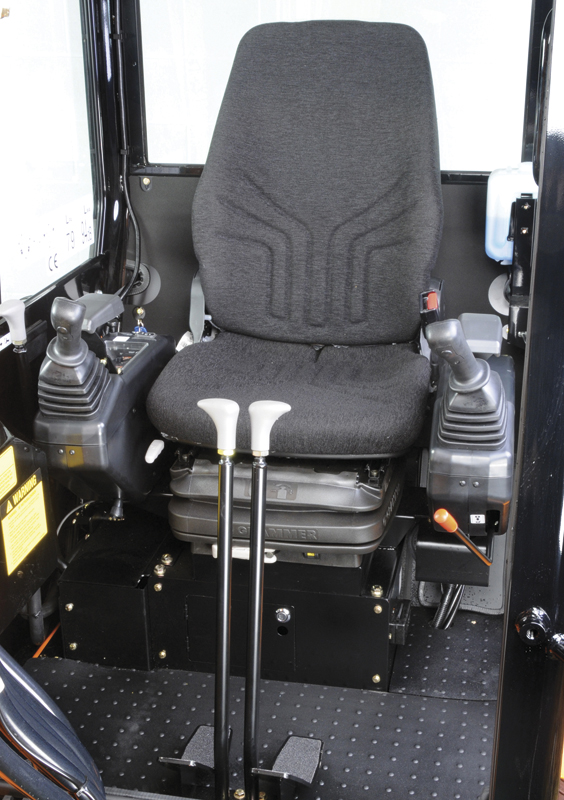

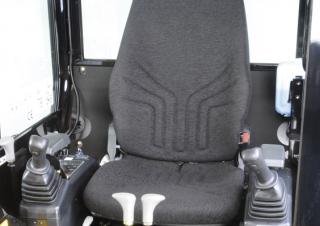

Ease of operation
Pilot operated hydraulic controls throughout the aid smooth and precise operation. Excellent all-round visibility. Thumb actuated boom oscillation as well as auxiliary hydraulic functions integrated into joysticks. Foot pedals for free handed travel function.
Safety
The lever lock prevents inadvertent hydraulic operation and starting of the engine. Battery isolator switch. Emergency boom drain valve. Auxiliary flow socket for beacon. TOPS & FOPS cab. Retractable seat belt. External mirrors. Compact zero tail design and excellent all-round visibility help reduce contact risk with objects and personnel.

Engine / Driveline and transmission

Serviceability

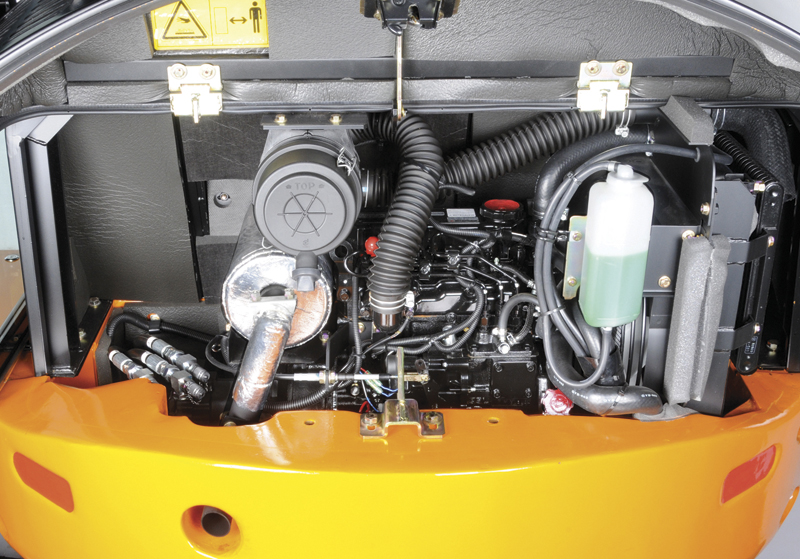

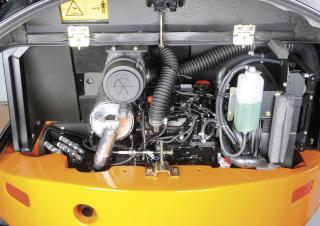

Large engine canopy allows easy access for daily checks. Large easily removable service covers give access to more involved maintenance tasks. 2-piece dozer hoses allow light and cost-effective replacement when damage occurs. Bushing boom bracket and rotary table enable cost effective replacement of wear parts. factory adjusted hydraulic test points facilitate fault diagnosis if necessary. Reliable and efficient technology without requiring electronic diagnostics.

Dimensions and weight

MACHINE SPECIFICATIONS
Machine Weight - Cabin Rubber Tracks	kg	3620
Dimensions (Length/ Width / Height)	mm	4685 / 1700 / 2470
Dozer Blade Dimensions (Width / Height)	mm	1700 / 370
Noise Level (LwA / LpA)	dB(A)	94 / 79
Ground Pressure - Cabin Rubber Tracks	kPa / psi	33.7 / 4.88
ENGINE
Make / Model / Cylinders / Displacement (cc)		Mitsubishi / S3L2 / 3 / 1318
Rated Power	kW / ps	19.9 / 27 @ 2400 rpm
Maximum Torque	Nm	85
WORKING RANGE
Maximum Digging Depth	mm	3130
Maximum Digging Height	mm	4660
Maximum Dumping Height	mm	3230
Maximum Vertical Digging Depth	mm	2185
Maximum Digging Radius	mm	5250
Maximum Reach at Ground	mm	5105
Minimum Turning Radius Front	mm	2325
Minimum Turning Radius Swing	mm	1840
Rear Turning Radius	mm	885
Boom Swing Angle (L / R)	degrees	L75 / R55
PERFORMANCE
Maximum Digging Power (Bucket / Arm)	kN	30.1 / 18.7
Travel Speed (Low / High)	km/h	2.3 / 4.0
Slew Speed	rpm	8
Gradeability	degrees	30
HYDRAULIC SYSTEM
Hydraulic Pump Types		Piston x 2 + Gear x 2
Hydraulic Pump Flows	litres / min	42 x 2 + 25.2 + 10.8
Auxiliary Hydraulic Flow (PTO)	litres / min	65
Relief Pressures	Mpa	20.6 x 2 + 17.2
FLUID CAPACITIES
Fuel Tank	litres	41
Hydraulic Tank	litres	42
Engine Oil	litres	4.5
Cooling System	litres	5.5
Travel Motor Reduction Gearbox	litres	0.75

Other features

Versatility
The compact zero tail design maximizes performance on space restricted jobsites. Two-speed travel and straight line tracking. 2-way auxiliary hydraulic service for operating a variety of attachments such as breakers and trenches. Spacious comfortable cab with adjustable suspension seat and heater to operate in any weather.
