503Z Gehl excavator specs & dimensions (2004 - 2026)

Gehl 503Z is a mini excavator manufactured since 2004, with a weight of 4 tons. It has a transport length of 5 meters, a transport…

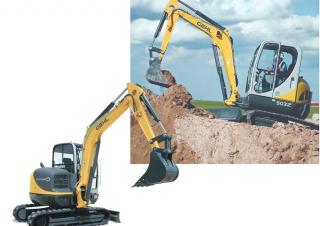

Gehl 503Z is a mini excavator manufactured since 2004, with a weight of 4 tons. It has a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters. The bucket width is 0.838 meters. This model comes equipped with air conditioning, a blade, and rubber tracks.

Mini Excavators Gehl 503Z

Technical specs - 503Z Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4 t
Transport length
5 m
Transport width
1 m
Transport height
2 m
Bucket width
0.838 m
Max. Reach horizontal
6.3 m
Dredging depth
3.87 m
Engine manuf.
Yanmar
Engine type
4TNV88-PNS
Engine power
28.2 kW
Displacement
2.189 l
Revolutions at max torque
2400 rpm
No. of cylinders
4
Emission level
Tier II

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, tear-out force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Gehl 503Z FAQ

When was the Gehl 503Z manufactured?

The Gehl 503Z was first produced in 2004.

How much does the Gehl 503Z mini excavator weigh?

The Gehl 503Z mini excavator weighs 4 tons.

What are the transport dimensions of the Gehl 503Z mini excavator?

The Gehl 503Z has a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters.

What are the excavation performance specifications of the Gehl 503Z mini excavator?

The Gehl 503Z mini excavator has a dredging depth of 3.87 meters and a maximum horizontal reach of 6.3 meters.

What is the bucket width of the Gehl 503Z mini excavator?

The bucket width of the Gehl 503Z mini excavator is 0.838 meters.

How much is a Gehl 503Z Mini excavator (2004u20132025) worth?

The residual value of the Gehl 503Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Gehl 503Z overview

Dimensions and weight

Model4TNV88-PNS EPA TIER II"
Type4-cyl. water-cooled diesel
Displacement (cc)134 cu. in. (2189)
Power (kW) @ rpm38 hp (28.2) @ 2400 rpm
Battery (Ah)12-V (88)
Fuel Tank (L)21.9 gal (83)
HYDRAULIC SYSTEM
Pumpstwo variable capacity + two gear pumps
Flow Rate (L/min)2@ 15.0 gpm (57) + 10.9 gpm (41.4) + 3.0 gpm (11.6)
Working Pressure (bar)3481 psi (240)
Swing System Pressure (bar)3118 psi (215)
Oil Coolerstandard
Hydraulic Tank (L)21.1 gal (80)
UNDERCARRIAGE AND SLEWING SYSTEM
Travel Speed - dual (km/h)1.67 mph (2.7) 2.85 mph (4.6)"
Gradability30° = 58%
Rubber Track Width (mm) (A)15.7” (400)
No. of Track Rollers4 on each side
Tracks Tensionhydraulic
Undercarriage Length (mm) (C)8’2” (2500)
Sprocket Center (mm)6’7” (2000)
Ground Clearance (mm)12” (305)
Ground Pressure - average (kg/cm2 )4.0 psi (0.28)
Slew Speed8.7 rpm
GENERAL SPECIFICATIONS
Operating Weight (kg)10582 lbs (4800)"
Dimensions (mm)
Height / Width (D/E)8’5” (2570) / 6’6” (1990)
Transport Length (F)18’4” (5600)
Arm Length (mm)4’9” (1450)
w/long arm - optional5’9” (1750)
Max. Digging Depth (mm) (G)11’9” (3570)
w/long arm (G*)12’8” (3870)
Max. Digging Height (mm) (H)17’5” (5320)
w/long arm (H*)18’1” (5500)
Max. Vertical Digging Depth (mm) (I)8’7” (2630)
w/long arm (I*)9’7” (2915)
Max. Dump Height (mm) (J)12’2” (3720)
w/long arm (J*)12’10” (3900)
Max. Digging Radius (mm) (K)19’9” (6030)
w/long arm (K*)20’8” (6300)
Bucket Dig Force (kN)7599 lbf (33.8)
Arm Force (kN)5980 lbf (26.6)
Min. Tail Swing Radius (mm) (L)3’3” (995)
Min. Front Swing Radius (mm) (M)7’6” (2283)
Swing Angle - left / right (N/O)65°/61°
DOZER BLADE
Dimensions - Width / Height (mm)6’6” (1990) / 15” (380)
Max. Lift - Above / Below Ground (mm) (Q/R)15.2” (385) / 15.4” (390)
GENERAL PURPOSE BUCKET OPTIONS
Width (mm) / Capacity (L)12” (305) / 2.5 cu.ft. (71)
16” (406) / 3.3 cu.ft. (93)
20” (508) / 3.7 cu.ft. (105)
26” (660) / 6.4 cu.ft. (181)
33” (838) / 8.8 cu.ft. (250)

Tables

Pounds (kg)Pounds (kg)Pounds (kg)Pounds (kg)
A B
13'1"""2337 *1786
(4.0 m)(1060)(810)
9'10"""2260 *12902227*1720
(3.0 m)(1025)(585)(1010)(780)
6'7"""2304 *10802612*16093483 *2535
(2.0 m)(1045)(490)(1185)(730)(1580)(1150)
3'3"""2403 *10033120*14774905 *2183
(1.0 m)(1090)(455)(1415)(670)(2225)(990)
02524 *10143428*13785368 *2028
(0 m)(1145)(460)(1555)(625)(2435)(920)
-3'3"""2668 *11353329*13455049*20178973 *3946
(-1.0 m)(1210)(515)(1510)(610)(2290)(915)(4070)(1790)
-6'7"""2767 *15543924*20946614 *4101
(-2.0 m)(1255)(705)(1780)(950)(3000)(1860)
