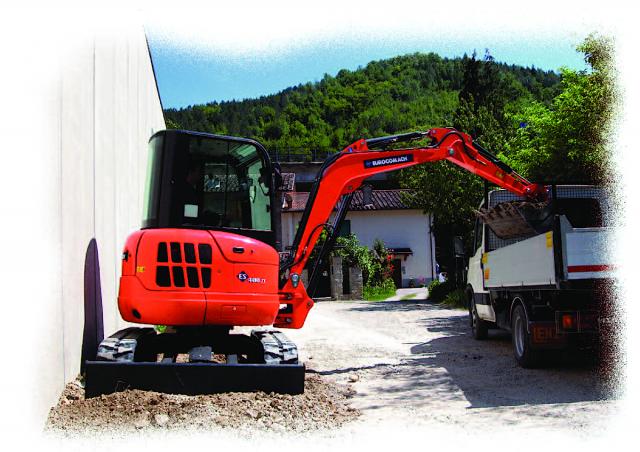

ES 400 ZT Eurocomach excavator specs & dimensions (2006 - 2011)

Innovative design, power, speed and maximum stability even in extreme conditions WITHOUT the application of additional counterweights. From Eurocomach construction quality comes another tangible solution: 3.5 e 4 tonnes zero tail mini digger ES 350 ZT and ES 400 ZT. MINIDIGGER MINIESCAVATORI
Automatic Shift-down
This device allows automatic change from second to first speed when tractive force increases without the operator's intervention.

VERSATILITY / EQUIPMENTS
Availability of various configurations allows each operator to choose the right machine for his own needs: standard or long digging arm (+ 35 cm), rubber or steel tracks (with or without rubber shoe cover) and a very large choice of digging or loading buckets with traditional or fast coupler. The simple or double-acting hydraulic arrangement, a standard unit on all our Eurocomach mini diggers, permits the use of a large range of equipment with different specifications: from demolition hammer to bore, from pliers to grading shovels; everything can be used by simply acting on a switch placed under the footboard. Thanks to an additional hydraulic layout it will also be possible to use the cutter in as correct and functionally as possible.

ES 400 ZT:TOPS (EN 13531) / FOPS (ISO 3449) closed cab with heating system, front wiper and washer,predisposition for stereo installation, rear view mirrors (right and left ).ES 350 ZT:TOPS (ISO 13531) / FOPS (ISO 3449) Canopy, rubber tracks, dozer blade ES 400 ZT 1700 mm ES 350 ZT 1550 mm, Automatic emergency brake on rotation and translation, predisposition for Stereo mounting in the, translation double speed with automatic shifting down (automatic change from 2 to 1 gear increasing traction stress), Digging arm ES 400 ZT 1400 mm, ES 350 ZT 1200 mm, ignition pass key (universal key for all locks of machine), recirculation mirror (right and left), Adjustable seat with safety belt, air dry filter with electric indicator for clogging, service tool compartment, spare part book, application and maintenance booklet as well as tool box, unipolar plug socket on dashboard and top at cabin for flash lights/shocks).
OPTIONAL EQUIPMENTS
ES 350 ZT:TOPS ( EN 13531 ) / FOPS ( ISO 3449 ) closed cab with heating system, front windscreen wiper and washer, predisposition for stereo installation, rear view mirrors ( right and left). ES 400 ZT:TOPS ( ISO 13531 ) / FOPS ( ISO 3449 ) canopy, steel tracks, long lift arm, air conditioner, safety valves on the first second arm and blade, Stereo system, hydraulic circuit High flow for grass cutters, grass planers (width mm 800 and mm 10, working lights and rotating lamp on the cabin, certifi ed lifting hook with safety valves on the first and second arm, mechanical or hydraulic quick coupler (for buckets or fittings), Buckets from 300 mm to 1000 mm, Ditch cleaning bucket of 1000 mm to 1400 mm (both fixed or pivoted), trapezoidal shovel, Kg. 95/160 Hydraulic hammer with bits, hydraulian-toothe for logs (Fix or with 360 hydraulic rotor), hydraulic bore with Bit diameter 150 mm up to max.

COMFORT / VISIBILITY
The new generation of Eurocomach zero tail mini diggers have been studied and manufactured to ensure operator satisfaction. The cab is spacious and the operator seat is wide and comfortable. Special attention has been given to the interior of the cabin; plates in ABS are located on all internal surfaces, the second speed travel system is placed on the joystick (and not pedal) to leave more space on the footboard, the seat is adjustable, the front glass has given an opening mechanism made of gas springs, there is an efficient heating and ventilation system and if desired air conditioning for better thermal comfort throughout the year. To provide the best access to the machine in any situation, the door has been designed with a book opening. When the operator needs to keep the door open, it can be attached to the anchor points so that it can be held outwards.

MAINTENANCE/ACCES TO SUPPLIES
All there is to do is open the rear plate and everything is within easy reach to perform the simple but important maintenance process without any difficulty or wastage of time (all filters can be easily reached). Fuel and hydraulic oil tanks have antivandalism lock-up and are protected by the side hood in a safe and readily accessible position.
