ES 40.2 ZT Eurocomach excavator specs & dimensions (2014 - 2020)

Eurocomach ES 40.2 ZT is a mini excavator manufactured from 2014 to 2020. It has a weight of 3.8 tons and a track width of 350 mm.…

Eurocomach ES 40.2 ZT is a mini excavator manufactured from 2014 to 2020. It has a weight of 3.8 tons and a track width of 350 mm. The transport dimensions are 4.555 meters in length, 1.7 meters in width, and 2.535 meters in height. The machine features a tear-out force of 32 kN, a dredging depth of 3.2 meters, and a maximum horizontal reach of 5.41 meters. It is equipped with a blade and rubber tracks.

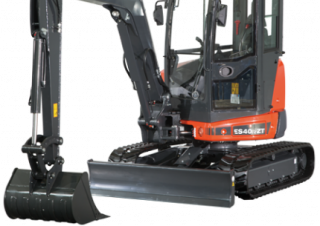

Mini Excavators Eurocomach ES 40.2 ZT

Technical specs - ES 40.2 ZT Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.8 t
Transport length
4.555 m
Transport width
1.7 m
Transport height
2.535 m
Track width
350 mm
Driver protection
KbR
Max. Reach horizontal
5.41 m
Dredging depth
3.2 m
Tear-out force
32 kN
Model series
MME
Engine manuf.
Kubota
Engine type
D1803M
Engine power
28.3 kW
Displacement
1.826 l
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach ES 40.2 ZT FAQ

When was the Eurocomach ES 40.2 ZT manufactured?

The Eurocomach ES 40.2 ZT was manufactured from 2014 to 2020.

How much does the Eurocomach ES 40.2 ZT weigh?

The Eurocomach ES 40.2 ZT weighs 3.8 tons.

What are the transport dimensions of the Eurocomach ES 40.2 ZT mini excavator?

The Eurocomach ES 40.2 ZT has a transport length of 4.56 meters, a transport width of 1.7 meters, and a transport height of 2.54 meters.

What is the track width of the Eurocomach ES 40.2 ZT mini excavator?

The Eurocomach ES 40.2 ZT mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the Eurocomach ES 40.2 ZT?

The Eurocomach ES 40.2 ZT has a dredging depth of 3.2 meters and a maximum horizontal reach of 5.41 meters.

What is the tear-out force of the Eurocomach ES 40.2 ZT mini excavator?

The Eurocomach ES 40.2 ZT mini excavator has a tear-out force of 32 kN.

What operator safety and support features does the Eurocomach ES 40.2 ZT have?

The Eurocomach ES 40.2 ZT is equipped with a cabin that includes ROPS for driver protection.
