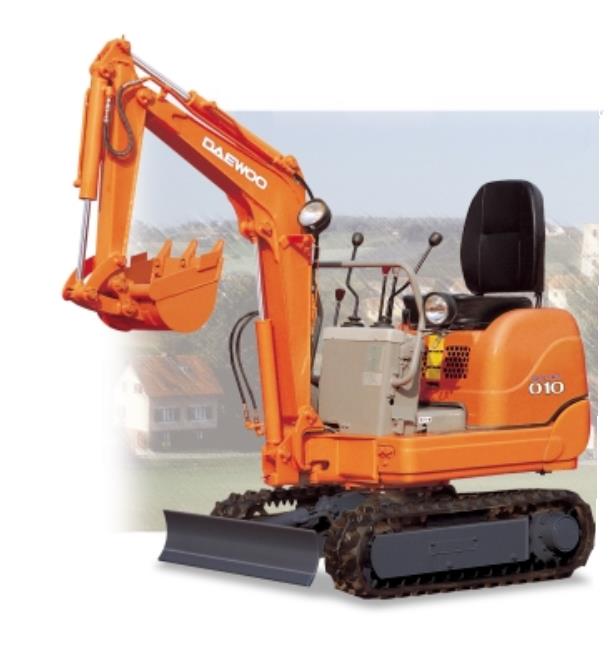

Solar 010 Doosan excavator specs & dimensions (1998 - 2007)

Doosan Solar 010 is a mini excavator manufactured from 1998 to 2007. It has a weight of 0.77 tons and a track width of 180 mm. The…

Doosan Solar 010 is a mini excavator manufactured from 1998 to 2007. It has a weight of 0.77 tons and a track width of 180 mm. The transport dimensions are 2.8 meters in length, 1.1 meters in width, and 1.52 meters in height. The maximum horizontal reach is 2.825 meters. The bucket width is 0.355 meters with a maximum bucket capacity of 0.02 cubic meters. Special equipment includes a blade and rubber tracks.

Solar 010

Years of manufacture: 1998—2007

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Solar 010 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.77 t

Transport length: 2.8 m

Transport width: 1.1 m

Transport height: 1.52 m

Bucket capacity max.: 0.02 m³

Bucket width: 0.355 m

Track width: 180 mm

Driver protection: O

Max. Reach horizontal: 2.825 m

Dredging depth: 1.55 m

Model series: Solar

Engine manuf.: Yanmar

Engine type: 2TNE68DB

Engine power: 7 kW

Displacement: 0.523 l

Revolutions at max torque: 2550 rpm

More technical details, like: bucket capacity, bucket capacity min., standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan Solar 010 FAQ

When was the Doosan Solar 010 manufactured?

The Doosan Solar 010 was manufactured from 1998 to 2007.

How much does the Doosan Solar 010 weigh?

The Doosan Solar 010 weighs 0.77 tons.

What are the transport dimensions of the Doosan Solar 010 mini excavator?

The Doosan Solar 010 has transport dimensions of 2.8 meters in length, 1.1 meters in width, and 1.52 meters in height.

What is the track width of the Doosan Solar 010 mini excavator's undercarriage?

The Doosan Solar 010 mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Doosan Solar 010 mini excavator?

The Doosan Solar 010 mini excavator has a dredging depth of 1.55 meters and a maximum horizontal reach of 2.825 meters.

What are the bucket specifications of the Doosan Solar 010 mini excavator?

The Doosan Solar 010 has a maximum bucket capacity of 0.02 cubic meters and a bucket width of 0.355 meters.

What operator safety and support features does the Doosan Solar 010 have?

The Doosan Solar 010 does not have driver protection features.

How much is a Doosan Solar 010 Mini excavator (1998u20132007) worth?

The residual value of the Doosan Solar 010 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan Solar 010 overview

Dimensions and weight

MODEL	UNIT	SOLAR 010
Operating weight(Rubber shoe model)	kg (lb)	770 (1	697)"
Bucket
Capacity	PCSA CECE	m3 (cu.yd)	0.026 (0.03)
0.02 (0.026)
Width(with cutter/without cutter)	mm (ft.in)	390 / 355 (1'3""/1'2"")"
Dimension
Length xWidth x Height	mm (ft.in)	2	800x810(1	100)x1	520 (9'2""x2'8""(3'7"")x4'12"")"
Engine
Model		YANMAR 2 TNE 68-DB
Displacement(Total dis. volume)	cc (gallon)	523 (0.14)
Rated power/R. P. M.	ps/rpm(kW/rpm)	9.5/ 2	550 ( 7/ 2	550)"
Combustion chamber type		Swirl Type
Working Range
(A) Max. digging depth	mm (ft.in)	1	550 (5'1"")"
(B) Max. cutting height	mm (ft.in)	2	825 (9'4"")"
(C) Max. dumping height	mm (ft.in)	2	010 (6'8"")"
(D) Max. digging radius	mm (ft.in)	2	800 (9'2"")"
Rear-and swing radius	mm (ft.in)	800 (2'7"")"
Boom swing angle (L/R)		degree	90/ 90
Performance
Max.digging force	Bucket	kgf (lb)	826 (1	821)"
Arm	kgf (lb)	720 (1	587)"
Traveling speed		km/h (m/h)	1.9 (1.18)
Swing speed		rpm	9.1
Hydraulics

Tables

Pump	Type		Gear Pump
Max. flow rate		l/min(gallon)	2 10 (2.6) ×
Main relief set pressure		kg/cm2 (psi)	150 (2	135)"

Lever control type		Link Type (lever)
Lever pattern		ISO
